3. Menu Operation
3 – 265 Operating Instructions – Rev. 1 / 7.2002

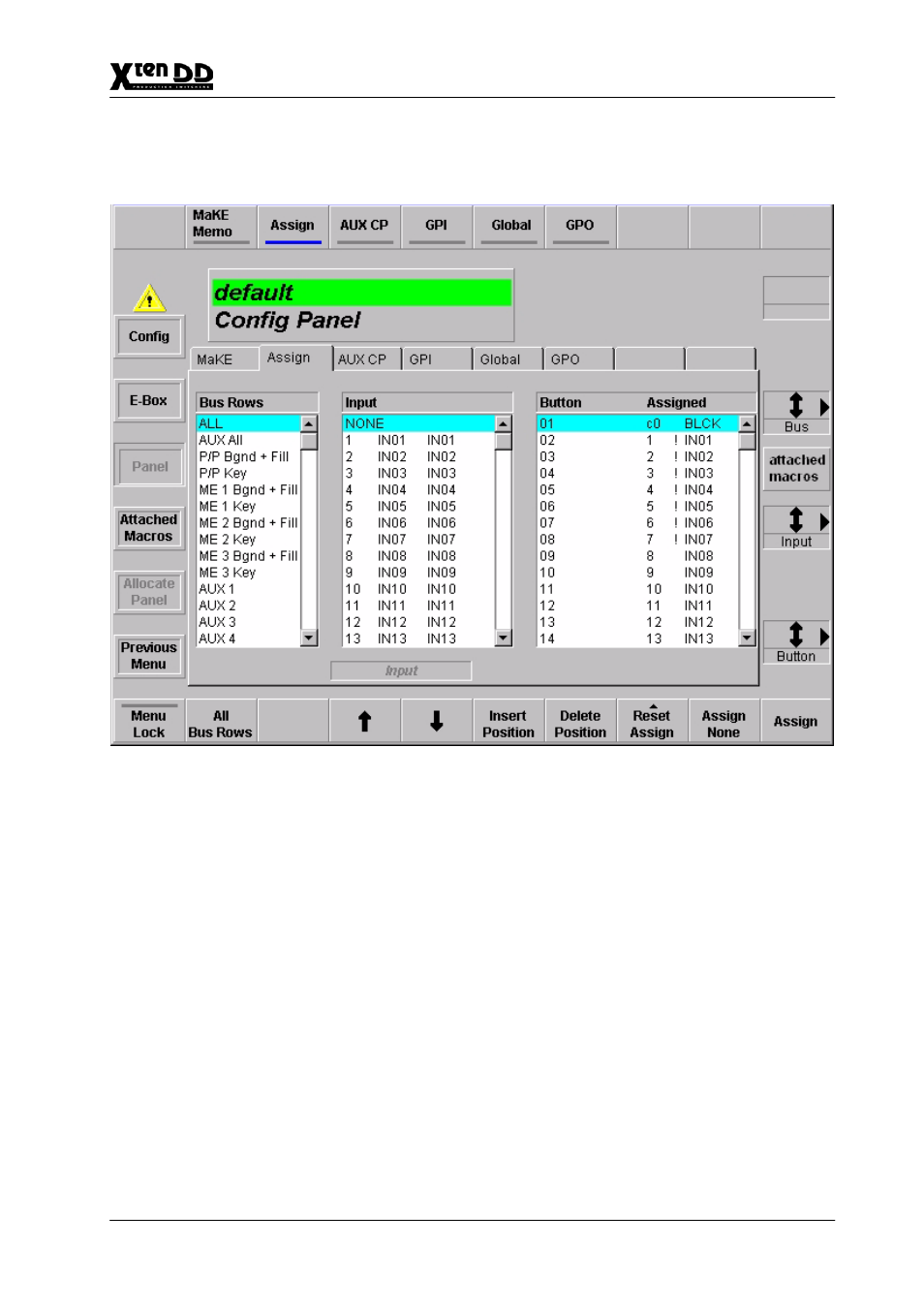

Index card for Input Assignment. The menu is selectabel only when a control panel
is attached. Only a user with permit ”APPLICATION MODIFY” can make changes.
Pre-selects the panel’s bus rows for which the Input Assignment should be
changed.
Selectable are : ALL (= all bus rows on the panel),
P/P-Bgnd + Fill,
P/P-Key,
M/E 1 Bgnd + Fill,
M/E 1 Key,
M/E 2 Bgnd + Fill,
M/E 2 Key,
M/E 3 Bgnd + Fill,
M/E 3 Key,
AUX All,
AUX 1 ... AUX 20
Video Store
Mont Proc 1 ... 2
Mask Bus 1 ... 3
Note: Extern AUX is NOT selectable.
Assign
Box Bus Rows
