2.12 MASKS PANEL (ONLY RPD35-4 PANEL)
The provide extensive masking capabilities which enable the operator to
correct even difficult pictures. For the keyers, square masks are available. As an
alternative, also the wipe patterns of a wipe generator may be used for masking.
The volatile masks store (one store for each mixing level) offers new ways of mask-
ing. A key signal or a pattern signal may be stored.
The PaintModeMasking feature permits the creation of masks which are perfectly
adapted to the individual requirements.

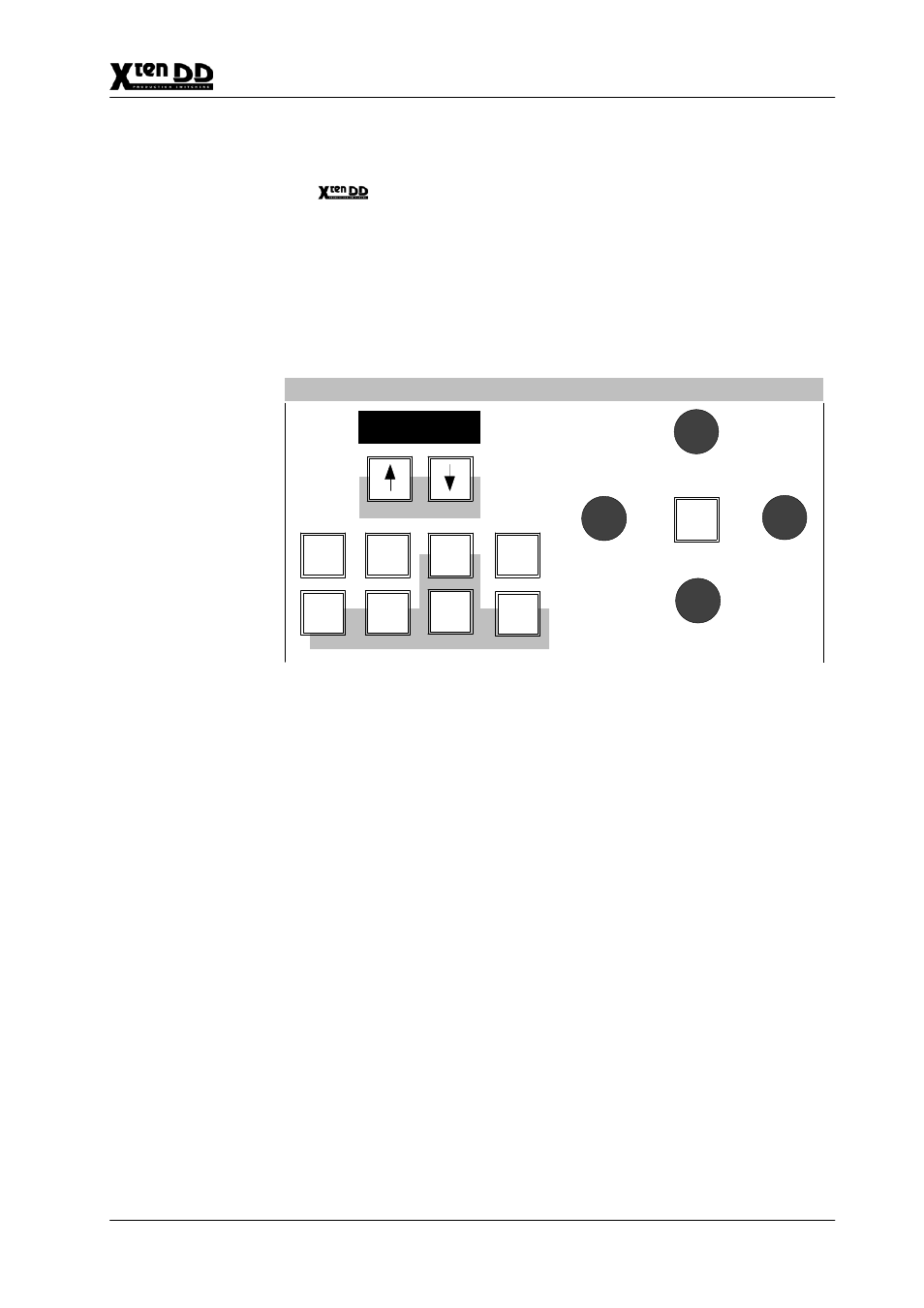

0 1 2 3 4 5 6 7
Top/gain
Bottom/clip
Left Right
Masks
Mask
reset
Forc
FGND
Mask
Inv
Mask
PVW
Bus
Pattn
1
Box Store
Pattn
2
Delegation
↑ ↓
The delegation buttons permit delegating the Masks panel to another keyer if you
want to change the keyer proposed by the automatic delegation system.
The Pattn1, Pattn2, Box, and Store buttons serve to select the type of mask to be
used for masking.
