3. Menu Operation
3 – 241 Operating Instructions – Rev. 1 / 7.2002

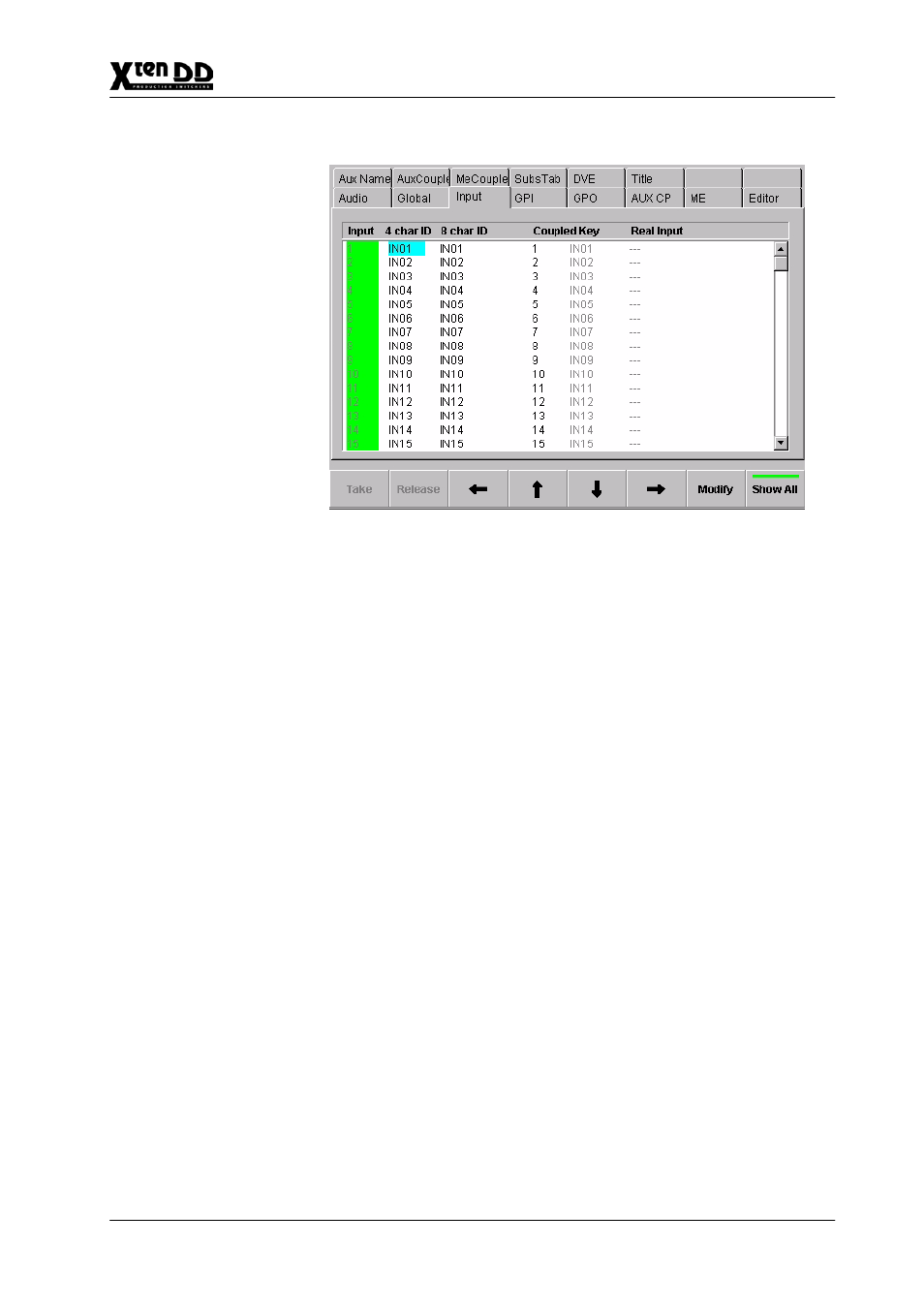

Index card for input settings
Entries belonging to the own application are marked with a green background, en-
tries belonging to other applications are marked with a yellow background.
Take Takes the input source selected with the cursor to the own
application.
Release Releases the input source selected with the cursor from the
own application.
Show All In the on-state, all input sources are displayed. In the off-state only
the own (green marked) inputs are displayed.
Coupled Key Set all coupled keys to Default (=self) or White.
Input
