2. Panel Operation
2 – 23 Operating Instructions – Rev. 1 / 7.2002
2.6.1 TRANSITION FUNCTIONS

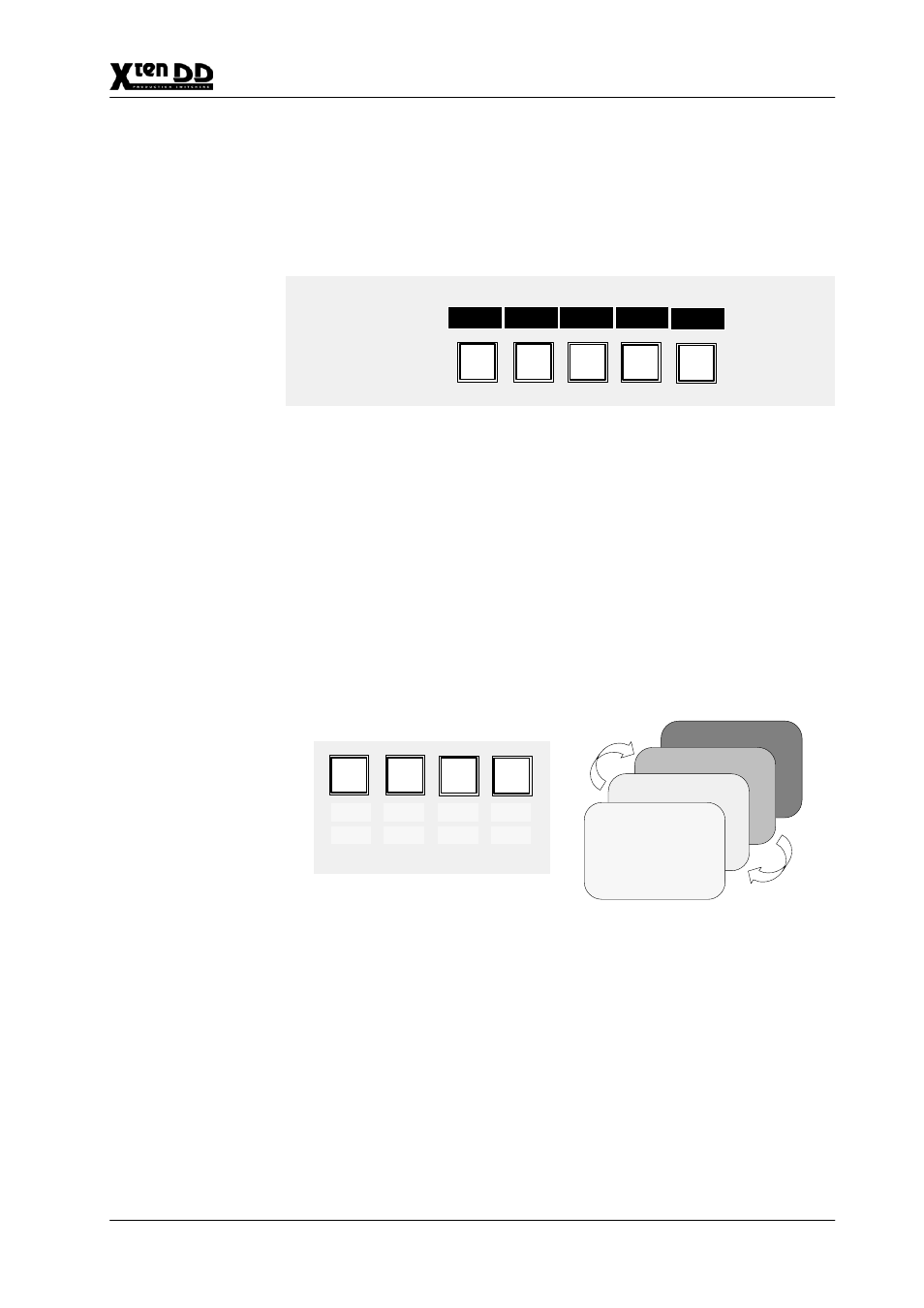

Next Transition The next-transition buttons BGD, Key 1, Key 2, Key 3 and Key 4 permit the prese-
lection of the picture components to be involved in the next transition. The buttons
are mutually exclusive. If you wish to fade several picture components simulta-
neously, press the respective buttons at the same time.
Key Key Key
1 2
WP 1 MIX WP 2
BGD
WP 1
4
Key
3
WP 2
4
The selected buttons light up and indicate which picture components will be
affected during the next transition. The result can be checked on the preview moni-
tor. The display above the buttons shows the type of transition (WP1 for Wipe1,
WP2 for Wipe2, MIX, DVE, ADD) that was selected for the respective picture com-
ponent. The “switched on” status of a keyer is indicated with On below the next-
transition buttons.
The priority among the keyers 1 and 2 is indicated with Over (RPD 35-4) or Mid
(RPD 35-2/-3) . Keyer 3 is always on top
If, for instance, Over is on below Key 1, keyer 1 has priority over keyer 2.
Button Key Over in the Keyers panel enables the user to change the priority of the
keyers 1 and 2.
Key 2
Key 1
On On
Background
Key Key Key
2 3
BGD
1
On On
Fx Fx Fx Fx
Key 3
Key Over
Keyer priority
Over (Mid)
