3. Menu Operation
3 – 143 Operating Instructions – Rev. 1 / 7.2002
3.14.3.2 Inner Window

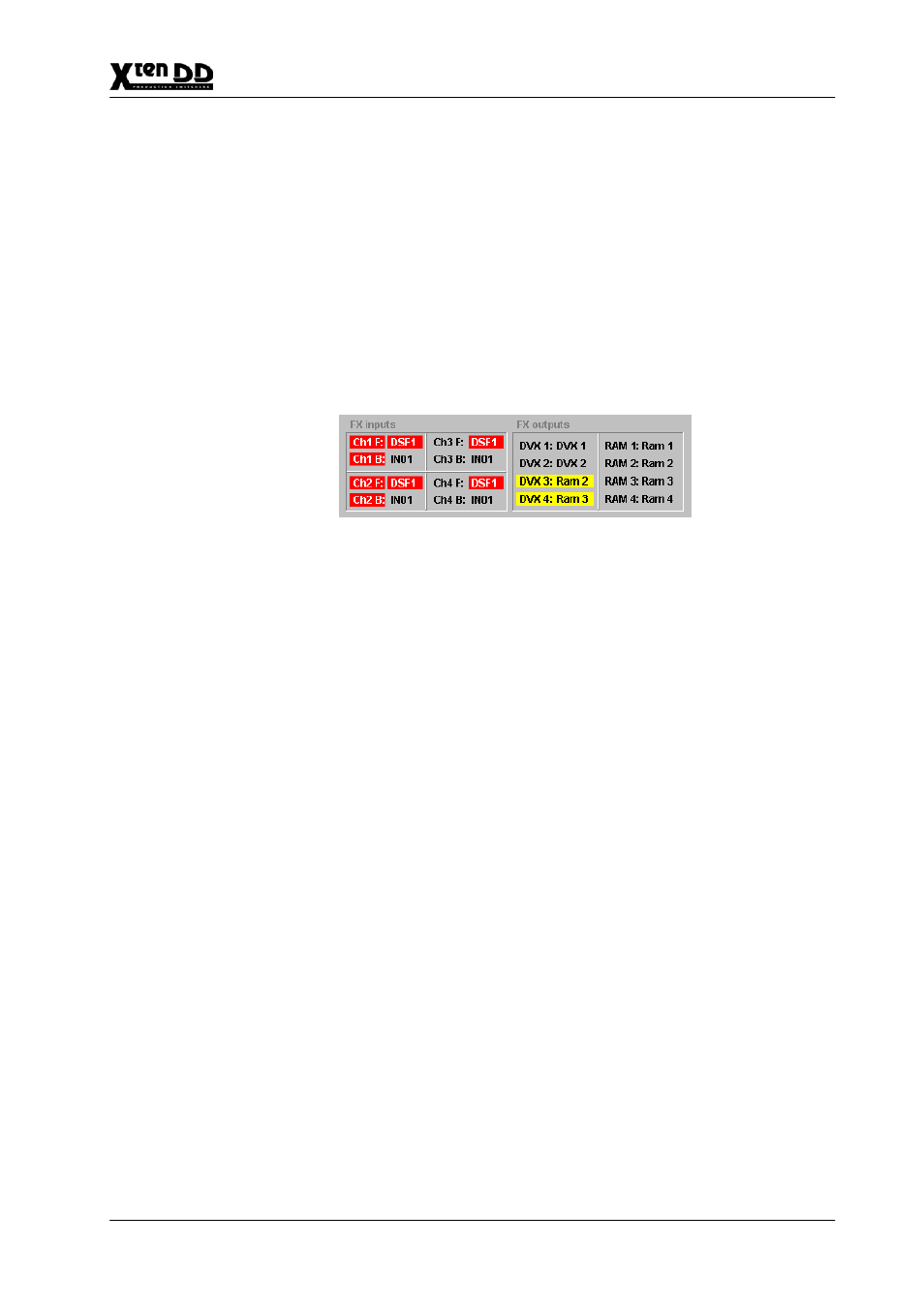

The inner window consists of several sections:
D
FX inputs
D
FX outputs can be hidded via DVx Settings
D
Effect selection ( 6 x 5 buttons )
D
Current effect no. can be hidden via DVx Settings
Input Selection
Input selection for the 4 FX processor channels, click on the according fields for
source selection:
Each channel has a separate source for front and back side, which is automatically
selected, depending on the rotation angle of the channel.
Output Selection
DVX1 ... DVX4: click on the according fields to change
to another DVX
RAM1 ... RAM4: click on the according fields to change
to another Ramrecorder
The standard settings are:
DVX1: DVX1 RAM1: RAM1
DVX2: DVX2 RAM2: RAM2
DVX3: DVX3 RAM3: RAM3
DVX4: DVX4 RAM4: RAM4
Since it is very unlikely that you have to change these settings, you probably will
hide the complete FX outputs section (DVx Settings menu).
