2. Panel Operation
2 – 22 Operating Instructions – Rev. 1 / 7.2002
In compare to the RPD 35-3 and RPS35–2 control panel, the RPD 35-4 panel have
more buttons and gives therefore the possibility to select more functions without
using UPK buttons (User programmable keys).
For mor details refer to section User Programmable Keys.
Transition
Limit
set
Limit
on
BGD BGD Key
2
Key
3
On On On On
Fx
Layer Over Over
Wipe
2
Wipe
1
Loop DVE Mix
BLK
Pst
Trans
dur
Transition types
Trans
PVW
Auto
1 2 3 4
Cut
WP 1 WP 2 MIX WP 2
Fx Fx Fx
B B
B A
Key
1
On
Over
Fx
MIX

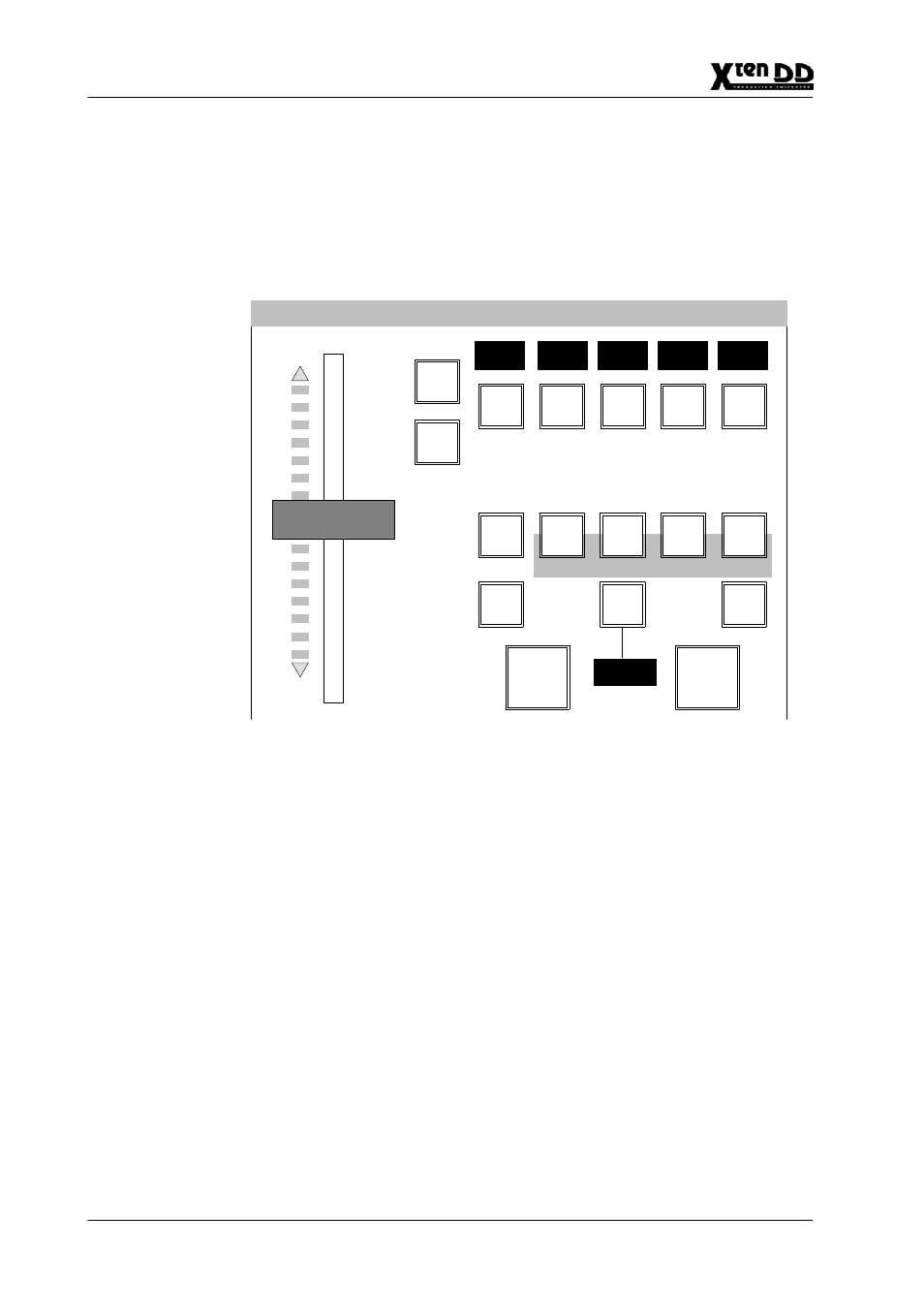

Example: RPD 35-2 and RPD 35-3 Transition panel
For effect design, ADD, Mix, DVE, Wipe1 and Wipe2 transitions can be selected
with up to two wipe generators (optional). The individual picture components can
be simultaneously faded with different transition types (MultiMix).
Control of the mixing level is facilitated by the consistent application of the next-
transition principle.
For an optimum preview of the transition effect, the switcher is equipped with inde-
pendent preview mixing levels and Transition PVW capabilities.
Note: Please note that the transition type ADD has to be set in the M/E Main
menu.
