3. Menu Operation
3 – 197 Operating Instructions – Rev. 1 / 7.2002

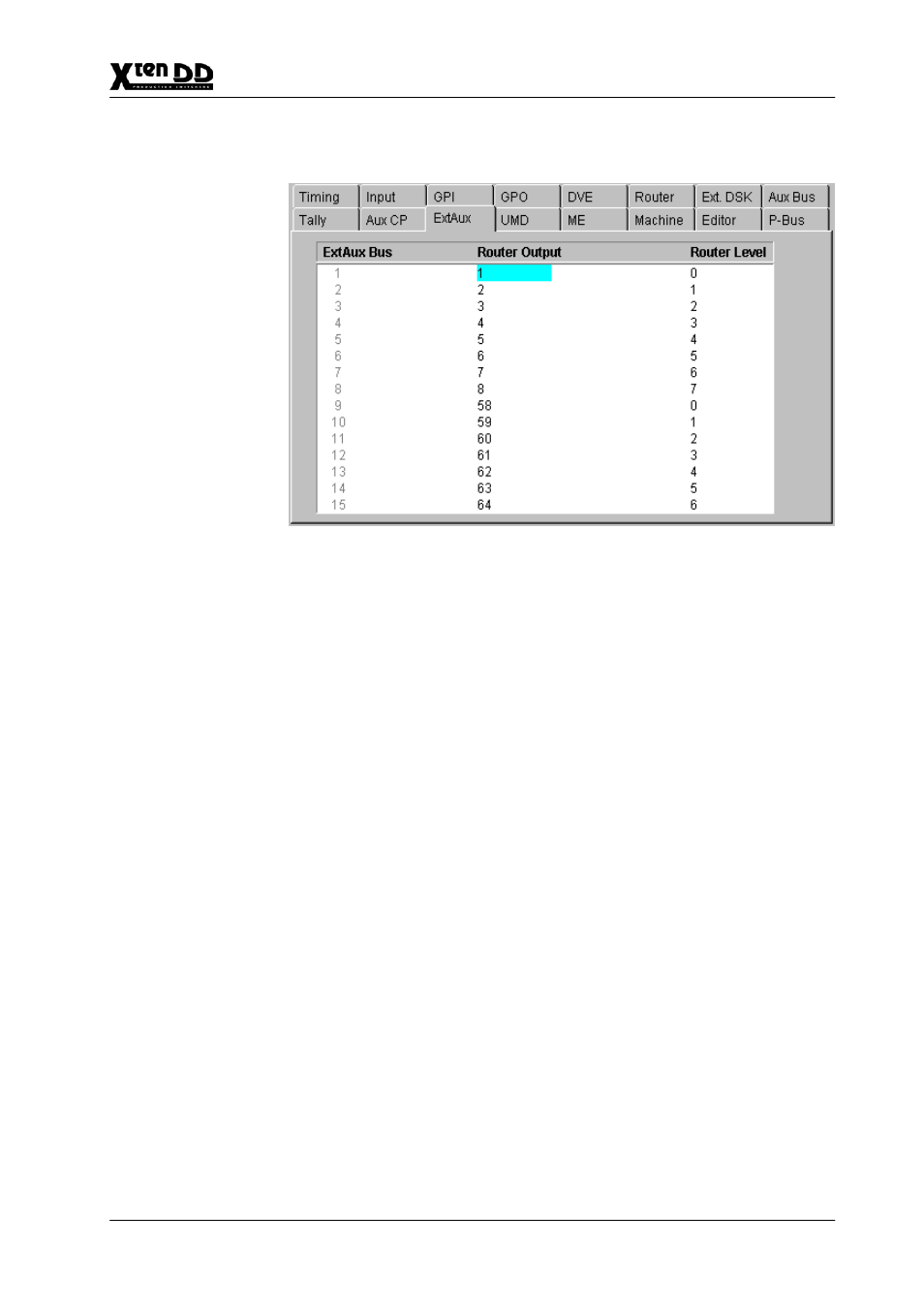

Index card for selecting and modifying the external Aux parameters.
The card enables the ability to select a special output at a defined level of the router.
Example:
If you select in the column Router Output the number 6 and in the column Router
Level the number 1 then it corresponds to the specification that External Aux Bus
1 ist connected with the router output 6 at level 1. The number of the levels and
router outputs depends of the router control protocol.
Ext Aux
