3. Menu Operation
3 – 164 Operating Instructions – Rev. 1 / 7.2002

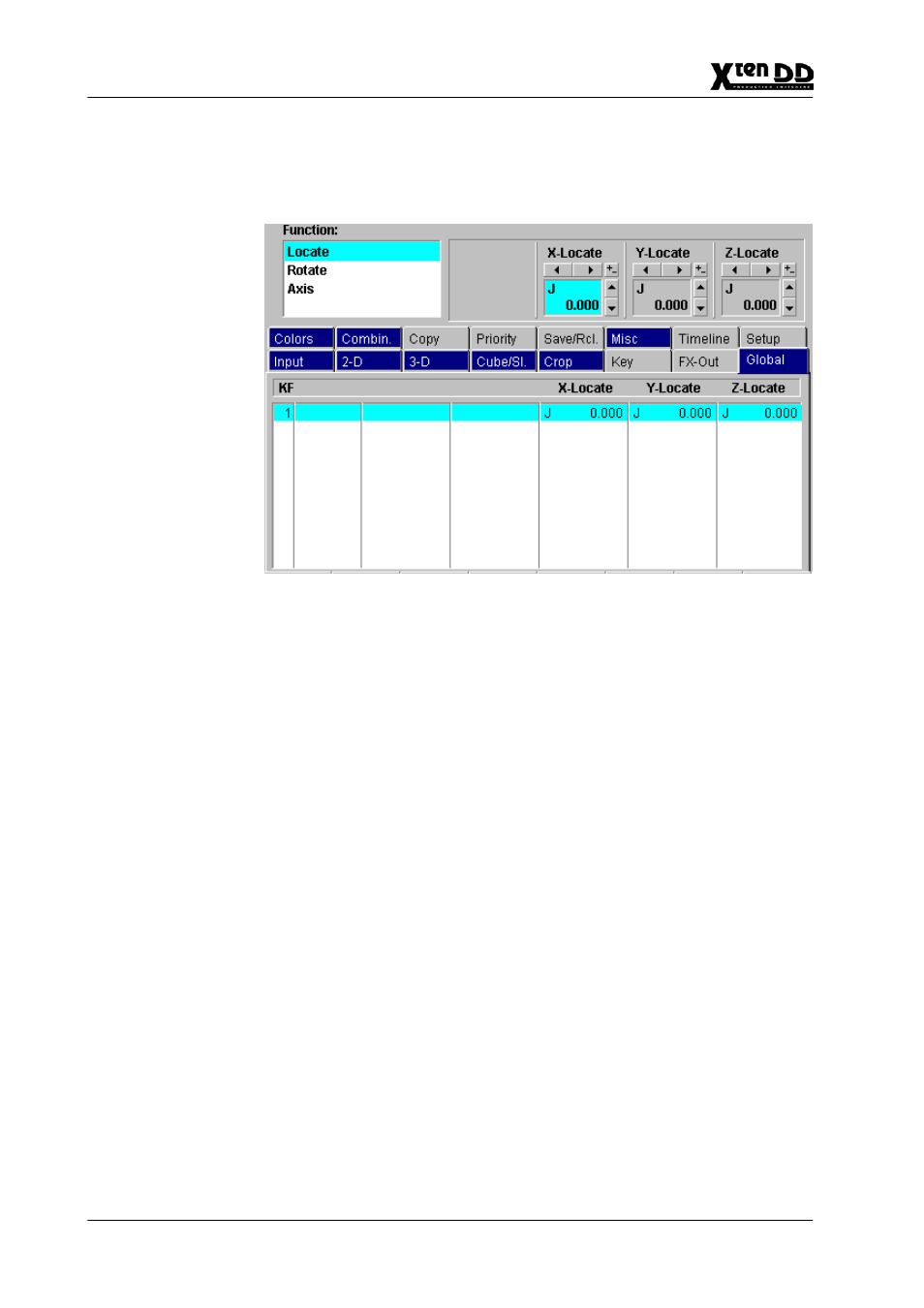

3.14.5.7 Global Index Card
Index card with 3 pages: Locate, Rotate, Axis
Page Locate
X–Locate x–position in 3–dimensional space for global channel.
Y–Locate y–position in 3–dimensional space for global channel.
Z–Locate z–position in 3–dimensional space for global channel.
Page Rotate
X–Rotate x–axis rotation in 3–dimensional space for global channel.
Y–Rotate y–axis rotation in 3–dimensional space for global channel.
Z–Rotate z–axis rotation in 3–dimensional space for global channel.
Page Axis
X–Position x–position of the coordinate system for global channel
Y–Position y–position of the coordinate system for global channel
Z–position z–position of the coordinate system for global channel
