5-24

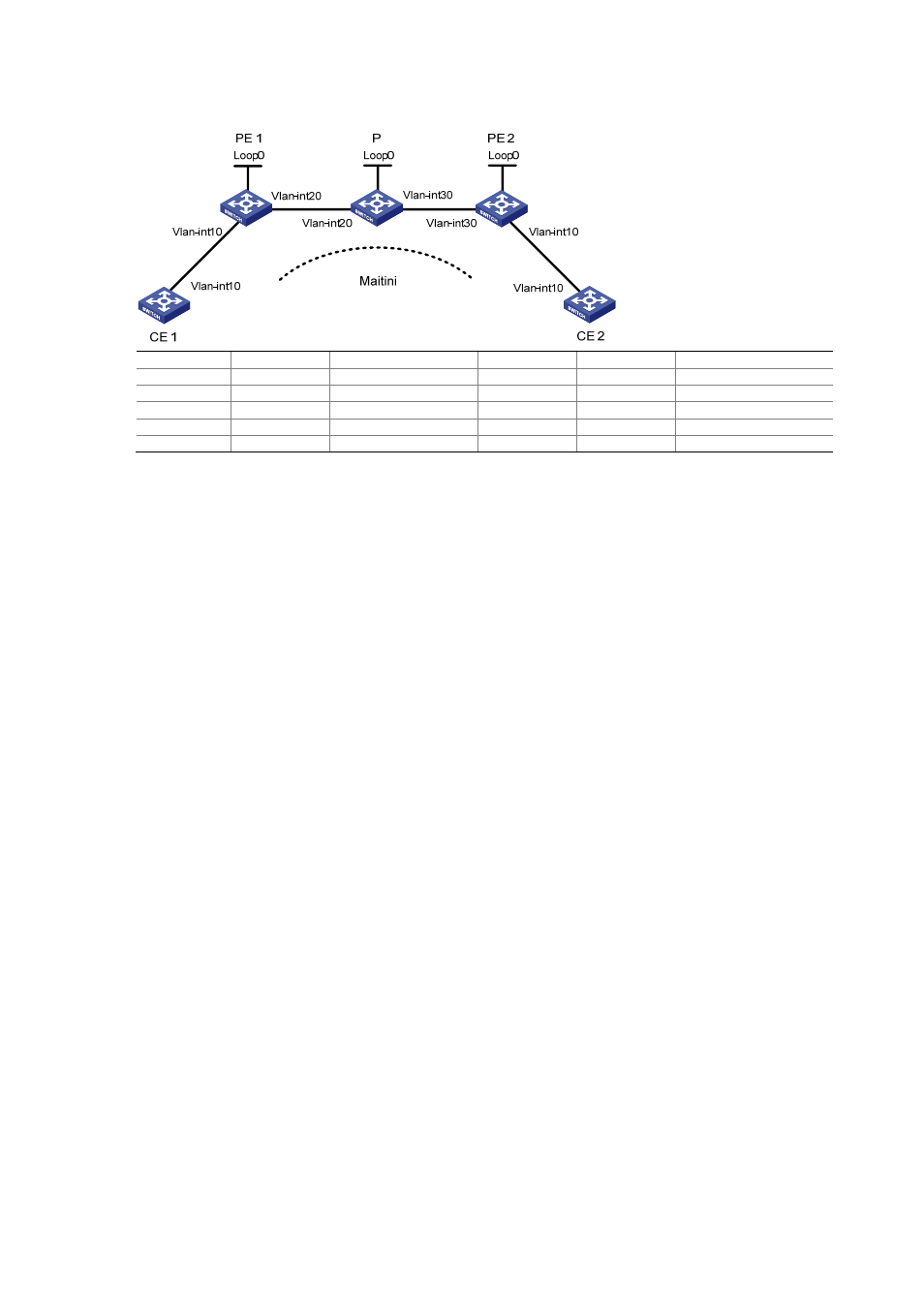

Figure 5-5 Network diagram for configuring Martini MPLS L2VPN
Device Interface IP address Device Interface IP address
CE 1 Vlan-int10 100.1.1.1/24 P Loop0 192.4.4.4/32
PE 1 Loop0 192.2.2.2/32 Vlan-int20 10.1.1.2/24
Vlan-int20 10.1.1.1/24 Vlan-int30 10.2.2.2/24
CE 2 Vlan-int10 100.1.1.2/24 PE 2 Loop0 192.3.3.3/32
Vlan-int30 10.2.2.1/24
Configuration procedure
1) Configure CE 1
system-view
[Sysname] sysname CE1
[CE1] interface vlan-interface 10
[CE1-Vlan-interface10] ip address 100.1.1.1 24
2) Configure PE 1
# Configure the LSR ID and enable MPLS globally.
system-view
[Sysname] sysname PE1
[PE1] interface loopback 0
[PE1-LoopBack0] ip address 192.2.2.2 32
[PE1-LoopBack0] quit
[PE1] mpls lsr-id 192.2.2.2
[PE1] mpls
# Configure the LSP establishment triggering policy.
[PE1-mpls] lsp-trigger all
[PE1-mpls] quit
# Enable MPLS L2VPN and LDP globally.
[PE1] mpls l2vpn
[PE1] mpls ldp
[PE1-mpls-ldp] quit
# Establish a remote session between PE 1 and PE 2.
[PE1] mpls ldp remote-peer 1
[PE1-mpls-ldp-remote-1] remote-ip 192.3.3.3
[PE1-mpls-ldp-remote-1] quit
# Configure the interface connected with the P device, namely VLAN-interface 20, and enable LDP on
the interface.
[PE1] interface vlan-interface 20
[PE1-Vlan-interface20] ip address 10.1.1.1 24
[PE1-Vlan-interface20] mpls
