Figure c-9 – Digilent 6003-410-000P-KIT User Manual
Page 95
Xilinx University Program Virtex-II Pro Development System
95
UG069 (v1.0) March 8, 2005
1-800-255-7778
R
13. To load the newly programmed PROM configuration file into the Virtex-II Pro FPGA,
verify that the CONFIG SOURCE switch is set to enable high speed SelectMap byte
wide configuration from the on-board Platform Flash configuration PROM and that
the PROM VERSION switch is set to enable the Golden configuration. If the switches
are set properly, the green PROM CONFIG LED (D19) and the amber GOLDEN
GONFIG LED (D14) are illuminated.
14. Press the RESET\RELOAD push button until the red RELOAD turns on. Upon
releasing the push button, the new Golden configuration is transferred to the FPGA.

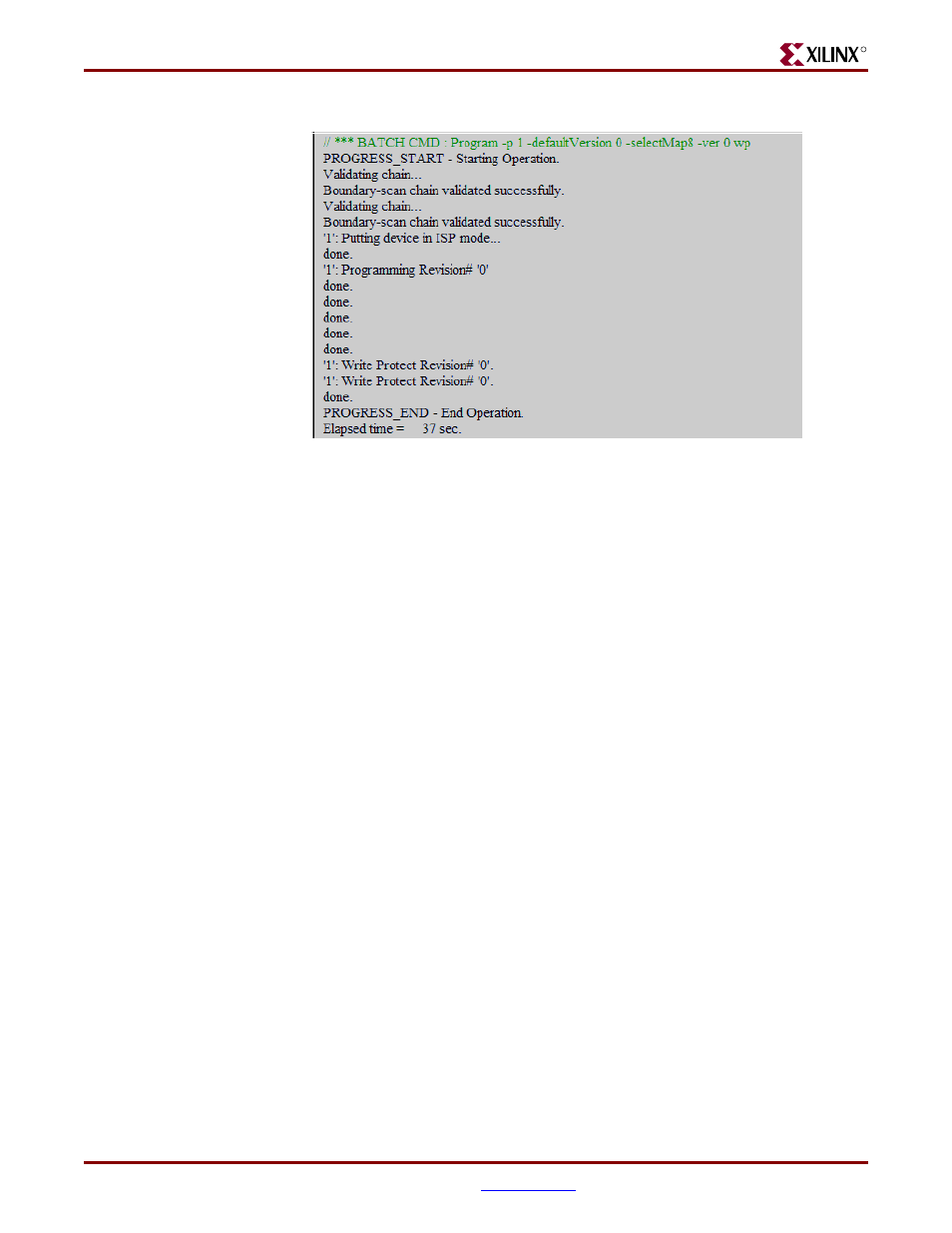

Figure C-9:
iMPACT PROM Programming Transcript Window
