110 www.xilinx.com XUP Virtex-II Pro Development System
1-800-255-7778 UG069 (v1.0) March 8, 2005
Appendix D: Using the Golden FPGA Configuration for System Self-Test R
FIFO Loopback Test Procedure
1. Select “2” from the AC97 Audio Test Menu.
2. Begin playing the audio from the PC (or other audio source).
3. The sound should be heard from the headphones (or speakers) for about 10 seconds.
4. The terminal window output for the FIFO Loopback test is shown in Figure D-17 .
Game Sounds Test Procedure
1. Select “3” from the AC97 Audio Test Menu.
2. Game sounds should be heard out the headphones (or speakers) for about 5 seconds.
3. The terminal window output for the Game Sounds test is shown in Figure D-18 .

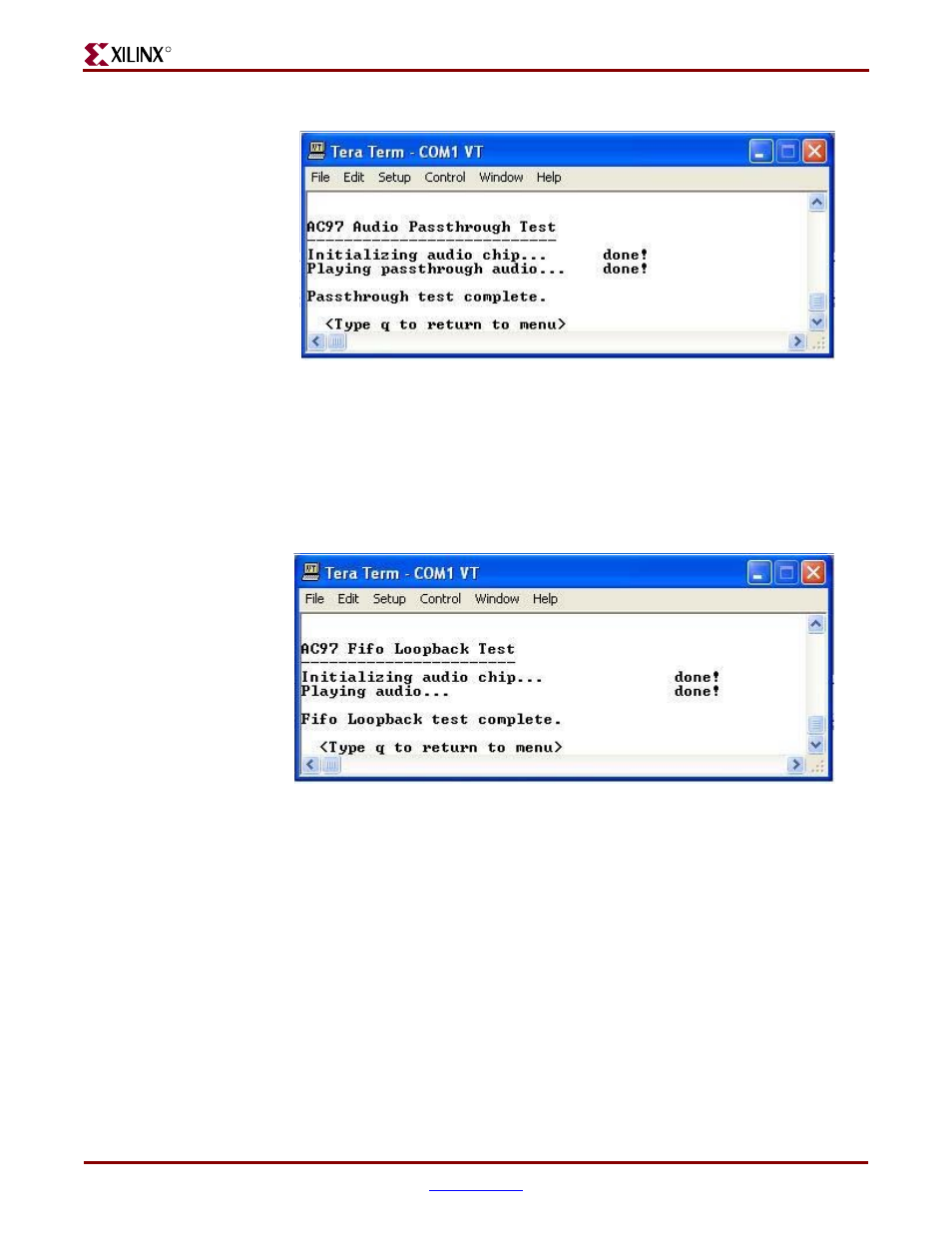

Figure D-16: Digital Passthrough Test Completion
Figure D-17: FIFO Loopback Test Completion
