XUP Virtex-II Pro Development System www.xilinx.com 29
UG069 (v1.0) March 8, 2005
Using the DIMM Module DDR SDRAM R
The Xilinx PLB DDR SDRAM controller is a soft IP core designed for Xilinx FPGAs that
support different CAS latencies and memory data widths set by design parameters.
The DDR SDRAM controller logic instantiates DDR input and output registers on the
address, data, and control signals, so the clock to output delays match the clock output
delay. The DDR SDRAM clocking structure as shown in
Figure 2-10 is a simplified version
of the clocking structure mentioned in DS425 .

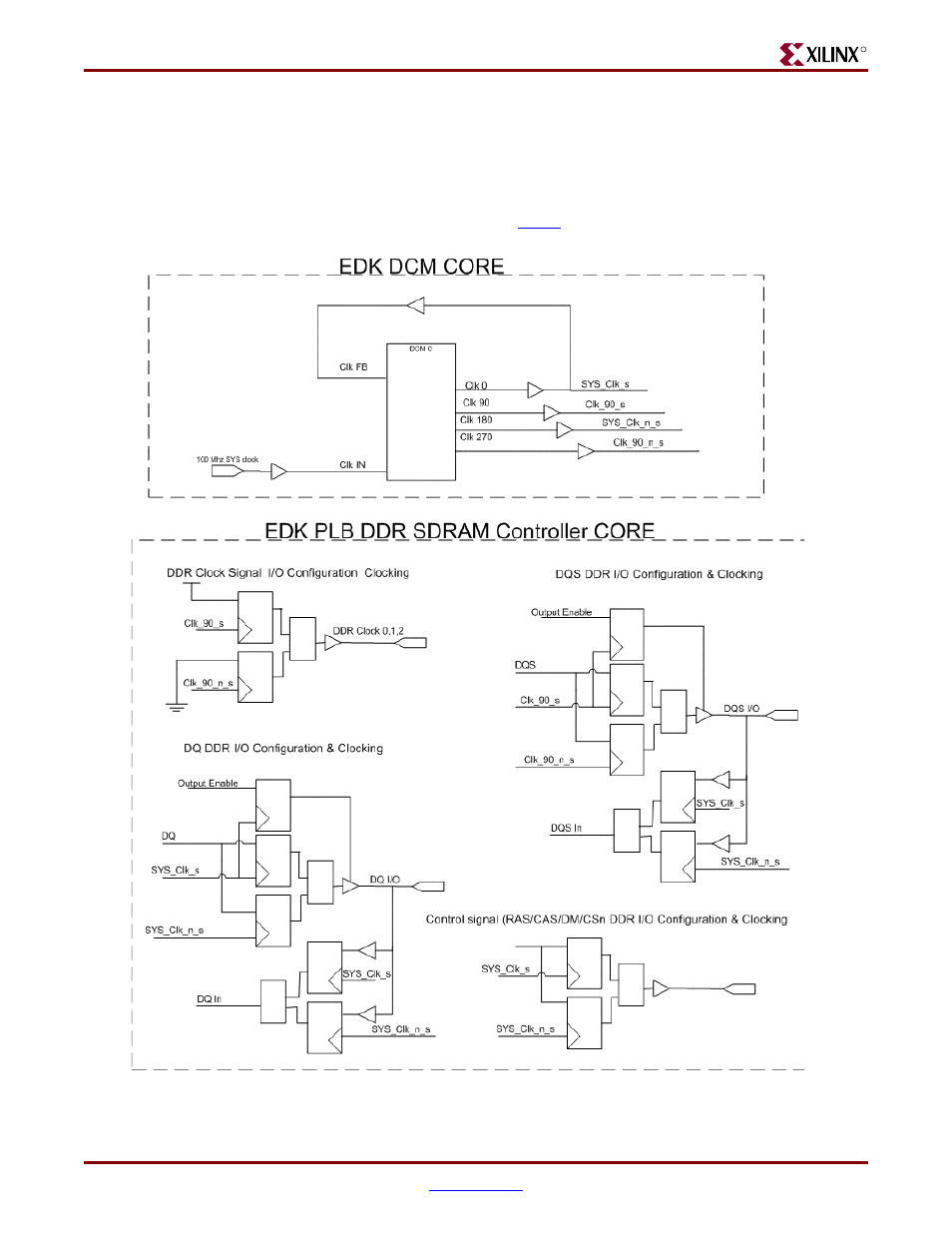

Figure 2-10: Clock Generation for the DDR SDRAM
ug069_23_021505
