Overview

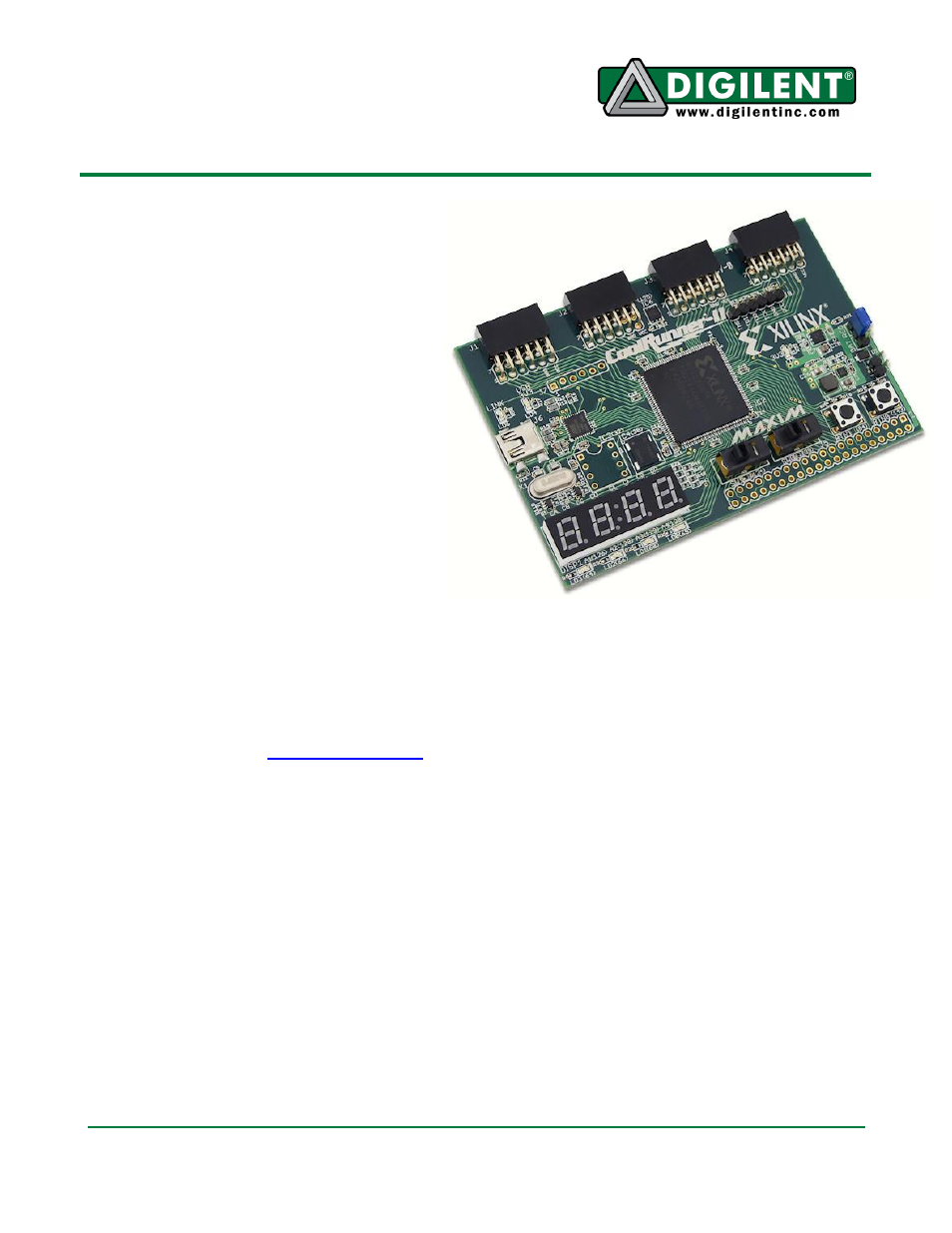

The CoolRunner-II Starter Board is a
complete USB-powered circuit development
platform for Xilinx’s CoolRunner-II CPLD.
The board includes highly-efficient power
supplies, a programmable oscillator, several
I/O devices, and a USB2 port for board
power and CPLD programming. The board
also includes five expansion connectors that
make 64 CPLD signals available to external
circuits.
Features include:
a 256-macrocell CoolRunner-II CPLD
in a TQ-144 package
an on-board USB2 port for board
power, JTAG programming, and data
transfers
an 8MHz fixed-frequency oscillator and a socket for a crystal oscillator
expansion connectors for 64 I/O signals (32 on the Pmod connectors and 32 on the parallel
connector)
a one-wire DS28E01Q EEPROM
A large collection of board-support IP, reference designs, and add-on peripheral module boards
(Pmods) is available at
