Digilent 410-229P User Manual
Digilent Hardware

c
c
h
h
i
i
p
p
K
K
I
I
T
T
™
™
P
P
m
m
o
o
d
d
S
S
h
h
i
i
e
e
l
l
d
d
-
-
U
U
n
n
o
o
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
M
M
a
a
n
n
u
u
a
a
l
l
Revision:
November 7, 2012
1300 Henley Court | Pullman, WA 99163
(509) 334 6306 Voice and Fax
Doc: 502-229
page 1 of 7
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Overview

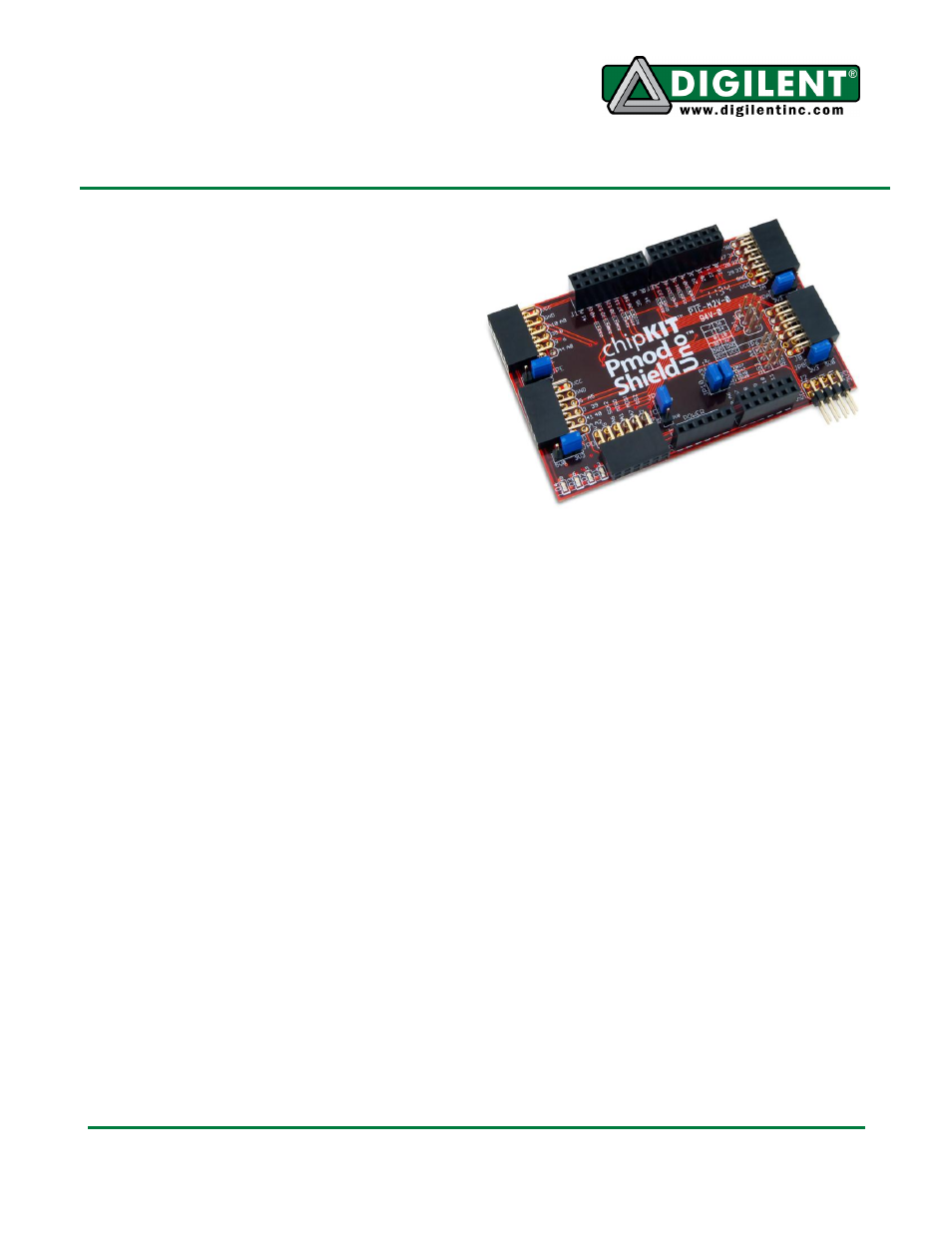

The chipKIT Pmod Shield-Uno is an
input/output expansion board for use with the
chipKIT Uno
32™ and chipKIT uC32™. It
provides the additional circuitry and connectors
to allow Digilent peripheral modules (Pmods
™)
to be used with the Uno32 and uC32.
The Pmod Shield-Uno has five 2x6 Digilent
Pmod connectors. It also provides access to
the I/O connectors available on the Uno32 as
well as connecting to the I
2
C bus supported by
the Uno32 and uC32.
The Pmod Shield-Uno has the same form
factor as the Uno32 and uC32 boards.
Features include:
five 2x6 Digilent Pmod connectors
one 6-pin header connector for SPI
one I
2
C daisy chain connector
4 user LEDs
Standard chipKIT Shield connectors
Functional Description
The Pmod Shield-Uno is designed to be used with the chipKIT Uno32 board. When used in
combination, the two boards provide the necessary supporting hardware and connectors to make use
of most Digilent Pmods
TM
. The rest of this document will only reference the Uno32, however, the
shield can also be used with the chipKIT uC32.
The Pmod Shield-Uno has the following connectors.
J1 & J3: Digital Signal Pass-Through Connectors
This connector provides most of the signals used by the Uno32 board to the Pmod Shield-Uno board.
The remaining signals are passed through the Pmod Shield-Uno.
J6: SPI #2 Connector
This connector provides access to the SPI signals MISO, MOSI, SCK, and SS.
