XUP Virtex-II Pro Development System
83
UG069 (v1.0) March 8, 2005
1-800-255-7778
R
The iMPACT software then interrogates the system and reports that there are at least
three devices in the JTAG chain. The first device is the XCF32P PROM; the second
device is the System ACE controller; and the third device is the Virtex-II Pro FPGA.
Any additional devices shown in the JTAG chain will reside on optional expansion
boards.
17. Select the MCS file that you created earlier as the configuration file for the XCF32P
PROM and click Open, as shown in
18. Select BYPASS as the configuration files for the System ACE controller and the
Virtex-II Pro FPGA.

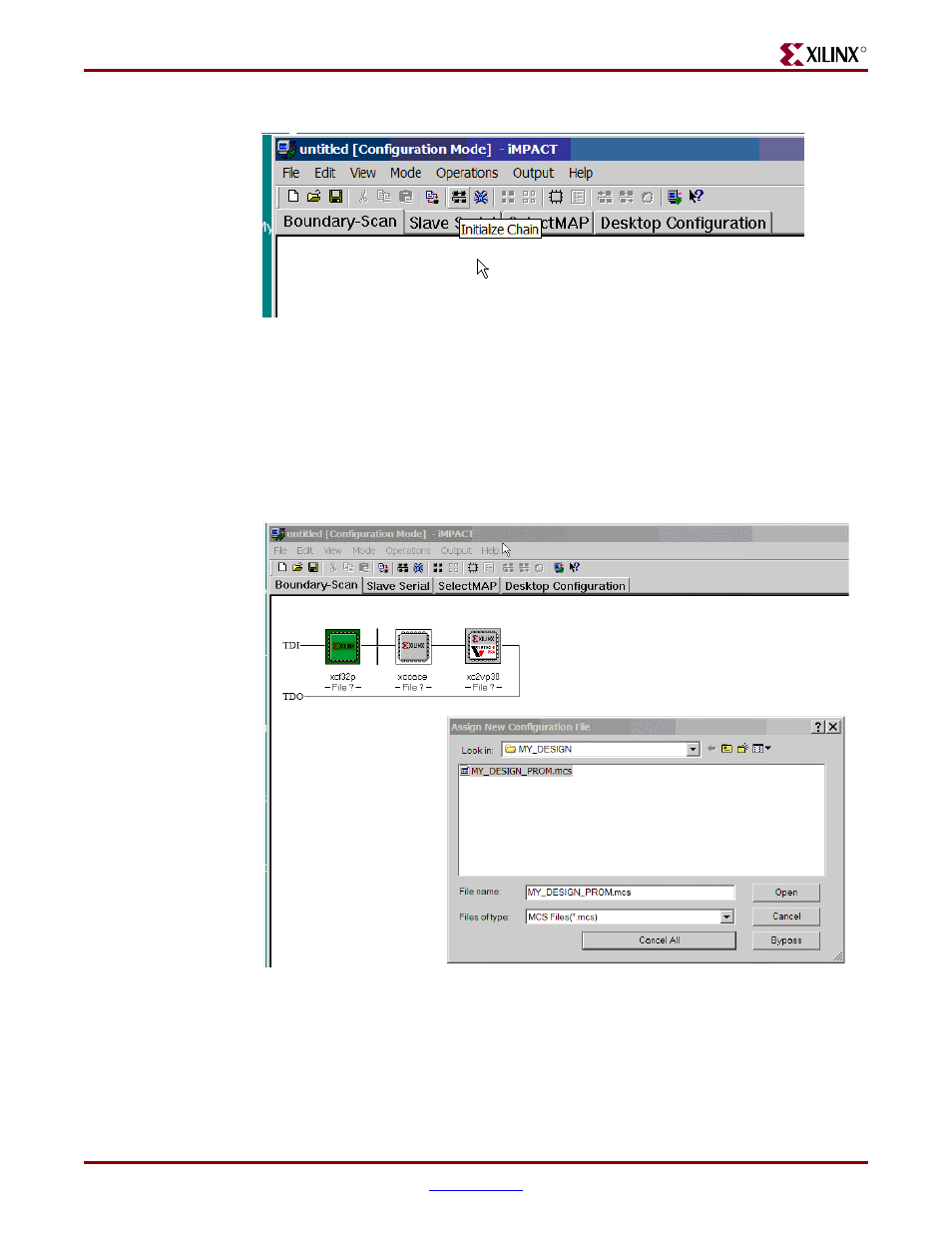

Figure B-11:
Initializing the JTAG Chain
Figure B-12:
Assigning the MCS File to the PROM
