80 www.xilinx.com XUP Virtex-II Pro Development System
1-800-255-7778 UG069 (v1.0) March 8, 2005
Appendix B: Programming the Platform FLASH PROM User Area R
7. Click on Next twice to bring up the Add Device File screen shown in Figure B-5 .
8. Click on Add File and navigate to your design directory and select the.bit file for your
design as shown in
Figure B-6 .
9. Click on Open and answer No when prompted to add another design file to
Revision 0.

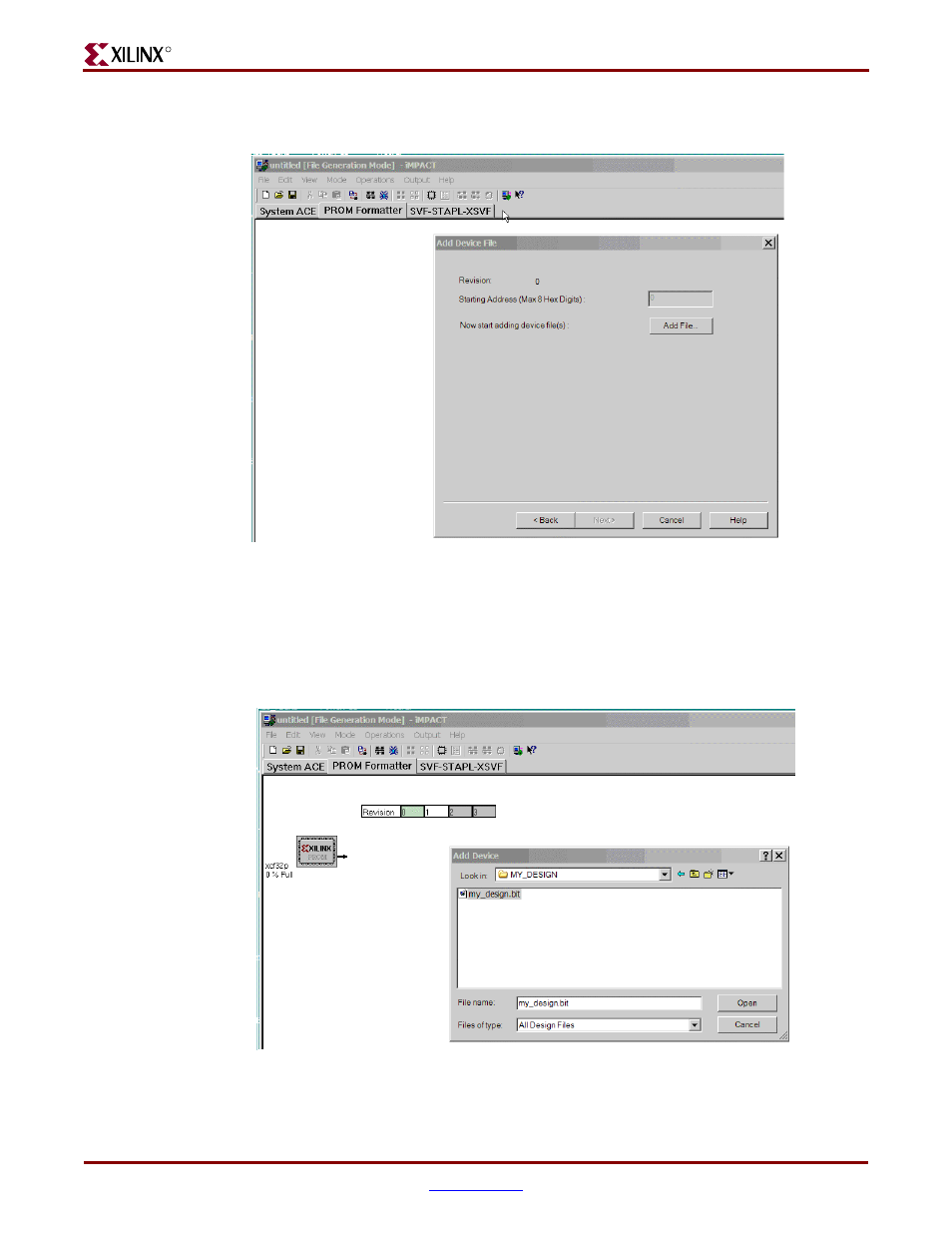

Figure B-5: Adding a Device File
Figure B-6: Adding the Design File to Revision 0
