XUP Virtex-II Pro Development System
1-800-255-7778
UG069 (v1.0) March 8, 2005
Appendix D: Using the Golden FPGA Configuration for System Self-Test
R
2.
Open a Web browser, and type in “http://YOUR XUP PRO BOARD IP
ADDRESS:8080” in for the address, and you will see a Web page sent from the
XUP Pro board as shown in
3.
You can click the “Submit” button on the Web page without entering anything in the
text box to reload the Web page. The background of the Web page will change each
time it is reloaded.
4.
You can change the DIP switches on the XUP board and reload the Web page to see the
DIP switch status report at the bottom of the Web page.
5.
You can type in “x” or “X” in the text field and click “Submit” bottom to terminate the
Web server. You will see the Web page shown in
, indicating that the Web
server is stopped. Your terminal program will return back to the BIST Main Menu.

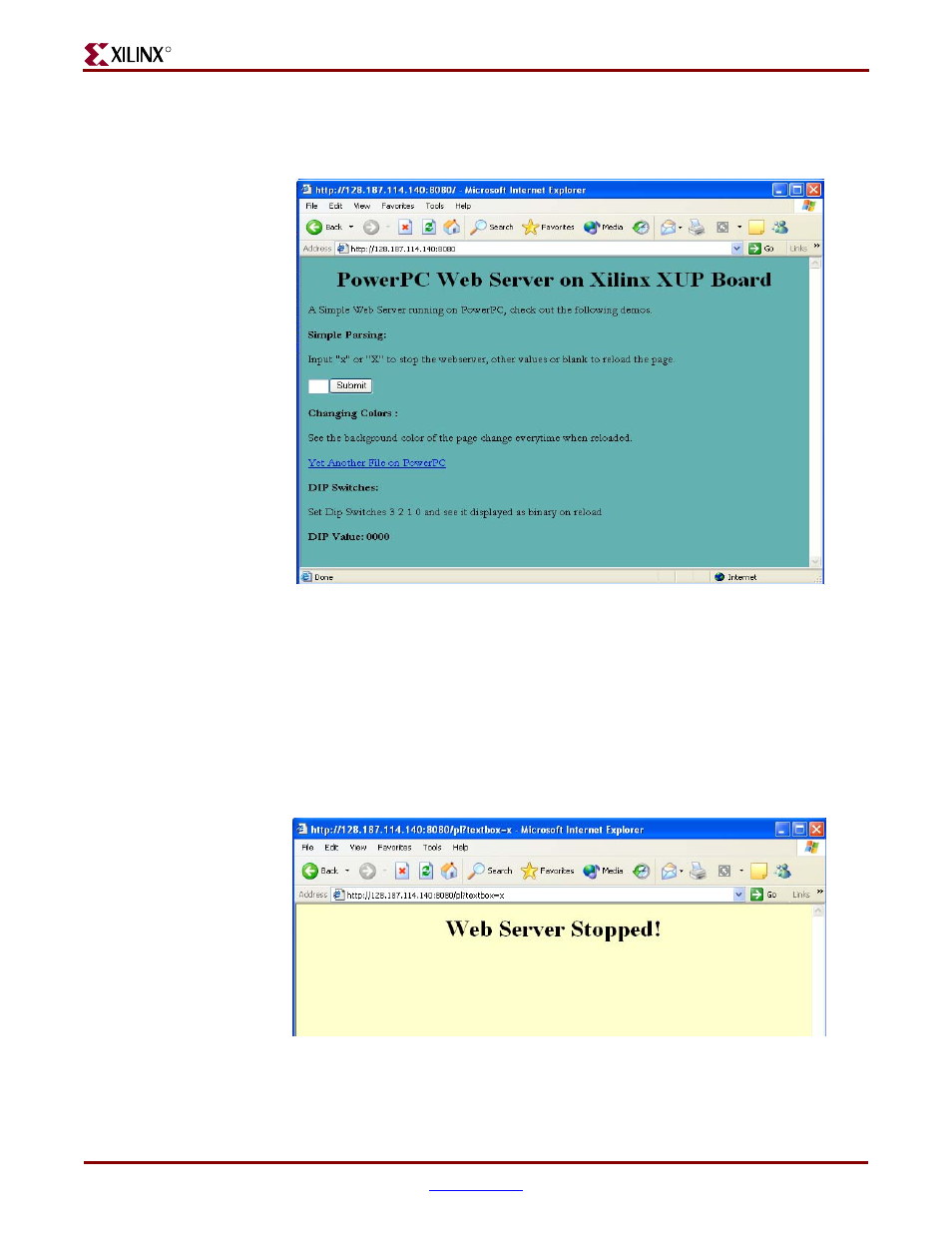

Figure D-13:
Web Server Display
Figure D-14:
Web Server Stopped
