Using the system, Configuring the power supplies, Chapter 2: using the system – Digilent 6003-410-000P-KIT User Manual

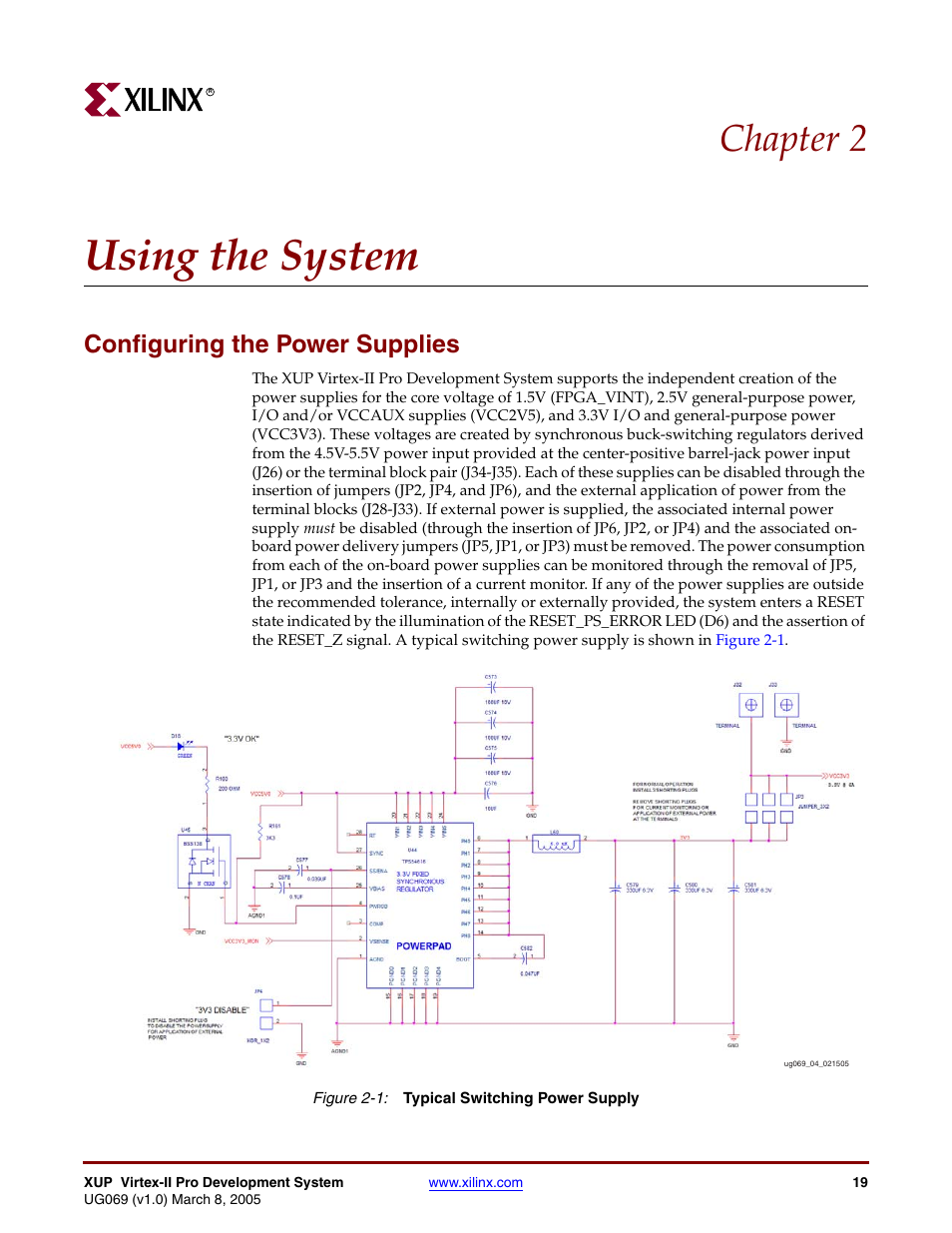

Page 19: Figure 2-1, Chapter 2
