Chapter 10
OMM-0089_0A Installation, Operation & Maintenance Manual EZ-SET Controller
10.13 LOCKOUT HISTORY
Navigation: Home Screen > Main Menu > Boiler Information > Lockout History
Lockout History records the last eight lockouts. Each line contains a lock-out description
followed by how long ago the lockout occurred. Six lock-outs are displayed on the screen at one
time. Press the UP or DOWN buttons to scroll through additional lockouts. See Tables 10-4 and
10-5 for a list of lockouts and descriptions.

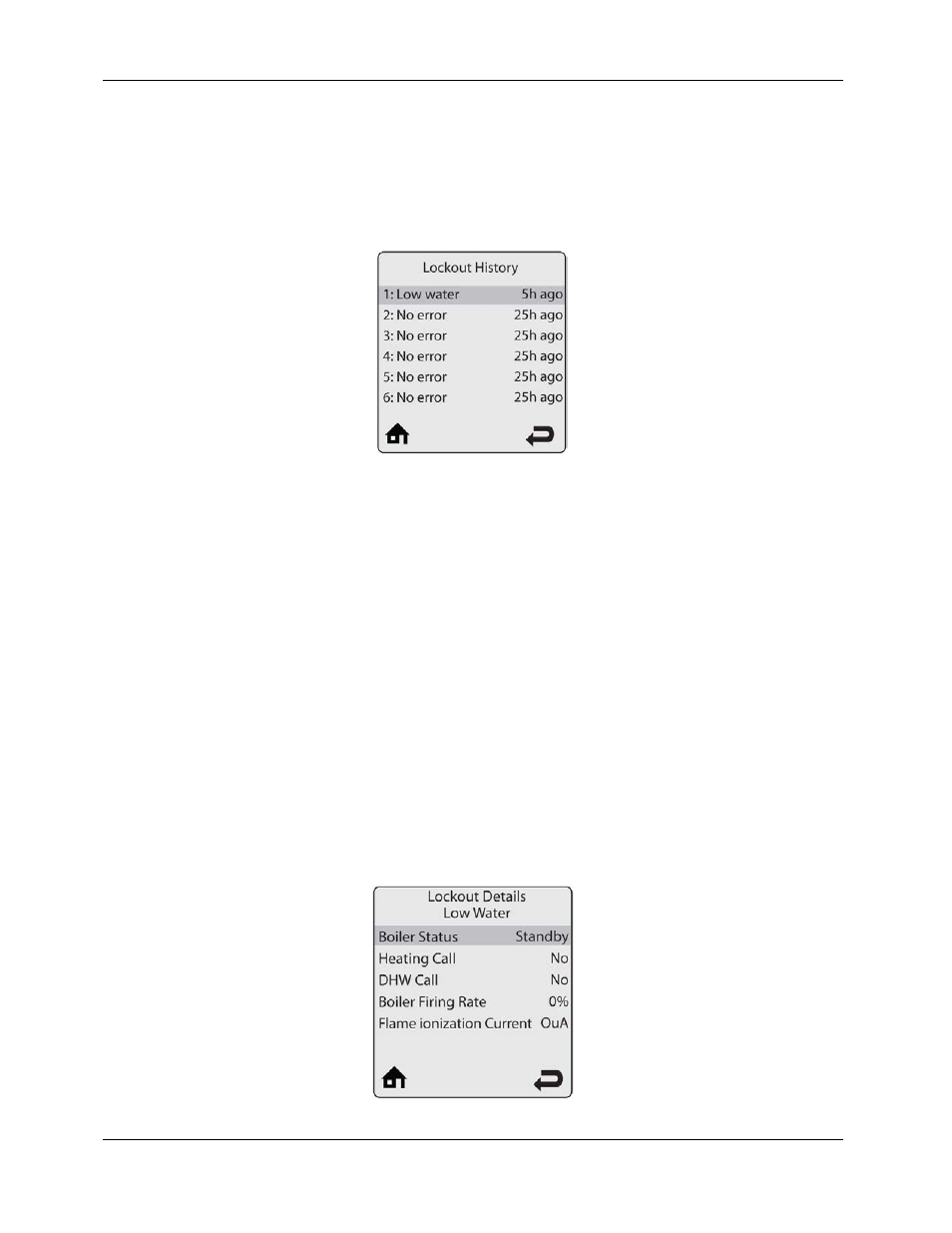

Figure 10-19: Lockout History Menu
10.13.1 Lockout Details
Some information items are recorded at the time of a lockout to aid in diagnosing the cause of
the lockout. Select the lockout description in Lockout History then press the OK button to view
the recorded information. Press the UP or DOWN buttons to scroll through the recorded
information. The following information items are recorded at the time of a lockout:
• Boiler Status
• Heating Call
• Domestic Call
• Boiler Firing Rate
• Flame Ionization Current
• Boiler Setpoint
• Boiler Supply Temperature
• Boiler Return Temperature
• Boiler Flue Temperature
• Outdoor Temperature
• System Temperature
Figure 10-20: Lockout Details Menu
