AERCO Esteem Boiler with EZ-Set Controller User Manual
Page 37
GF-135
Esteem 399 Low NOx Boiler
Chapter 5
OMM-0089_0A
Installation, Operation & Maintenance Manual
Boiler Piping

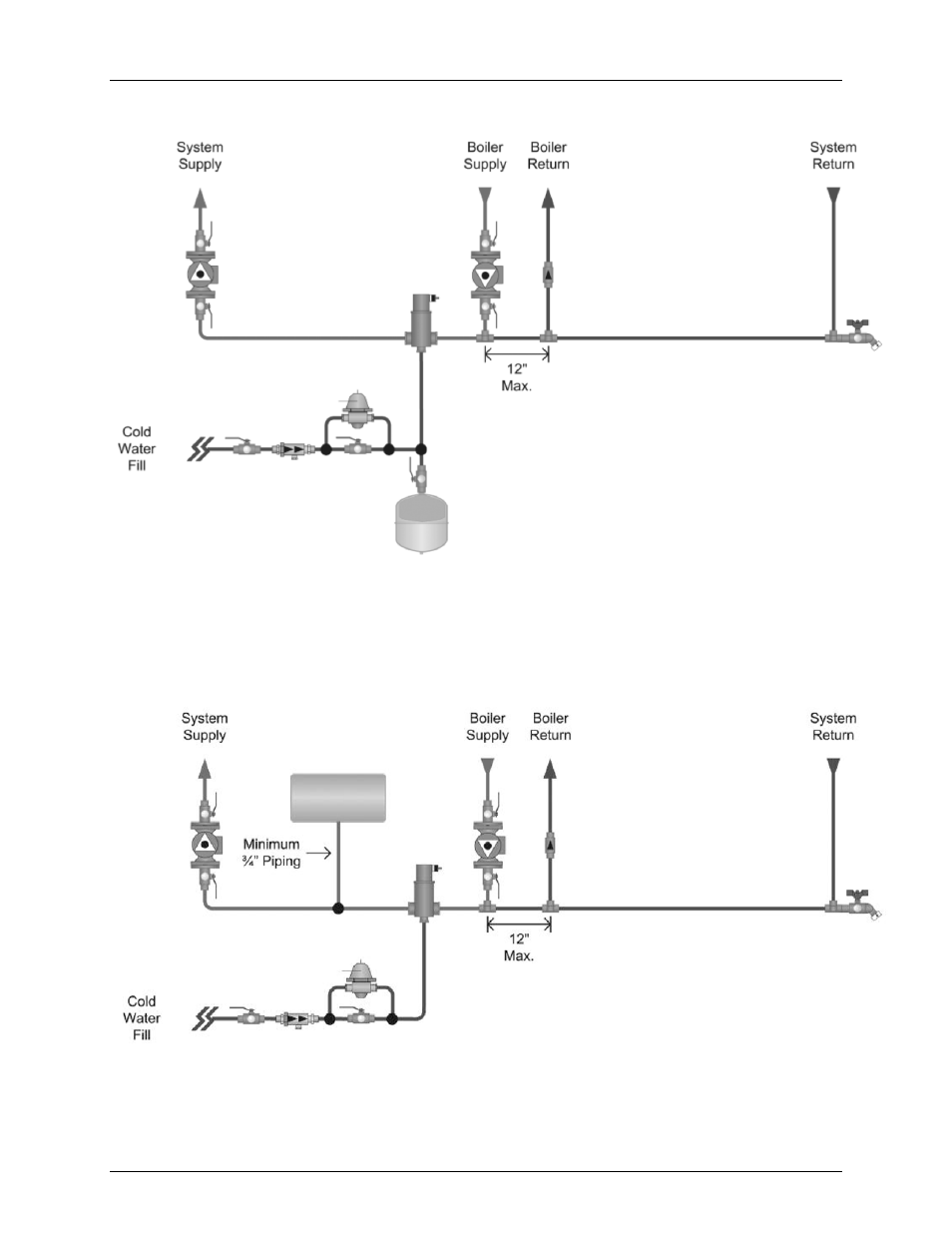

Figure 5-3: Near Boiler Piping – Diaphragm Expansion Tank
Figure 5-4: Near Boiler Piping – Closed Type Expansion Tank
NOTE
Pitch horizontal piping
upwards (1” of pipe per
5 feet of piping) toward
expansion tank.
Page 37 of 188
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0089_0A
MC1 06/19/14
Ph.: 800-526-0288
