AERCO Esteem Boiler with EZ-Set Controller User Manual
Page 155
GF-135 Esteem 399 Low NOx Boiler
Chapter 18
OMM-0089_0A
Installation, Operation & Maintenance Manual Controller Operation

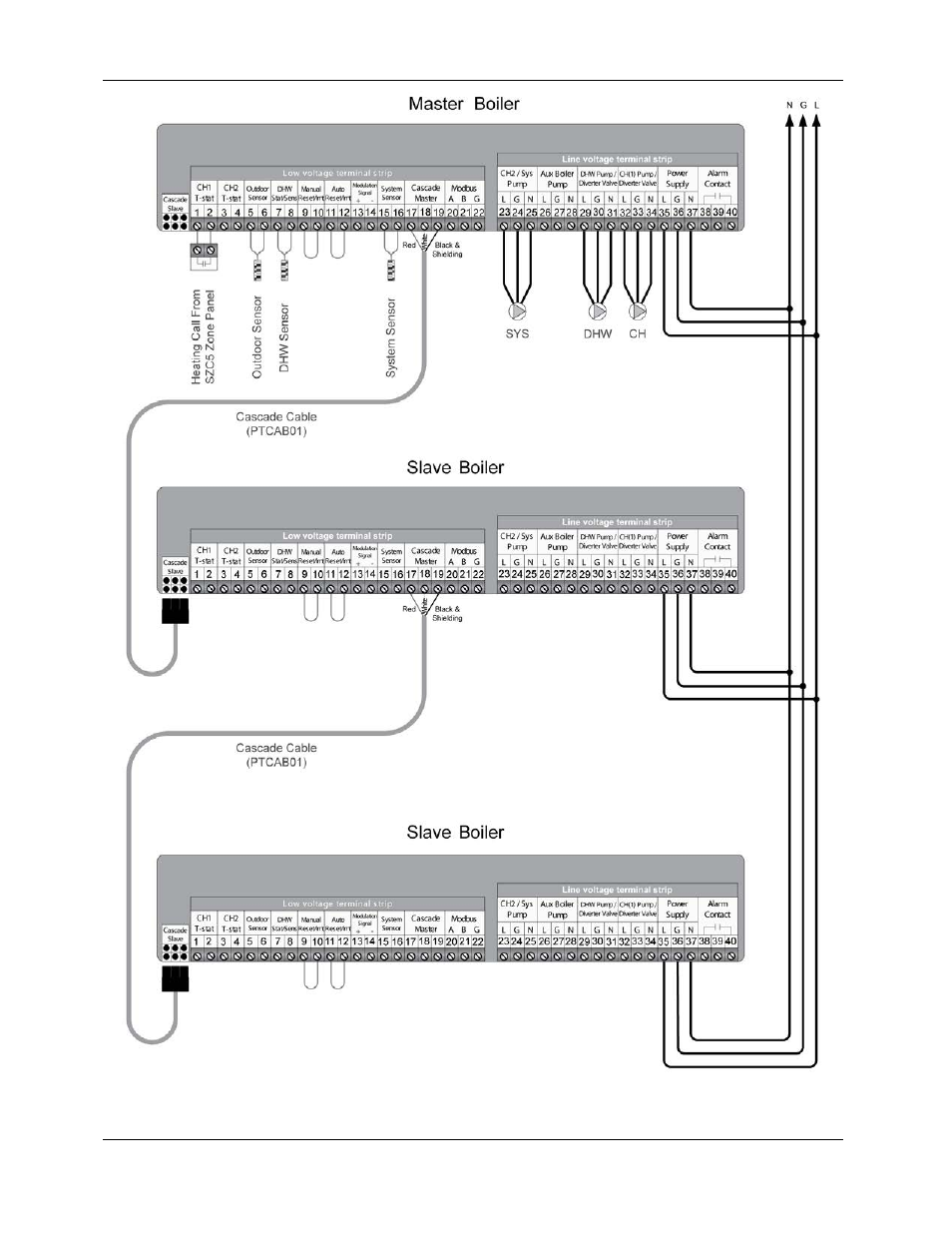

Figure 18-50: Standard Reverse Return Cascade Wiring
NOTE
Reference Figure 18-49
on previous page for
cascade piping.
Page 155 of 188
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0089_0A
MC1 06/19/14
Ph.: 800-526-0288
