2 line voltage fuses location – AERCO Esteem Boiler with EZ-Set Controller User Manual
Page 52
GF-135 Esteem 399 Low NOx Boiler
Chapter 8
OMM-0089_0A
Installation, Operation & Maintenance Manual Internal Wiring
8.2.2 Line Voltage Fuses Location
Additional fuses are also located on the line voltage terminals as shown in Figure 8-2.
Fuse Size
Terminals
Purpose
2.5A
23,24,25
CH2 /System Pump
2.5A
26,27,28
Auxiliary Boiler Pump
2.5A
29,30,31
DHW Pump / Diverter Valve
2.5A
32,33,34
CH1 Pump/Diverter Valve
8.0A
35,36,37
Power Supply
2.5A
38,39,40
Alarm

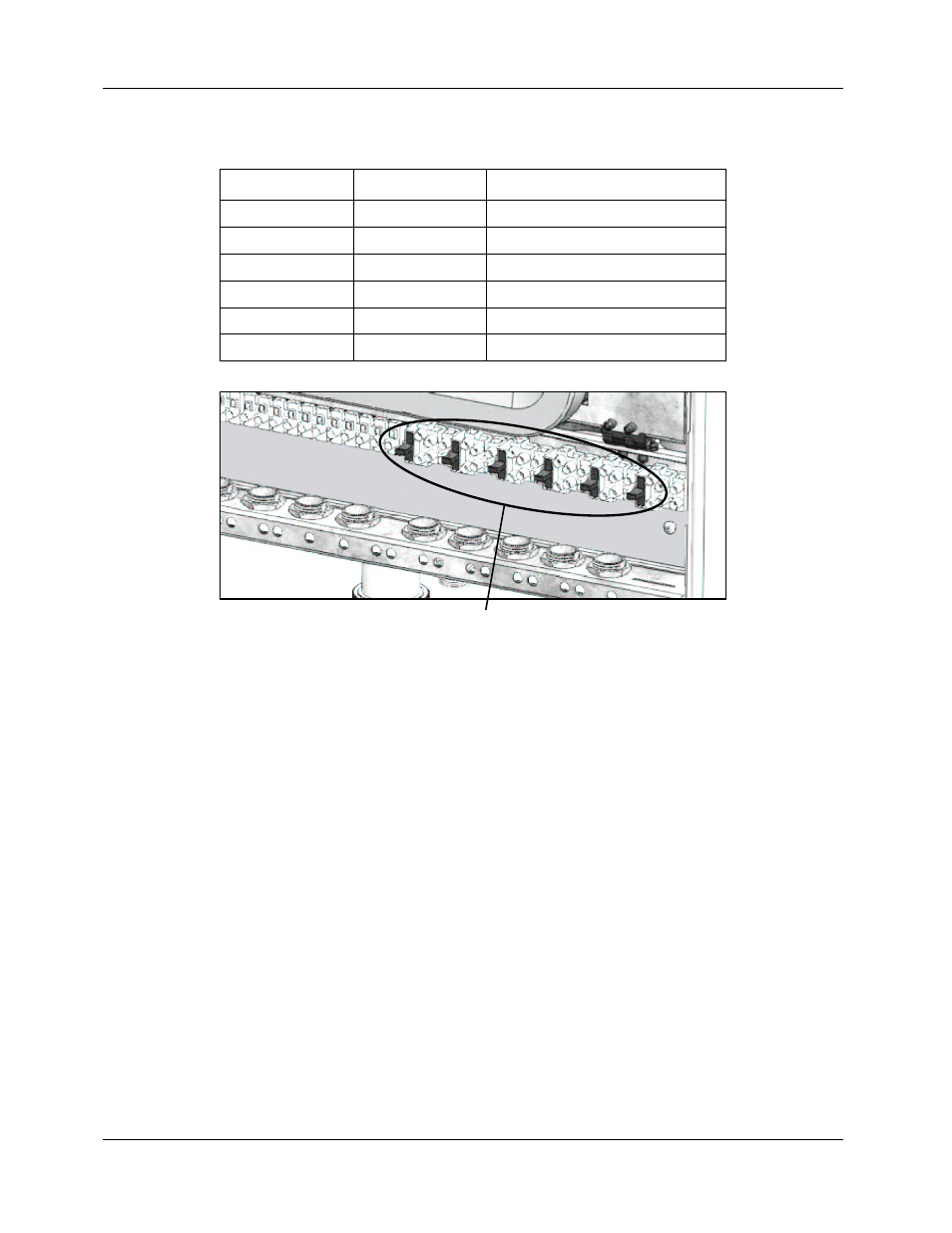

Figure 8-2: Line Voltage Fuse Locations
Fuse Locations
Page 52 of 188
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0089_0A
MC1 06/19/14
Ph.: 800-526-0288
