GF-135
Esteem 399 Low NOx Boiler Chapter 5
OMM-0089_0A Installation, Operation & Maintenance Manual Boiler Piping

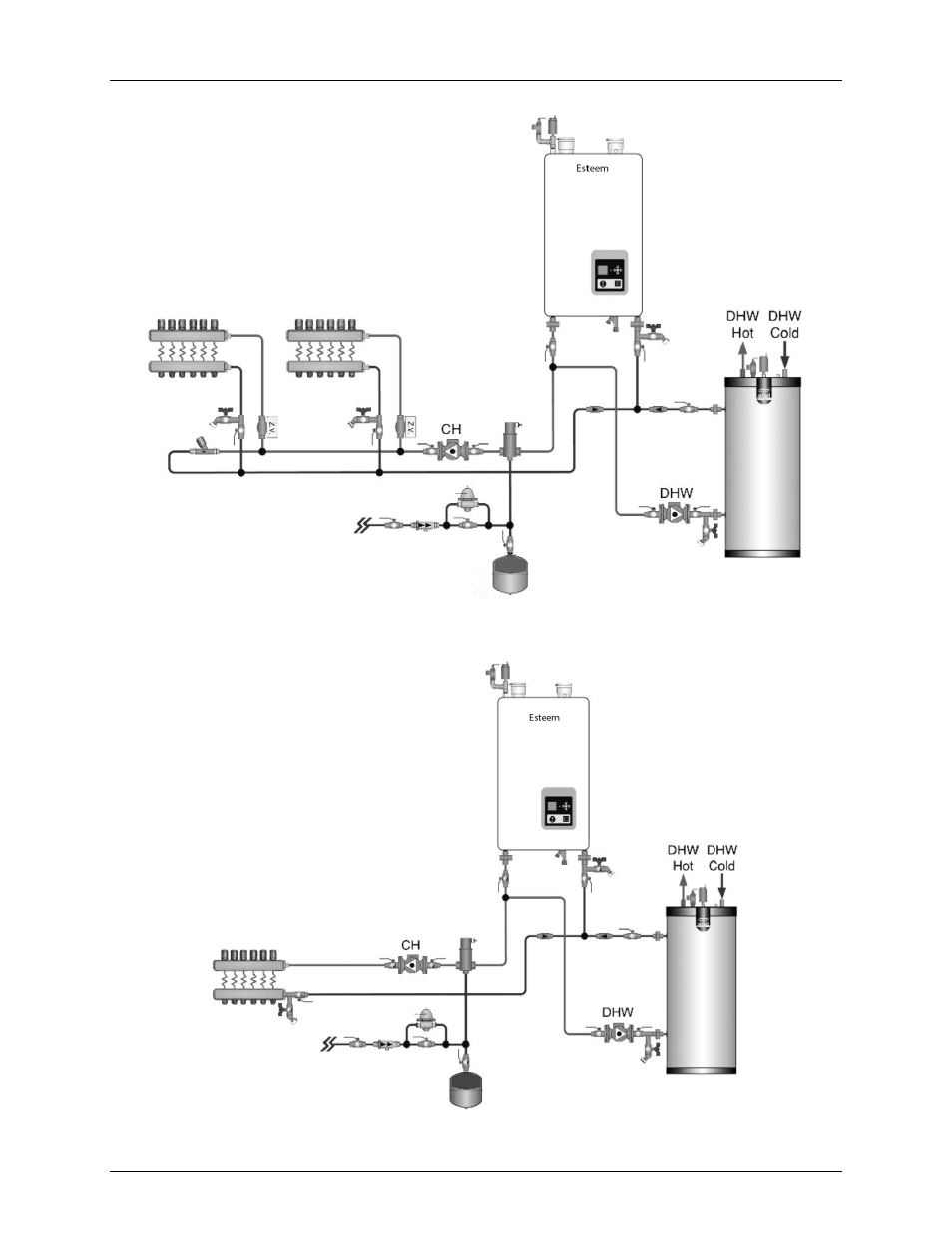

Figure 5-7: System Piping –
Multiple Zone Valve with Single System/Boiler Circulator
Figure 5-8: System Piping –
Single Zone System with Single System/Boiler Circulator
NOTE
Verify CH circulator is properly
sized to overcome the system
pressure drop and provide
adequate flow through the
boiler system.
NOTE
Verify CH circulator is properly
sized to overcome the system
pressure drop and provide
adequate flow through the
boiler system.
NOTE
Manifold mounted valve
actuators may be used in
lieu of zone valves.
NOTE
The boiler system piping
shown must be a “closed”
system to avoid any oxygen
contamination and potential
failure of the outer tank of the
Smart.
Page 39 of 188 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0089_0A
MC1 06/19/14 Ph.: 800-526-0288
