Introduction
The 6- and 9-Row Planters with Air-Pro
®
Seed Meters
have been designed with care and built by skilled
workers using quality materials. Proper setup,
maintenance, and safe operating practices will help the
customer get years of satisfactory use from the machine.
This manual will familiarize you with planning, unloading,
and assembly of this planter. Most operating information
is contained in the Operator manual.
Models
a
Covered
Topics Covered
This manual covers final assembly of the basic
YP625PD/TD/925TD planter, as containerized for
export, and some features and options.
Features/Options Covered Include:
• implement assembly
• dry fertilizer system installation
• coulter installation
• row cleaner installation
Topics Not Covered Include:
• monitor console installation (see 401-754M or
401-755M Operator manual)
• marker installation (see 113-870M)
Description of Unit
The YP625/925 Planters are integrated precision
seeding implements. Seed is gravity fed from the stan-
dard row hoppers, and singulated with the Air-Pro
®
seed
meters. Separate hoppers meter dry fertilizer to coulters.
The YP625PD is pull-type. The YP625TD is 2-point with
lift-assist. The YP925TD is 3-point.
Document Family
Note: Marker installation is not covered in this
Pre-Delivery manual. Rely on the manual above.
Note: Save, and deliver to the customer, all documents.
YP625PD18TP110 6 triple-row, pull-type, 18 openers,
110 cm spacing
YP625TD12TR110 6 twin-row, two-point, 12 openers,
110 cm spacing
YP625TD18TP110 6 triple-row, two-point, 18 openers,
110 cm spacing
YP925TD0965 9 single rows, three-point,
9 openers, 65 cm spacing
a. North American models YP425A, YP625A and YP825A are covered in manuals 401-651M and 401-652M.
Null4:

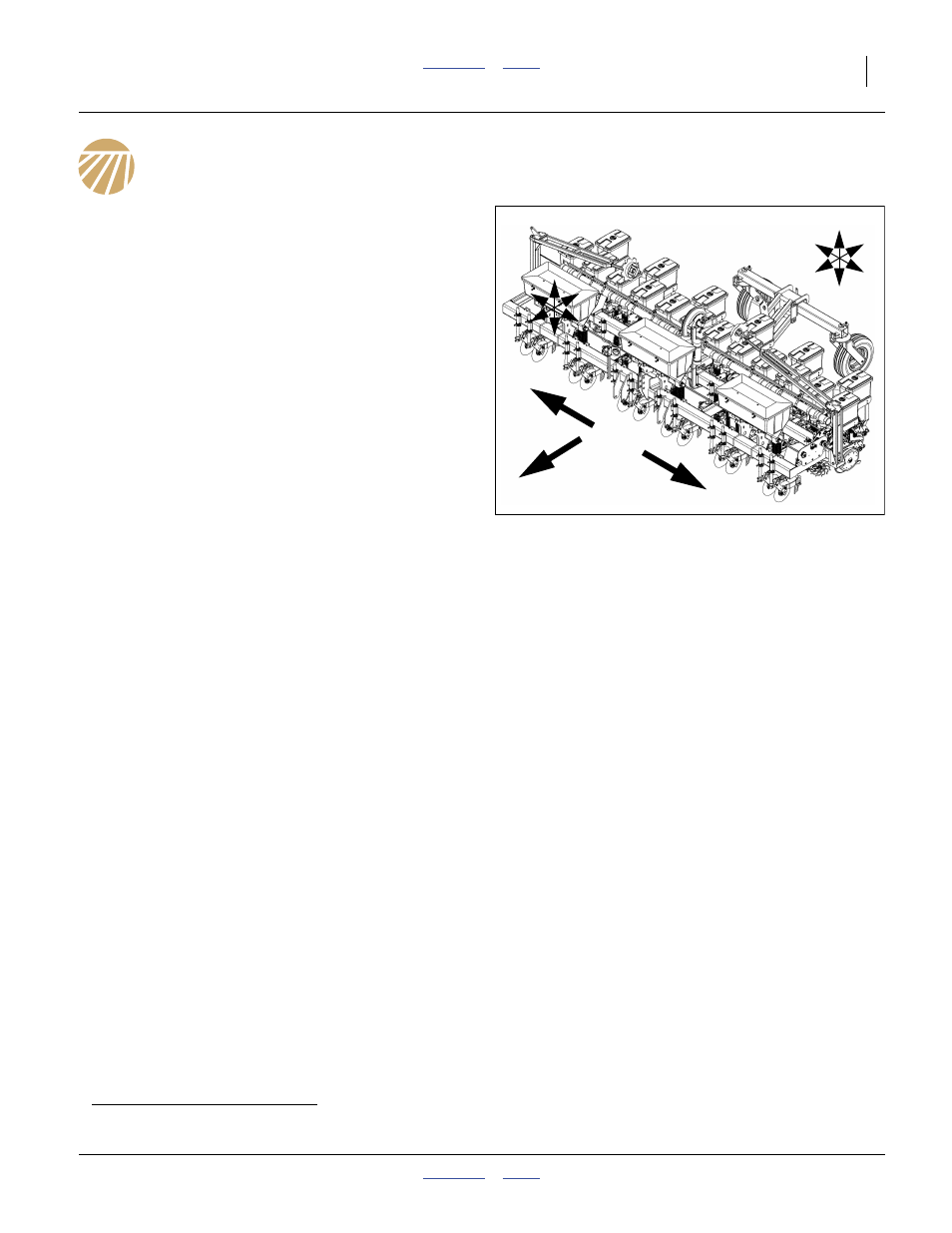

Figure 1
YP625TD Planter
31793
U
D
F
B
L
R
R
L
U
D
F
B
L
R
401-754Q Export Pre-Delivery Manual (this
document)
401-754B Seed Rate Manual
401-754M YP625PD Operator manual
401-754P YP625PD Parts Manual
401-755M YP625TD and YP925TD Operator Manual
401-755P YP625TD and YP925TD Parts Manual
Bulletin A-27 Dwyer Magnehelic gauge instructions
11001-1378 DICKEY-john
®
PM 300 - 332 - 400 Planter
Monitors Operator’s Manual
113-870M Marker Installation (Option)
204-085M-A Rigid Row Cleaner manual (Option)
207-016M Terra-Tine™ Row Cleaner manual (Option)
