Great Plains Manufacturing, Inc. Contents Index Rack Unloading 11
07/05/2011 Contents Index 401-754Q
Start with the top mainframe rack section.
Dismount Relocated Drive Parts
Refer to Figure 11
If the remainder of the drive system looks exactly as
depicted in Figure 11, continue at “Unbolt Top Rack
Section” on page 11.
5. Some components may have been relocated for
shipment (to avoid interference with a planter
stacked above).
Locate the two seed drive sprocket trees
(
and ).
Locate the dry fertilizer jackshaft and jackshaft
bracket , and the fertilizer sprocket tree .
6. Dismount any relocated drive system components,
and place them in the staging area for this planter.
Null4:
Unbolt Top Rack Section
For the bottom rack section, skip to “Unfasten
Mainframe” on page 13.
Refer to Figure 12
Note: It is safe to un-bolt rack sections before attaching
hoist lines. Each corner joint has a locator hole
above and a peg below to keep the sections from
sliding apart.
Null4:
Refer to Figure 13
7.
Remove all (8 to 16) nuts, lock washers and bolts
securing the rack section to the next section below.
These fasteners are not re-used.
Null4:
Null4:

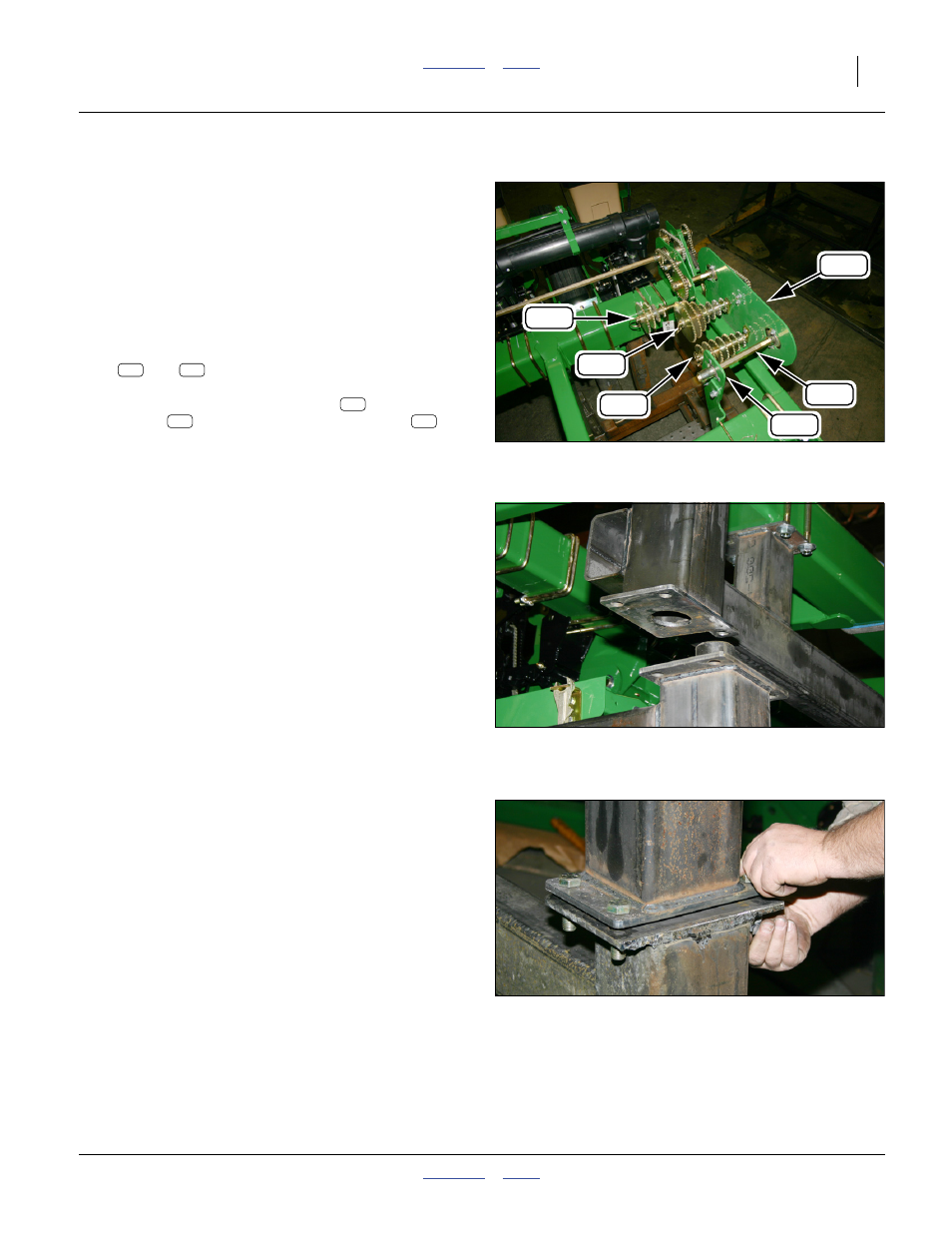

Figure 11
Complete Drive Systems
Q0006
207
227
213
163
174
229
163 174
229
227 207
Null4:
Figure 12
Post Locator Hole and Peg
Q0008
Null4:
Figure 13
Release Flanges
Q0009
