Attach Hoist Lines
8. Secure hoist lines to the rack frame, or to the
planter frame, as follows:
Null4.aac: anchor only
Null4:
Remove Rack Section
Refer to Figure 16
9.
Carefully lift the rack section off the stack. Minimize
sway, to prevent lower portions of lifted planter from
striking planter below.
Null4:
Rack Frame:
Refer to Figure 14
Loop around the corner post of the section being
removed, under the end cross-tubes.
or
Planter Frame:
Refer to Figure 15
Loop around the front tool bar inside the end tubes
and just outboard of the ribs. Loop around the outer
gauge wheel weldment at rear.
Loss of Control Hazard:
Do not loop lines around 2-point or 3-point gauge wheel
arms if the spring yoke is disconnected (as shown in
Figure 19 on page 14). An arm could snap up violently,
and the rear of the main frame fall, when bolts are
removed at step 15 on page 14.
Null4:

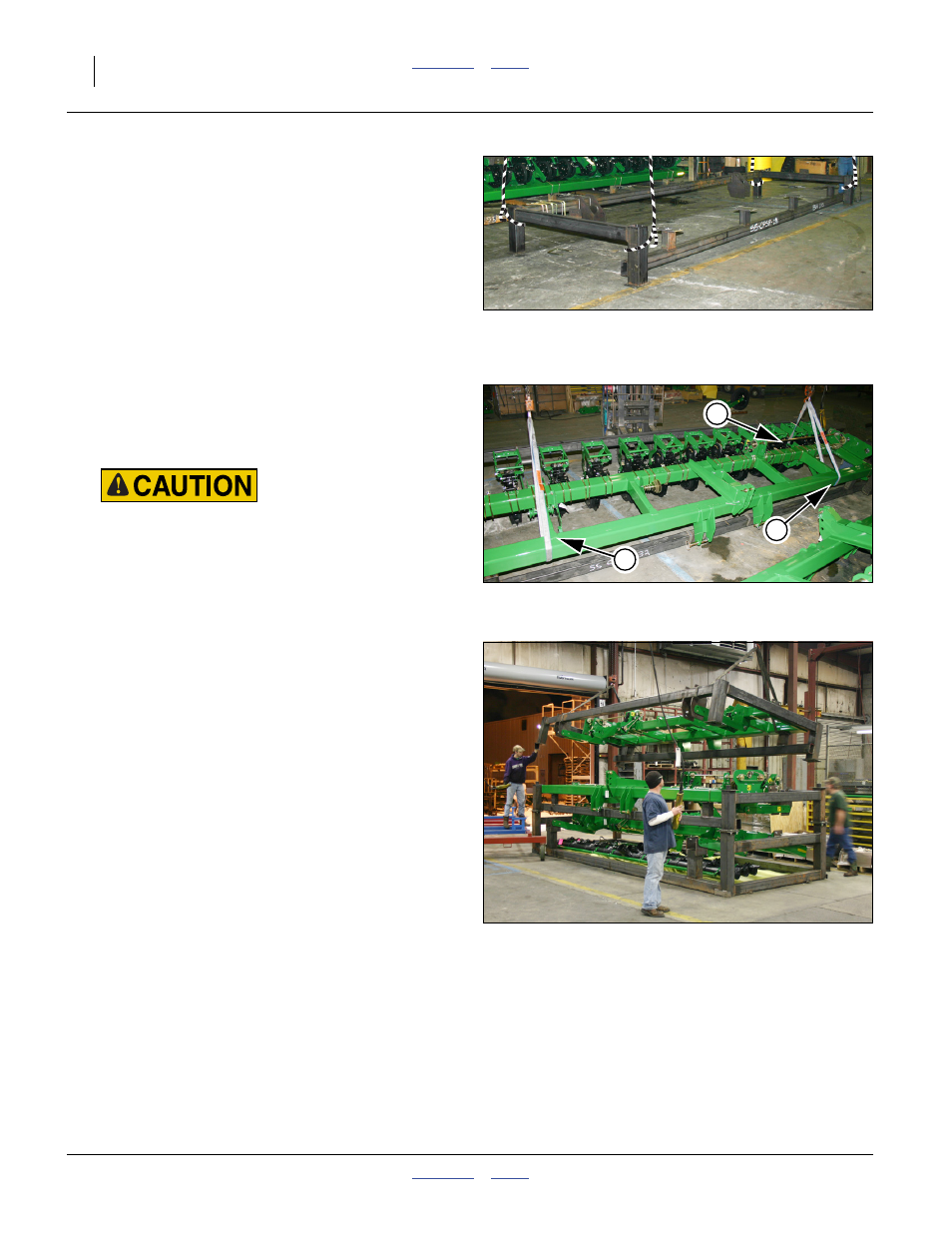

Figure 14
Rack Hoist Points
Q0010
Null4:
Figure 15
Planter Hoist Points
Q0011
1
1
2
Null4:
Figure 16
Hoist Rack Section
Q0012
