Seal Fertilizer Meters
Refer to Figure 110 and Figure 111
If meter gaps are already sealed with silicone sealant,
continue at “Apply Fertilizer Decals”.
247. Apply silicone sealant to the left and right
meter-hopper gap areas.
Allow the sealant to penetrate the gap, but avoid
injecting so much that it drips into the fertilizer
meters.
Null4:
248. Smooth the exterior application into a fillet shape.
Inside the hopper, wipe off any excess silicone that
protrudes into the meter inlet.
Null4:
Apply Fertilizer Decals
Refer to Figure 112, page 84 and page 96
If the lids already have decal part number 848-520C,
continue at “Install Seed Hoppers” on page 58.
249. If the lids were not cleaned at step 242 on page 52,
do so now. Allow any fluids to dry.
250. Select three:
848-520C DECAL PIC CHEMICAL
Remove the backing paper. Apply the decals at the
front center of each hopper lid
. Remove any air
bubbles by smoothing from center to edge.
Note: Connection of fertilizer drop hoses is done at
step 320 on page 72.
Null4:
Null4:

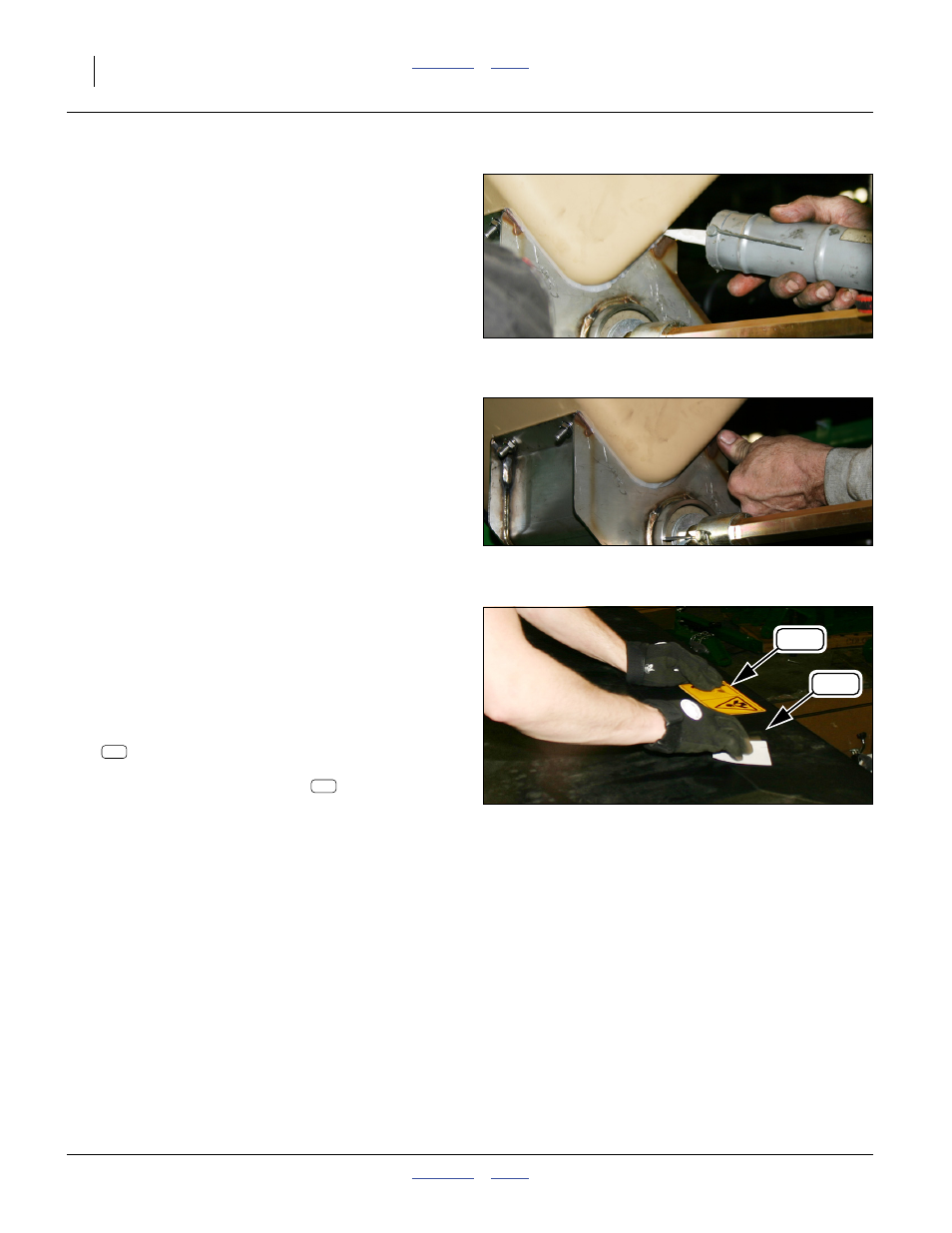

Figure 110
Apply Silicone Sealant
Q0078
Null4:
Figure 111
Smooth Silicone Sealant
Q0079
Null4:
Figure 112
Apply Lid Decal
Q0081
