Great Plains Manufacturing, Inc. Contents Index Planter Assembly 69
07/05/2011 Contents Index 401-754Q
Mount Coulters with Offset Weldments
This applies only to twin-row model YP625TD12TR110.
For all other models, continue at “Mount Rear-Face
Offset Coulters”.
Refer to Figure 138 and Figure 137 on page 68
304. Select two:
204-254S YP LOW PRO 4 OFFSET SHANK ASY
each of which includes:
1@
204-253H YP LOW PRO 4 OFFSET SHANK
1@ 204-270H YP ATTACHMENT WLD PIN
2@ 805-255C PIN ROLL 3/8 X 2 1/2 PLT
Disassemble this kit.
305. With no pin present, insert the top of the shank
shaft through both clamps . Drive a pin
through the top hole of the shaft.
306. Align the coulter casting of the coulter arm
assembly with the holes in the lower plates of the
shank
. Insert the pin weldment through the
plates, the coulter casting and the coulter stop .
Secure with pin .
Coulter height is set at “Set Coulter Alignment and
Height” on page 71.
Continue at “Mount Coulters with Straight Shanks” on
page 70.
Mount Rear-Face Offset Coulters
This applies only to 3-point triple-row model
YP625TD18TP110. For all other models, continue at
“Mount Front-Face offset Coulters” on page 70.
Refer to Figure 139 and Figure 137 on page 68
307. Select two:
820-133C 1 1/2 X 26 OFFSET SHANK
805-043C PIN SPIROL 3/8X2 1/2 PLAIN
If the pins are in the shank , remove them.
308. With no pin present, insert the longer end of the
shank through both clamps . Drive a
pin through the top hole of the shaft.
309. Slide the coulter casting and coulter stop
of the coulter arm onto the shank .Secure with
pin .
Coulter height is set at “Set Coulter Alignment and
Height” on page 71.
Continue at “Mount Coulters with Straight Shanks” on
page 70.
Null4: .

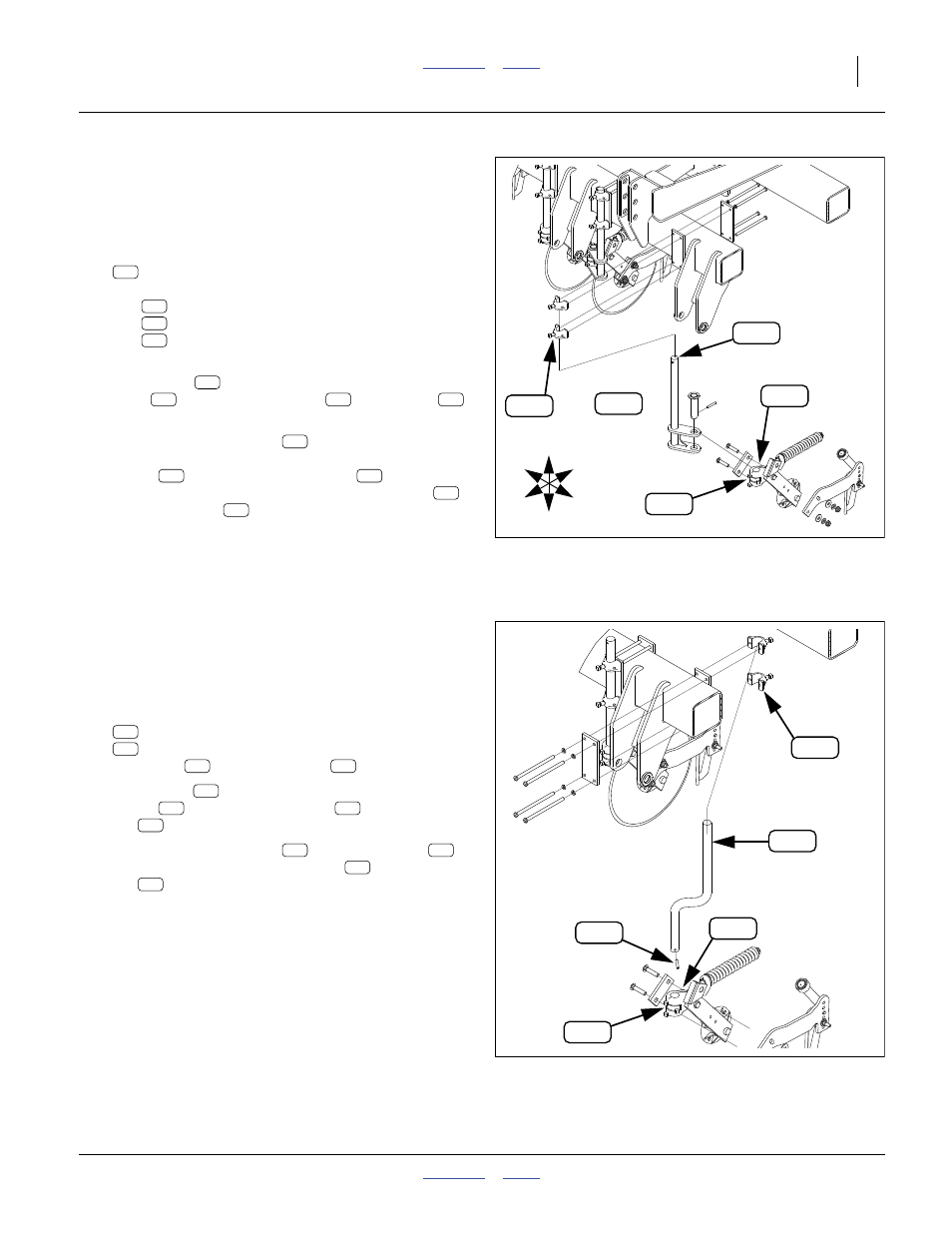

Figure 138
204-254S Offset Weldment
Q0105
U
D
F
B
L
R
133
{
126
132
141
109
133
132
135
336
336
132 126 336
141
132 135
109
336
Null4: .
Figure 139
Rear-Face Offset Shank
Q0106
377
323
126
141
109
377
323
323 377
323
377 126
323
141 109
132
336
