Great Plains Manufacturing, Inc. Contents Index Planter Assembly 21
07/05/2011 Contents Index 401-754Q

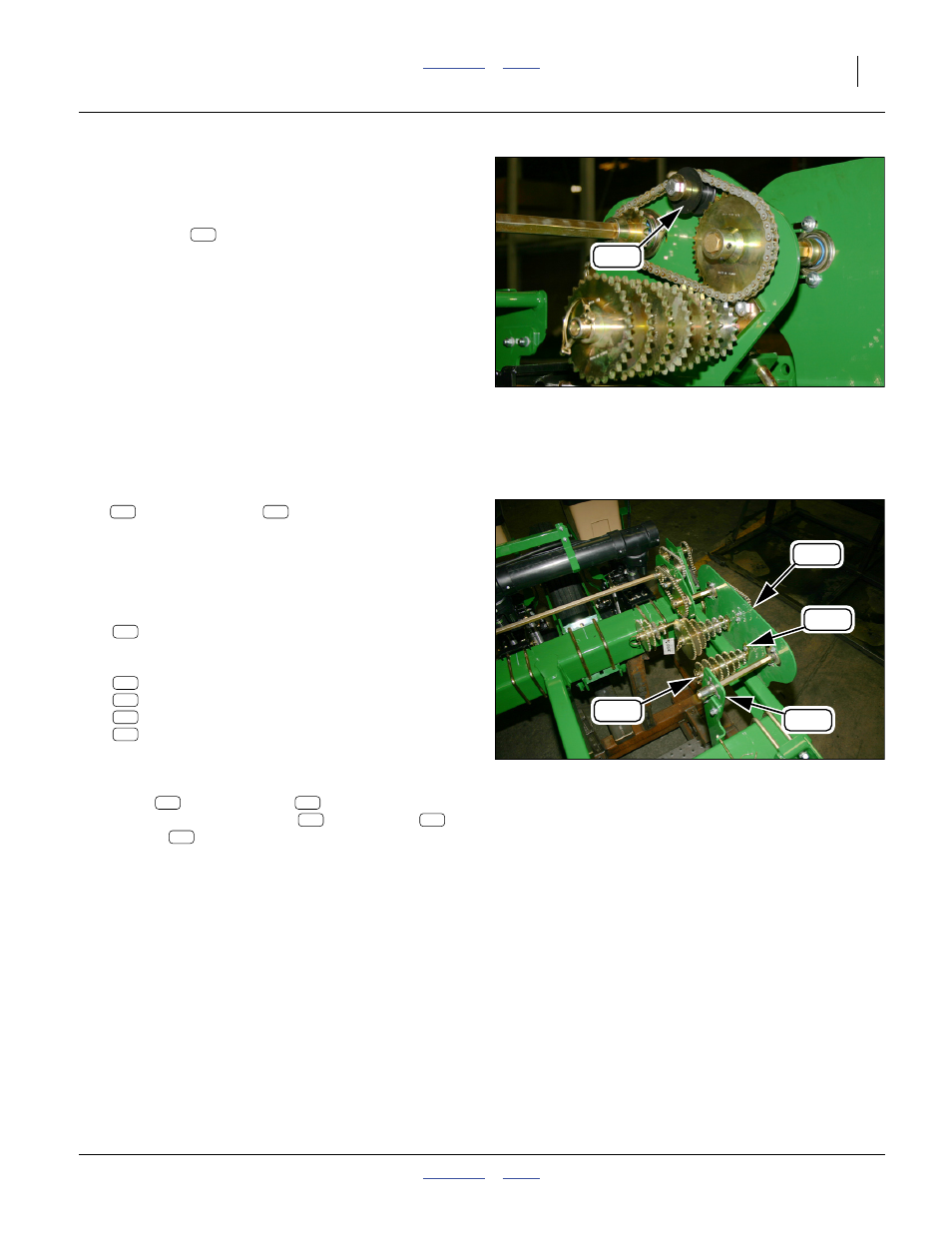

Check Seed Drive Idler
Refer to Figure 36
57. Inspect the drive systems at the left end of the
planter. If the seed drive jackshaft chain is running
under idler
, remove the idler, and re-install it
with the chain routed over the idler.
Null4:
Assemble Fertilizer Transmission
Refer to Figure 37
Inspect the fertilizer drive to see if both the sprocket
tree
and the jackshaft are in place.
Mount Fertilizer Sprocket Tree
If the fertilizer transmission is already completely
installed, continue at “Adjust Gauge Wheel Arms” on
page 23.
58. Select the:
407-023S SPKT STORAGE ASSY FERT
This tree normally has seven sprockets on it, and
includes fasteners (only the bolt is shown):
802-022C HHCS 3/8-16X1 1/2 GR5
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Attach the tree to the lower front hole on the left side
of the fertilizer transmission plate (“fertilizer
case”
). Insert the bolt through the foot of
the tree. Add a flat washer , lock washer
and nut (not shown).
Null4:
Null4:
Figure 36
Correct Jackshaft Idler
Q0007
366
366
Null4:
Figure 37
Complete Fertilizer Drive
Q0006
213
207
227
257
207 227
207
257
308
309
285
213 257
308 309
285
