70 Great Plains Manufacturing, Inc. Contents Index YP625PD/TD/925TD
401-754Q Contents Index 07/05/2011
Mount Front-Face offset Coulters
This applies only to 9-row model YP925TD0965. For all
other models, continue at “Mount Coulters with
Straight Shanks”.
Refer to Figure 140 and Figure 137 on page 68
310. Select two:
820-133C 1 1/2 X 26 OFFSET SHANK
805-043C PIN SPIROL 3/8X2 1/2 PLAIN
If the pins are in the shank , remove them.
311. With no pin present, insert the longer end of the
shank through both clamps . Drive a
pin through the top hole of the shaft.
312. Slide the coulter casting and coulter stop
of the coulter arm onto the shank .Secure with
pin .
Coulter height is set at “Set Coulter Alignment and
Height” on page 71.
Null4:
Mount Coulters with Straight Shanks
Refer to Figure 141 and Figure 137 on page 68
313. Select all of:
204-026D SHANK 1 1/2D X 22 FERT COULT
each of which includes or requires two:
805-043C PIN SPIROL 3/8X2 1/2 PLAIN
If the pins are in the shanks , remove them.
314. With no pin present, insert the longer end of the
shank through both clamps . Drive a
pin through the top hole of the shaft.
315. Slide the coulter casting and coulter stop
of the coulter arm onto the shank .Secure with
pin .
Coulter height is set at “Set Coulter Alignment and
Height” on page 71.
Null4:
Null4: .

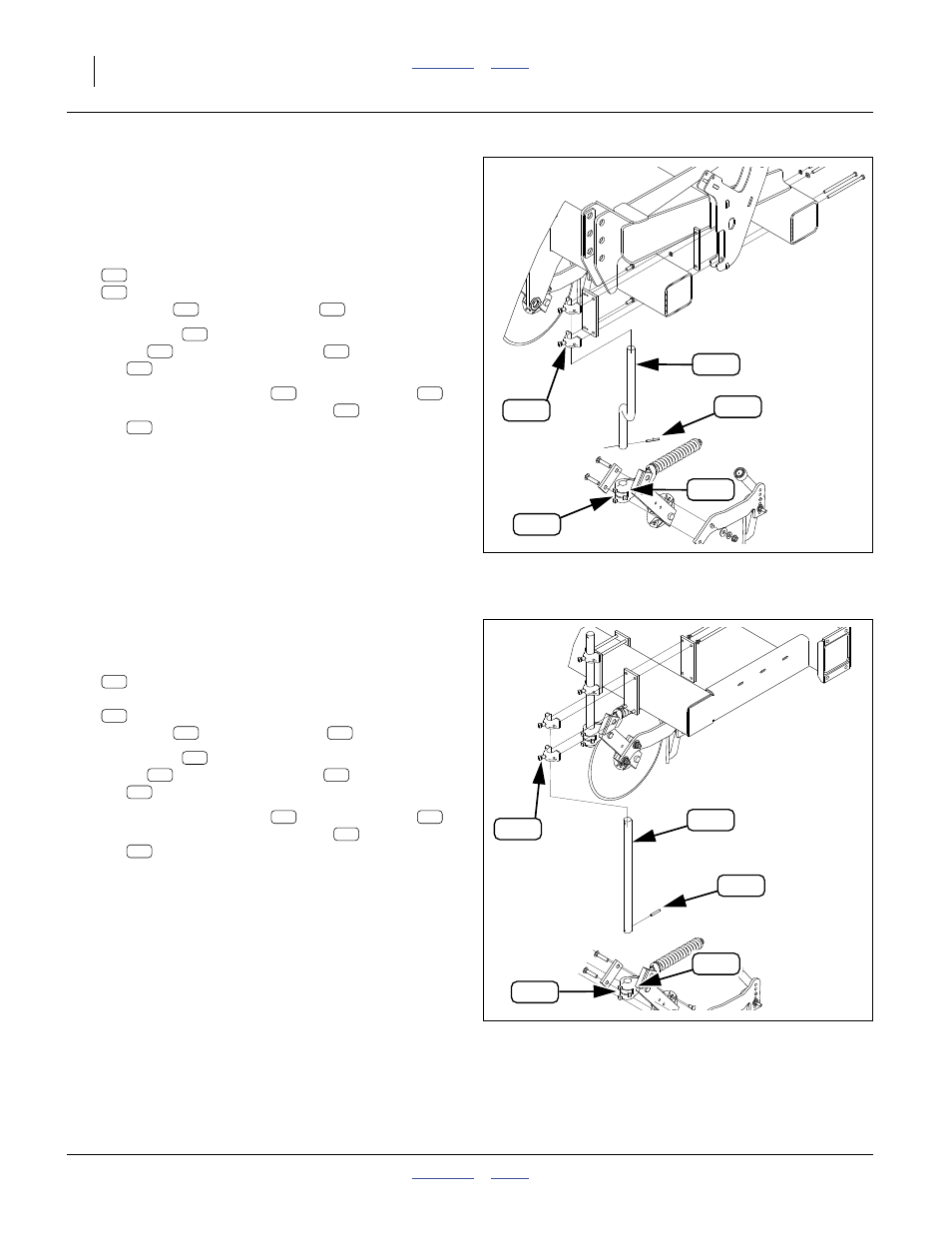

Figure 140
Front-Face Offset Shank
Q0107
377
323 126
141
109
377
323
323 377
323
377 126
323
141 109
132
336
Null4: .
Figure 141
Straight Coulter Shanks
Q0104
124
323
141
109
126
124
323
323 124
323
377 126
323
141 109
132
336
