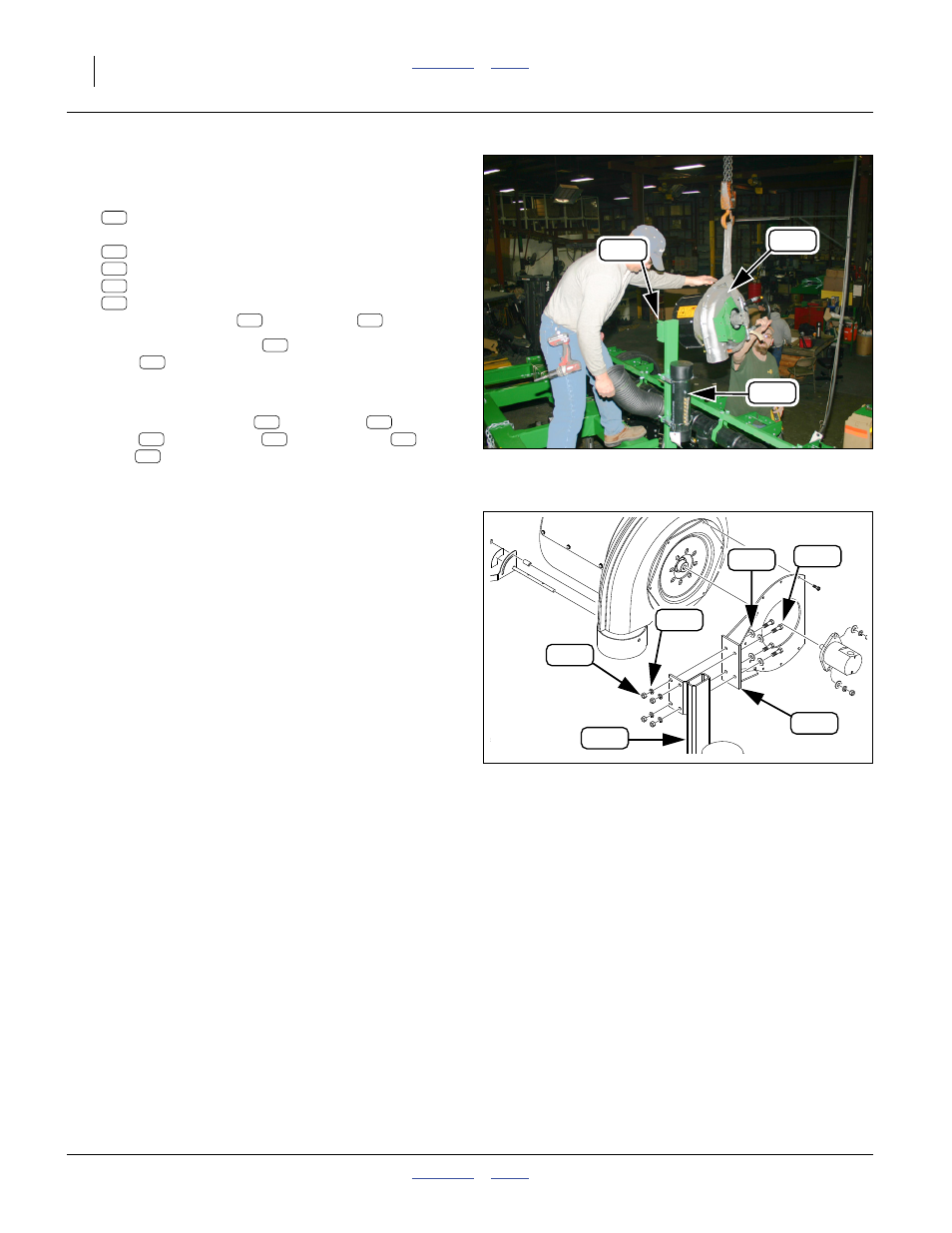

Install Hydraulic Fan
Refer to Figure 85
177. Select one:
401-744K YP 4,6,8 FAN ASSEMBLY 6"
and four sets:
802-079C HHCS 3/8-16X1 1/4 GR5
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Place a flat washer on each bolt .
178. Hoist the fan assembly to the top of the
mast . Orient the fan with the cage to the right
and the outlet facing straight down.
Refer to Figure 86
179. Secure the fan mount
to the mast with
bolts +flat washers , lock washers and
nuts .
Null4:
anchor-only
Null4:
Null4:
Figure 85
Position Fan
Q0062
355
151
153
153
263
308
309
285
308 263
153
151
152 151
263 308 309
285
Null4:
Figure 86
Attach Fan
31788
152
285
309
263
308
151
