Adjust Gauge Wheel Arms
Pull-Type Gauge Wheel Adjustment
If this is a 3-point planter, continue at “3-Point Gauge
Wheel Adjustment” on page 24.
Refer to Figure 40
For shipment, the pull-type lift cylinder mount plates
)
may be inverted from their field position. Adjust them to
field position prior to delivery.
63. Inspect how the cylinders are mounted at all four
gauge wheels. Skip any that have the plates
402-094D CYL MOUNT PLATE, GAUGE WHEEL
installed as shown in the right panel of Figure 38.
For each gauge wheel that needs adjustment:
64. Make sure that the gauge wheel arm is free to move
downward. If the planter is resting on the arm, this
adjustment cannot be made.
Note: Be prepared to support the arm and cylinder, which
are likely to move downward when the last bolt is
removed.
65. At one side, remove and save four sets:
802-051C HHCS 5/8-11X1 1/2 GR5
804-022C WASHER LOCK SPRING 5/8 PLT
66. Invert the orientation of the plates by rotating
them on the cylinder trunnions, placing the flat edge
down and the crowed edge up. Secure with bolt
and lock washer
.
Continue at “Install Gauge Wheels” on page 24.
Null4:
Null4:

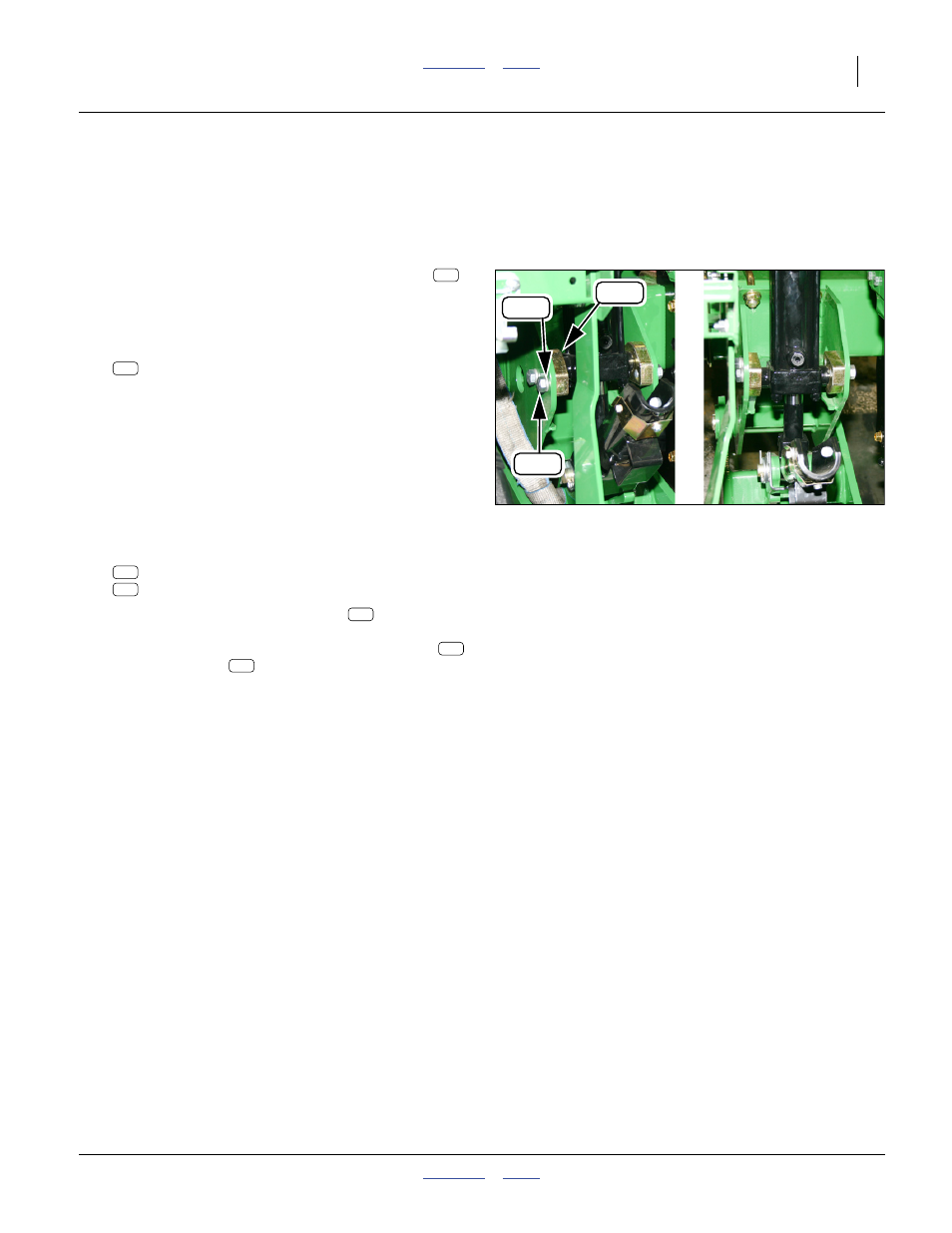

Figure 40: Trunnion Plates
Shipment (left) - Field (right)
