60 Great Plains Manufacturing, Inc. Contents Index YP625PD/TD/925TD
401-754Q Contents Index 07/05/2011
Mount Seed Hoppers
If any hoppers have decals pre-applied, check page 84
or page 96 for the location of those hoppers on the
planter.
Refer to Figure 123
Install Front Hoppers
If the planter model is YP925TD0965, or all front hoppers
are already installed, continue at “Install Rear
Hoppers”.
267. Select one:
403-465K FRONT SEED HOPPER ASSY YP4-6-8
Check that the hopper has a front weldment ,
with exit tube angled to the rear.
268. Tip the hopper assembly forward. Engage the
lower hopper hooks on the round cross-tube of the
support weldment
. Lower the rear end into the
support. Secure with latch .
269. Repeat step 267 and step 268 for all front hoppers.
Install Rear Hoppers
If all rear hoppers are already installed, continue at
“Install Stiffeners and Lids”.
270. Select one:
403-466K REAR SEED HOPPER ASSY YP4-6-8
Check that the hopper has a rear weldment ,
with exit tube angled to the front.
271. Tip the hopper assembly forward. Engage the
lower hopper hooks on the round cross-tube of the
support weldment
. Lower the rear end into the
support. Secure with latch .
272. Repeat step 270 and step 271 for all rear hoppers.
Install Stiffeners and Lids
Refer to Figure 124
If stiffeners and lids are already installed, continue at
“Install Seed Hoses” on page 61.
273. Select one:
403-739D HOPPER STIFFENER
Insert this into the grooves molded into the centers
of the inside front and rear hopper walls. Hook the
breaks over the hopper lid.
274. Select one:
817-264C 96 CHEMICAL HOPPER LID
With the “horizon” of the top logo forward, and the
“furrows” of the top icon to the rear, hook both front
lid lugs on the hopper lip. Pull the single rear lid lug
over the rear hopper lip. See the 401-754M or
401-755M Operator manual for further information
on hopper lids.
Null4:
Null4:

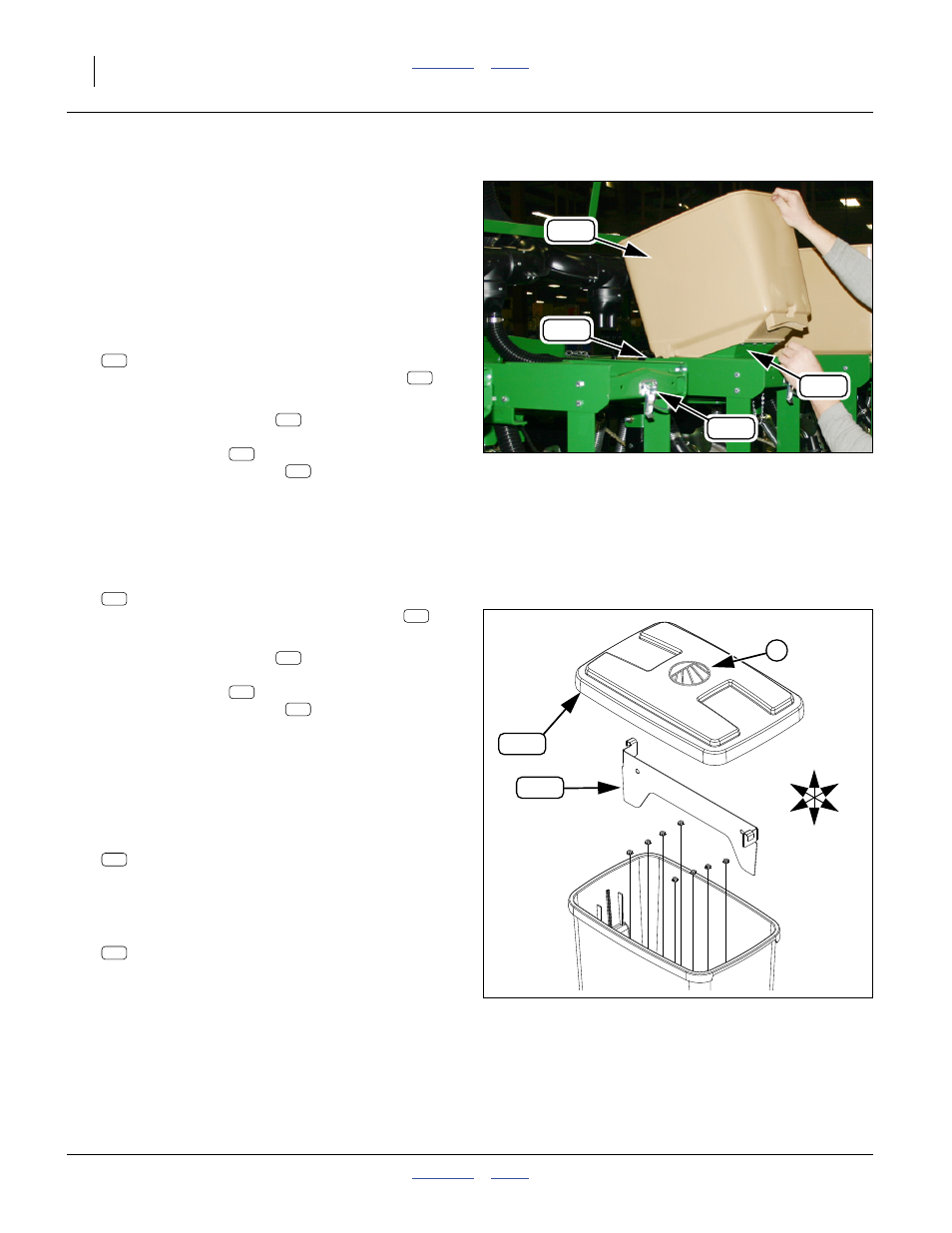

Figure 123
Installing a Rear Hopper
Q0087
246
189
192
190
188
191
188
192
246
Null4:
Figure 124
Stiffener and Lid
Q0085
364
U
D
L
R
B
F
203
2
189
190
189
192
246
203
364
