56 Great Plains Manufacturing, Inc. Contents Index YP625PD/TD/925TD
401-754Q Contents Index 07/05/2011
TD: Install Three-Point SMV
Refer to Figure 115
If the reflector
is already installed on the mount ,
continue at step 256.
255. Select one each:
818-055C DECAL SLOW MOVING-GALV. BACKED
119-300D SMV BLADE MOUNT
and two sets:
801-018C SCREW RD HD 1/4-20 X 5/8
804-006C WASHER LOCK SPRING 1/4 PLT
803-006C NUT HEX 1/4-20 PLT
Insert the screws through the reflective face of
the SMV . Add the mount , with the break
toward the wide (lower) edge of the SMV and away
from the SMV. Secure with lock washers
and
nuts .
256. Select two sets:
802-092C RHSNB 5/16-18X3/4 GR5
804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT
With the reflective face to the rear, install the
SMV
on the rear face of the lift-assist pivot
tab .
Null4: .

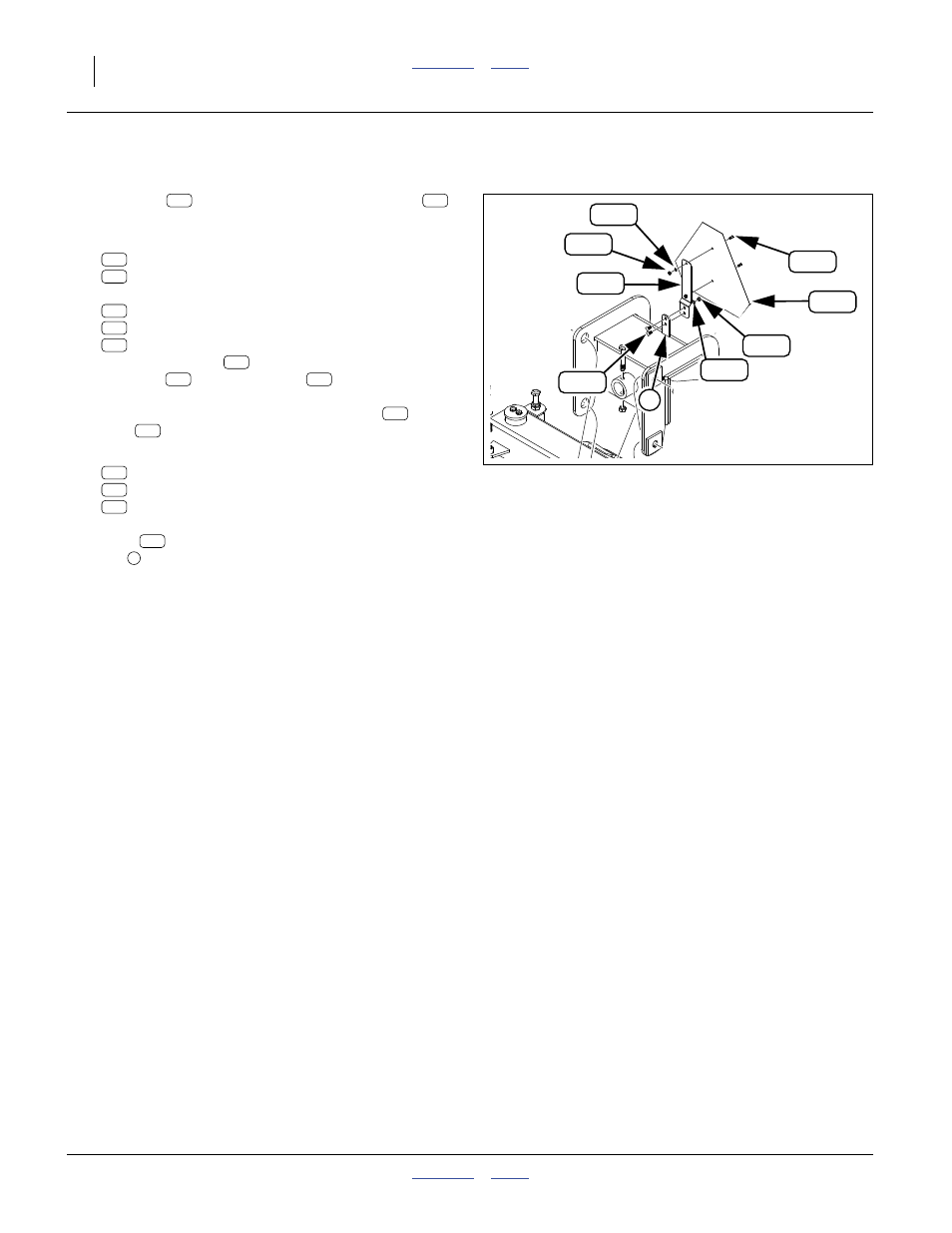

Figure 115
Install 3-Point SMV
31797
307
284
375
251
102
283
306
267
1
375 102
375
102
251
306
283
251
375 102
306
283
267
307
284
375
1
