Install Row Cleaners (Option)
Have the planter Operator manual (401-754M or
401-755M) available for initial row cleaner adjustment.
Refer to Figure 127
For Terra-Tine™ row cleaners, continue below. For rigid
(Martin) row cleaners continue at “Install Rigid Row
Cleaners”.
Install Terra-Tine™ Row Cleaners
Have manual 207-016M available for row cleaner
assembly and some installation details.
Double Terra-Tine™ row cleaners mount ahead of the
rear tool bar; the same tool bar on which the 25 Series
row units are mounted.
Refer to Figure 127
Row cleaners are intended to align on nominal row
spacing center-lines; this is:
• row cleaner pair center-line ahead of center-line of
single-row units (YP925TD0965)
• row cleaner pair center-line ahead of pair center-line
of twin-row units (YP625TD12TR110)
• row cleaner pair center-line ahead of center row of
triple-row units (YP625PD18TP110 and
YP625TD18TP110)
25 Series row unit mount usually interferes with a direct
center-line mounting. The Terra-Tine™ kits include an
offset shank
. The row cleaner mount is typically
installed to the outside of the center-line, but use any
placement, or shank angle, that provides the alignment.
Terra-Tine™ Parts ID
204-040D CLAMP PLT 7 BAR
207-055L YP FRAME MOUNT DOUBLE T-T
204-072D CLAMP SHANK 1 1/2 DIA
801-040C SCREW SQ HD 5/8-11 X 1 CUP PT
802-269C HHCS 1/2-13X9 GR5
804-015C WASHER LOCK SPRING 1/2 PLT*
820-133C 1 1/2 X 26 OFFSET SHANK
* Not visible in Figure.
Continue at “Install Coulters” on page 64.
Install Rigid Row Cleaners
See manual 204-085M-A for assembly and installation of
UMRCs (Unit-Mount Row Cleaners).
Rigid row cleaners mount on the front of the 25 Series
row unit shank. Placement is intended to be:
• Double UMRC: aligned with single-row opener, or
center row of a triple-row opener.
• Single UMRC: left singles mount on left units of
twin-rows. Right singles mount on right units of
twin-rows.
Null4:
Null4:

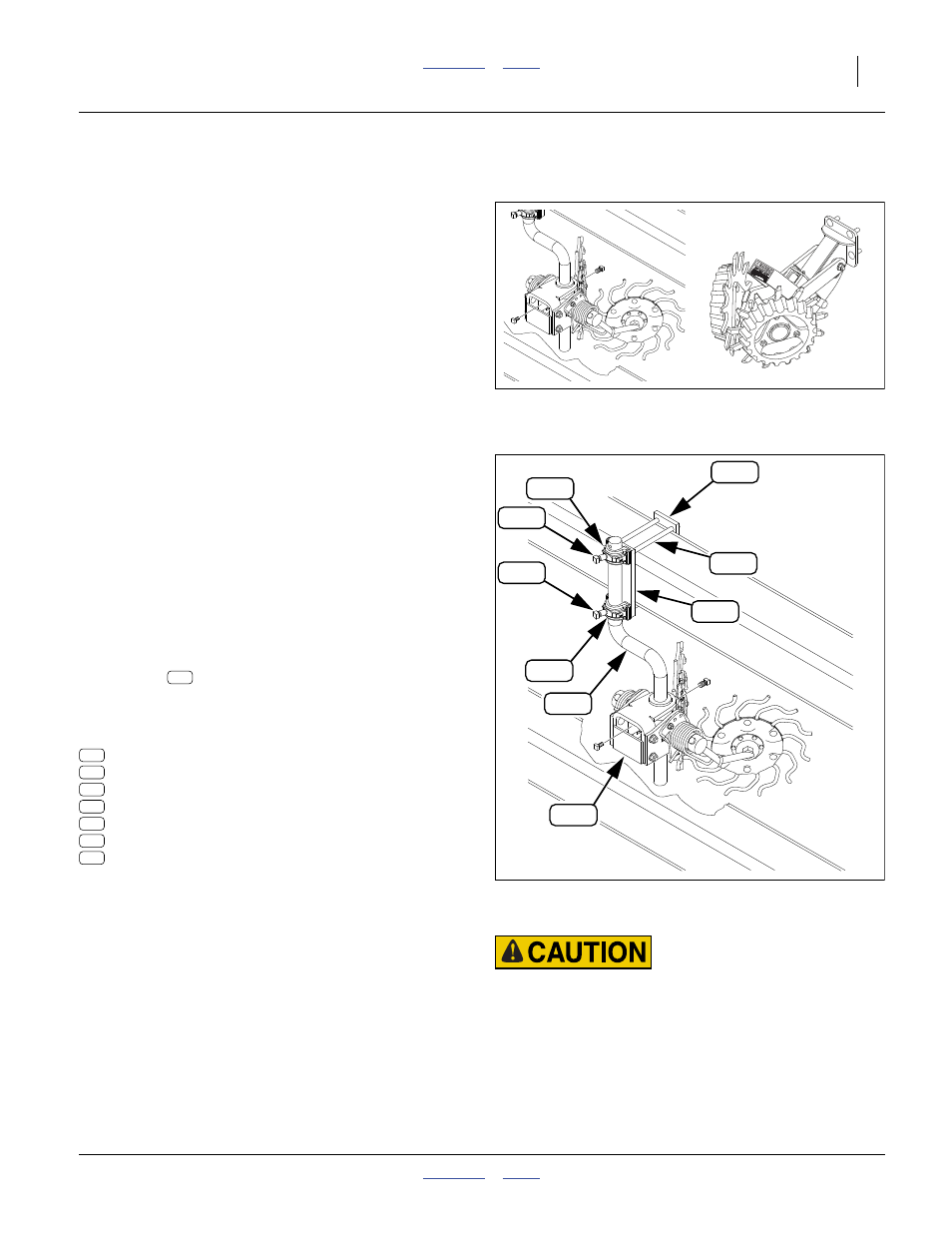

Figure 127: Row Cleaners:
Terra-Tine™ - Rigid (Martin)
31873
27345
Null4:
Null4:
Null4:
Sharp Object Hazard:
Observe all cautions in the 204-085M-A manual. Rigid row
cleaners are shipped with tine wheels dismounted. These
wheels have sharp tines.
Figure 128
Terra-Tine™ Installed
31873
377
125
125
140
126
252
274
126
252
377
125
140
126
252
274
310
377
