20 Great Plains Manufacturing, Inc. Contents Index YP625PD/TD/925TD
401-754Q Contents Index 07/05/2011
Install Drive Components
Refer to Figure 33
If both seed drive sprocket trees are already installed,
continue at “Check Seed Drive Idler” on page 21.
Null4:
Mount Range Sprocket Tree
Refer to Figure 34 (which has excess sprockets on the tree)
If the range sprocket tree is already installed, continue at
“Mount Transmission Sprocket Tree”.
55. Select the:
402-339S RANGE SPRKT STORAGE ASSY
This tree normally has four sprockets on it, and
includes fasteners (not all shown):
802-022C HHCS 3/8-16X1 1/2 GR5
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Attach the tree to the left side of the range support
weldment
. Insert the bolt through the foot
of the tree. Add a flat washer , lock washer
and nut (not shown).
Null4:
Mount Transmission Sprocket Tree
Refer to Figure 35
56. Select the:
402-021S SPRKT STORAGE ASSY
This tree normally has seven sprockets on it, and
includes fasteners (none shown):
802-022C HHCS 3/8-16X1 1/2 GR5
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Attach the tree to the lower rear hole on the left side
of the fertilizer transmission plate (“fertilizer
case”
). Insert the bolt (not shown) through
the foot of the tree. Add a flat washer , lock
washer and nut (not shown).
Null4:
Null4:

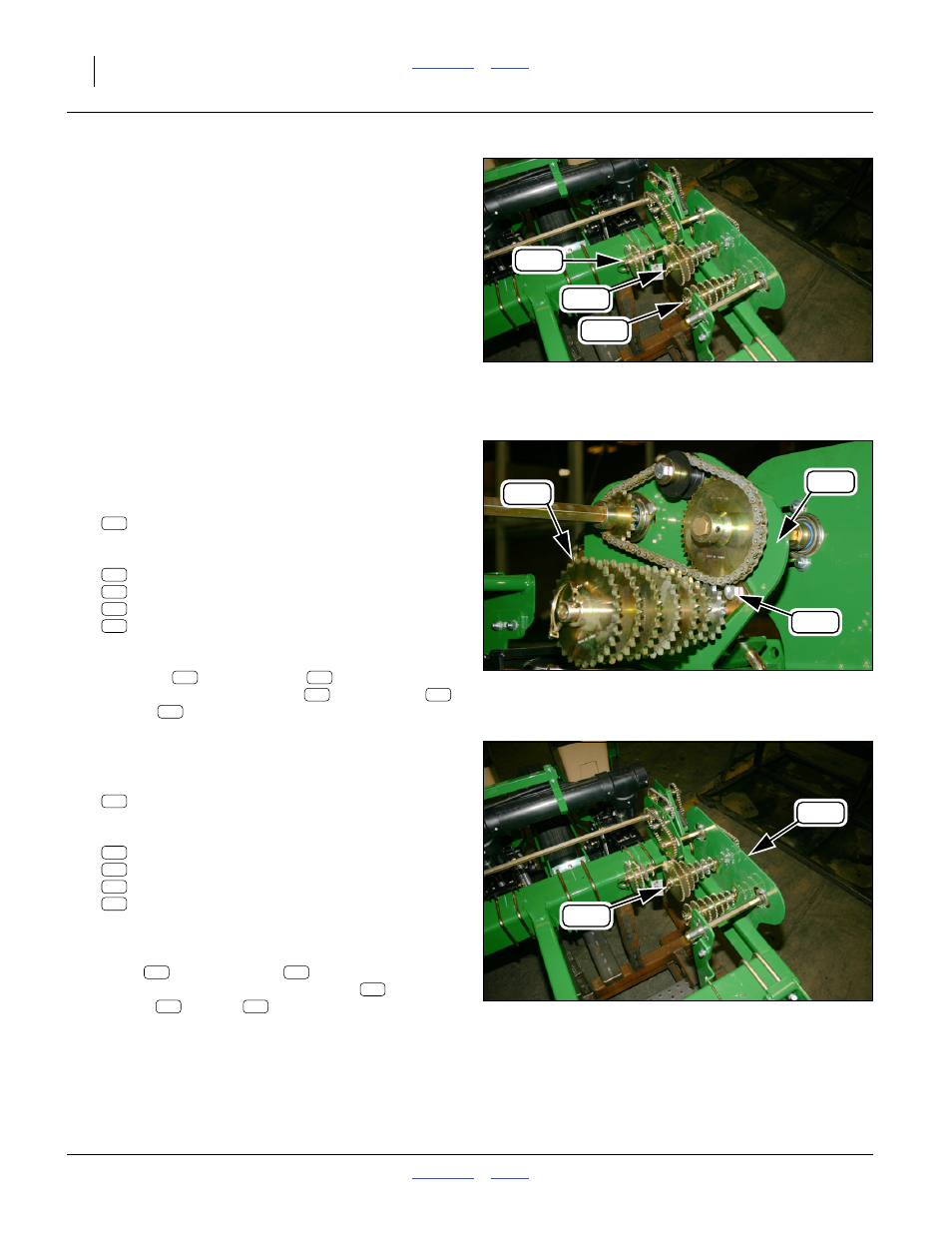

Figure 33
Complete Drive Systems
Q0006
174
163
207
Null4:
Figure 34
Range Sprocket Tree
Q0007
174
257
176
174
257
308
309
285
176 257
308 309
285
Null4:
Figure 35
Transmission Sprocket Tree
Q0006
163
213
163
257
308
309
285
213 257
308
309 285
