Chain Setup
Set chain clip orientation when mounting chains and
check it before adjusting slack on factory-installed
chains. Set or check initial slack on all chains prior to
delivery.
Chain Clip Orientation

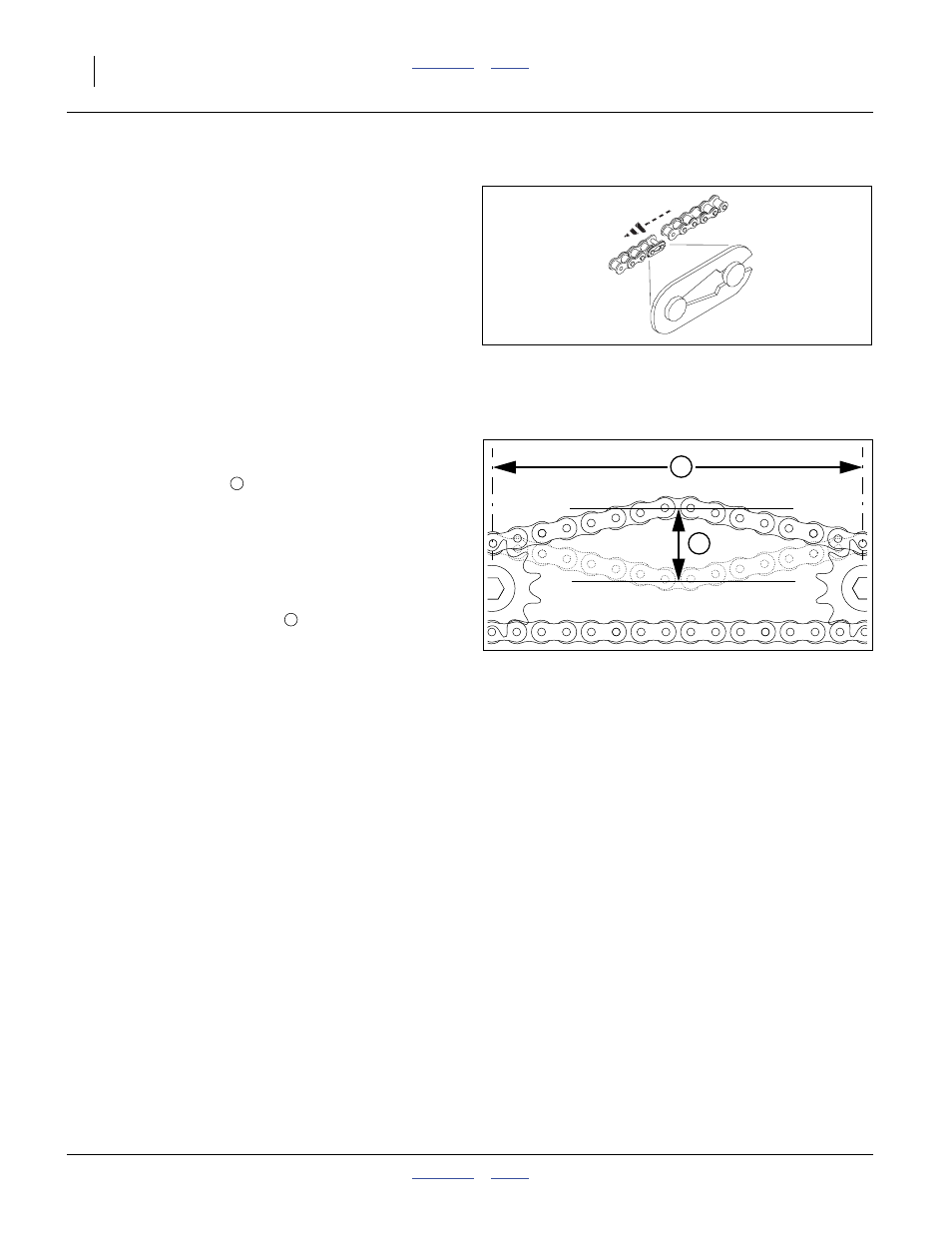

Refer to Figure 156 (arrow shows chain direction)
Whenever mounting a chain, make sure the clip at the
removable link is oriented to minimize snags.
Install clip with open end facing away from direction of
chain travel (shown by gray or striped arrows in chain
routing diagrams).
Chain Slack
Refer to Figure 157, which, for clarity, greatly exaggerates
slack, and omits the idlers.
1.
Measure the span for allowable slack:
Locate the longest span of each chain (usually the
span which does not run through the idlers).
2. Determine the ideal slack:
Long chains (over 91cm/36in): 2.1cm/m (
1 ⁄
4
in per ft)
Vertical short chains: 2.1cm/m (
1 ⁄
4
in per foot)
Horizontal short chains: 4.2cm/m (
1 ⁄
2
in per foot).
3. Measure the current slack :
Acting at a right angle to the chain span at the
center of the span, deflect the chain in both
directions. The slack is the distance of the
movement.
4. Adjust the idlers for ideal slack.
Null4:
.eps
60%
Figure 156
Chain Clip Orientation
26482
Null4:
.eps
50%
Figure 157
Measuring Chain Slack
27264
2
1
1
2
