Install Spring Wrench
Refer to Figure 116
This tool
and holder are installed on the left side
of the left (Row 1) row unit.
257. At the top rear, left side, of the row unit hopper
frame, remove and save two sets:
802-017C HHCS 3/8-16X1 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
258. Select one set:
403-175H WRENCH HOLDER
403-265D SPRING AND WHEEL WRENCH
805-088C PIN, HAIR COTTER 3/16 WIRE DIA
Remove the pin . Dismount the wrench .
Install the holder on the hopper frame. Stow the
wrench and secure with pin.
Null4:
Install Timing Tool
Refer to Figure 117
This tool
and holder are installed on the right
side of the left (Row 1) row unit.
259. At the top rear, right side, of the row unit hopper
frame, remove and save two sets:
802-017C HHCS 3/8-16X1 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
260. Select one set:
403-556H TIMING TOOL HOLDER
812-391C TIMING TOOL, 19 TOOTH
805-240C PIN LINCH 3/16 X 1 9/16 LONG
Remove the pin . Dismount the tool . Install
the holder on the hopper frame. Stow the
wrench and secure with pin.
Null4:
Null4: .

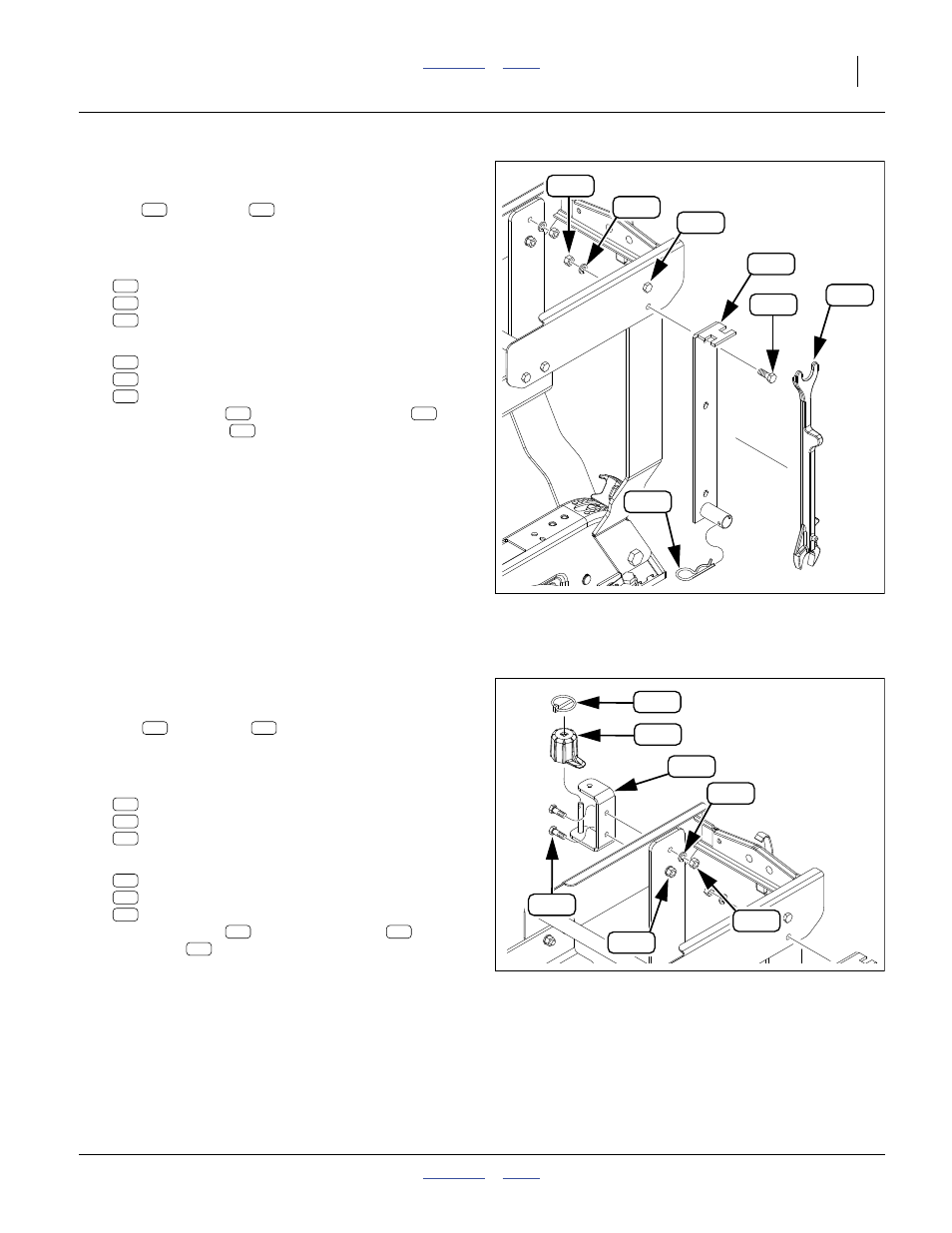

Figure 116
