Install Rear Face Mounts
This applies to YP625TD18TP110 only. For other
models, continue at “Install Standard (204-024K)
Mounts” on page 67.
Refer to Figure 132 and Figure 133
The shank
is installed at “Mount Coulters” on
page 68.
292. Select all of:
204-024K CLAMP KIT 7X7 BAR
293. For each, select one:
204-040D CLAMP PLT 7 BAR
and four sets:
802-269C HHCS 1/2-13X9 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
Place a washer on each bolt . Insert all
bolts through the plate . At a coulter alignment,
place the plate around the front tool bar from the
front face, just inside each 2-point hitch
weldment
.
Refer to Figure 133 (depicting the left side)
294. Select one:
204-040D CLAMP PLT 7 BAR
and two sets:
204-072D CLAMP SHANK 1 1/2 DIA
Place this second plate on the threaded ends
of the bolts . Position each shank clamp ,
and loosely hold them on by threading in the bolts.
Null4:
Null4: .

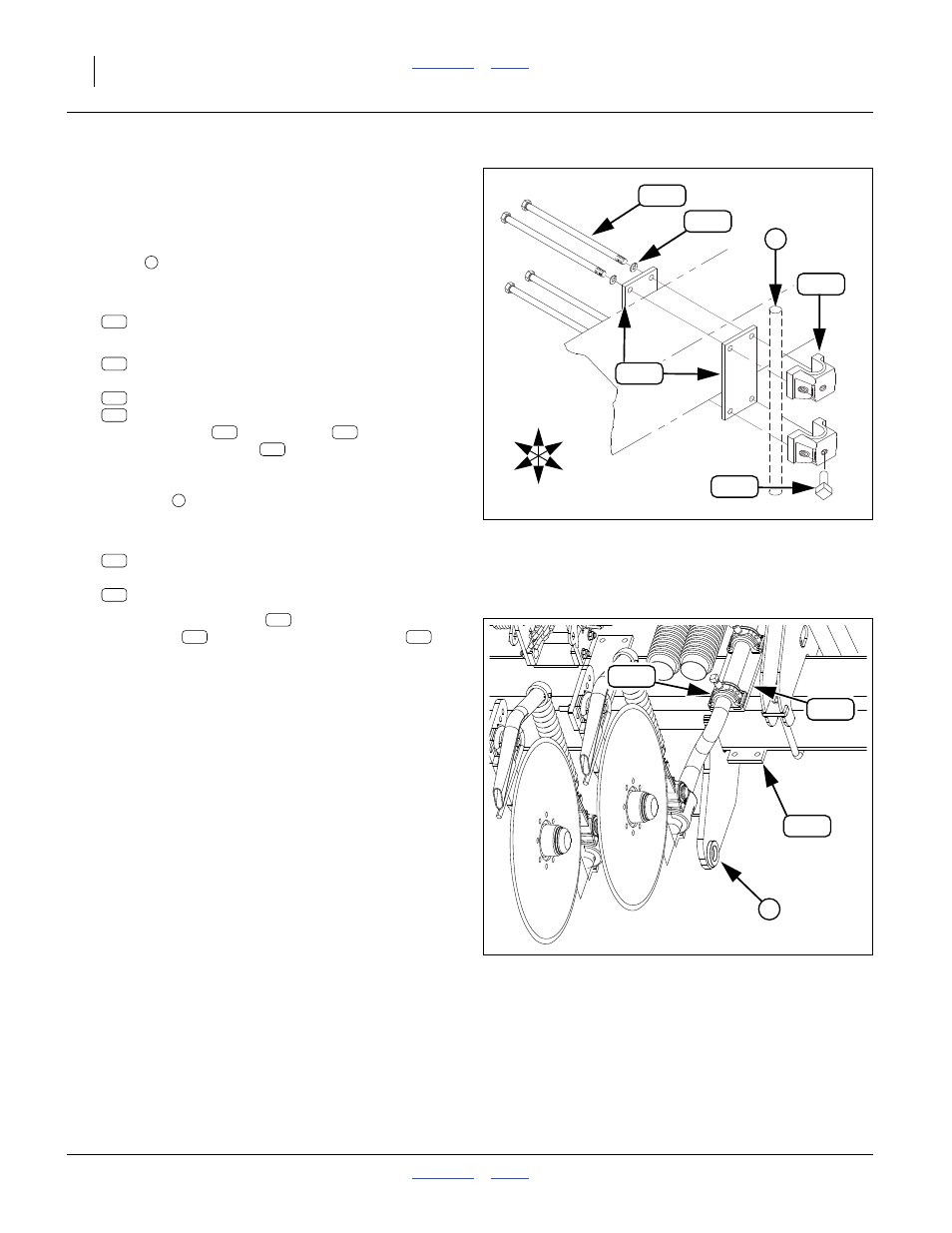

Figure 132
204-024K Rear Coulter Mount
32103
U
D
B
F
R
L
1
125
126
252
310
274
1
123
125
274
310
310 274
125
2
125
126
Null4: .
Figure 133
Rear Mount, From Below Right
Q0098
126
126
126
2
125
274 125
