Install Hopper Dividers
Refer to Figure 108
If dividers are already installed, continue at “Seal
Fertilizer Meters” on page 54.
243. Per the table above, select either three of:
407-662D 4 ROW FERT HOPPER DIVIDER
or six of:
407-663D 3-OUTLET DRY FERT HOP DIVIDER
Refer to Figure 109
244. At each hopper, position each divider
or )
so that it covers the area between the meter inlets.
With the mounting breaks (with bolt holes) flush
against the hopper sides, ensure the divider ends
are as flush as possible with the meter opening in
the hopper shell.
Mark the hole locations, using the divider bolts
holes as a template.
245. Drill 7 mm holes in the hopper shell at each marked
location.
246. Select 36 or 48 sets of:
802-001C HHCS 1/4-20X3/4 SS
803-187C NUT HEX WHIZ 1/4-20 18-8 SS
Secure the dividers to the hopper shells with
bolts
inserts from the inside and lock nuts
on the outside.
Null4:
Planter Model Dividers
YP625PD18TP110 407-662D
YP625TD12TR110 407-662D
YP625TD18TP110 407-662D
YP925TD0965 407-663D
Null4:

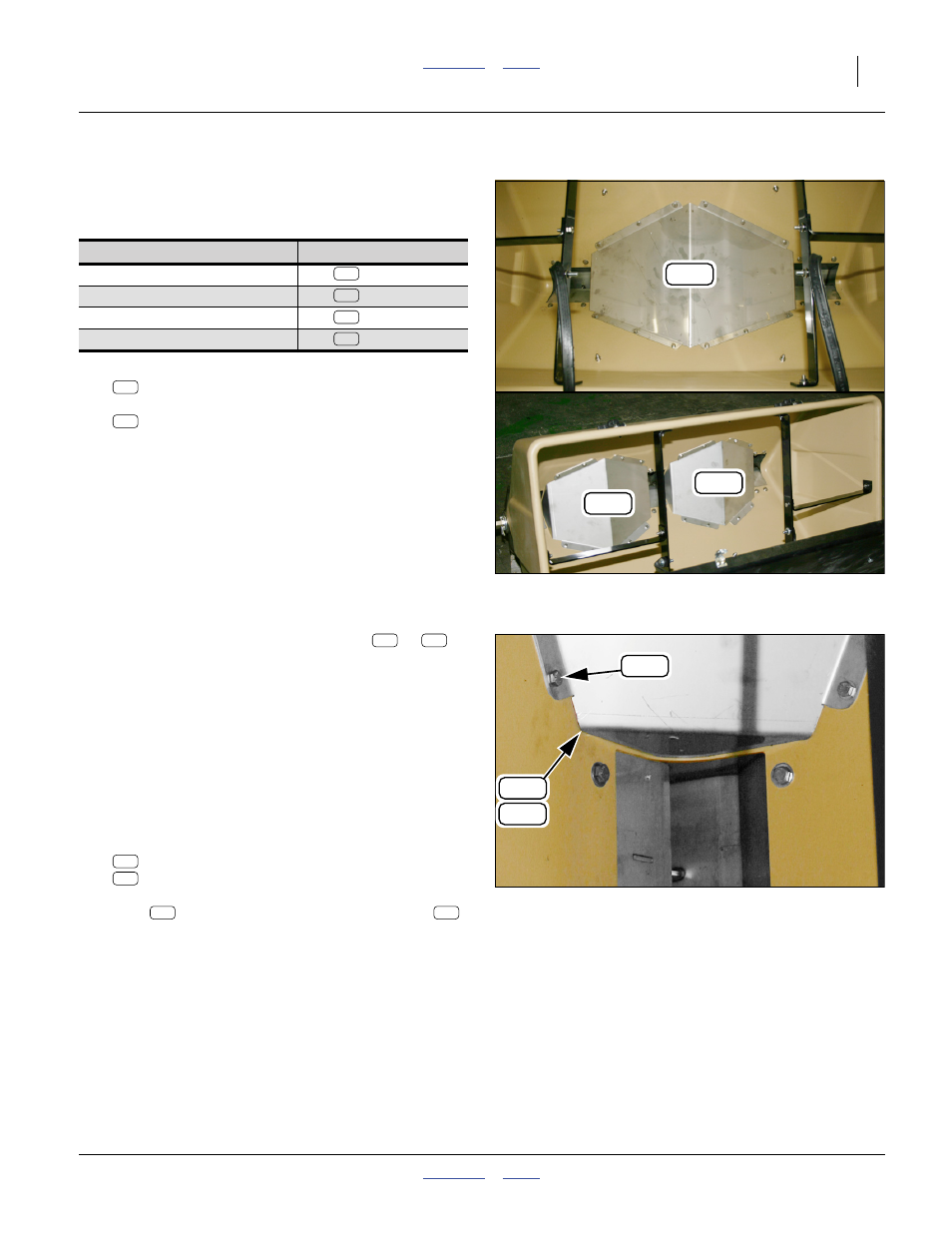

Figure 108
Hopper Dividers
Q0073
Q0074
231
232
232
231
231
231
232
231
232
Null4:
Figure 109
Hopper Divider Alignment
Q0075
231
232
