64 Great Plains Manufacturing, Inc. Contents Index YP625PD/TD/925TD
401-754Q Contents Index 07/05/2011
Install Coulters
Coulters mount to the front tool bar (on the front face,
except for center rows on 3-point triple-row).
Lateral mount placement, relative to rows, depends on
planter model and coulter kit.
Factory coulter stations layouts are provided on page 85
to page 97, and are set for “zone” application, with
coulters aligned either 5.1 cm off-row, or in the center of
the gap between outside and center or triple-row.
Install Special (204-245K) Mount
Applies to YP925TD0965 only. For other models,
continue at “Install Rear Face Mounts” on page 66.
Note: The rear plate ( , 204-372D) is abbreviated.
Three different bolt sizes are used. The longest
(
, 802-269C) relies on existing hopper support
structure rather than a rear plate.
204-245K Parts ID / Clamp Pre-Assembly
Refer to Figure 129
204-072D CLAMP SHANK 1 1/2 DIA
204-371D CLAMP PLT 7 CTR
204-372D CLAMP PLT 7 SINGLE
801-040C SCREW SQ HD 5/8-11 X 1 CUP PT
802-091C HHCS 1/2-13X1 1/2 GR5
802-269C HHCS 1/2-13X9 GR5
802-289C HHCS 1/2-13X8 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
804-016C WASHER FLAT 1/2 SAE PLT
288. Select one:
204-371D CLAMP PLT 7 CTR
and two sets:
204-072D CLAMP SHANK 1 1/2 DIA
802-091C HHCS 1/2-13X1 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
Place the lock washer on the bolt . Insert
the bolts through the plate , at the outer holes
on the edge with double holes. Thread loosely into
right (set screw) side of clamps
.
Planter Model
and Coulter Kits
Intended
Alignment
Left Rows Center Rows Right Rows
YP625PD18TP110
407-591A, 407-592A
12.7 cm off
triplet center
Rows 1 to 18 use 12 clamp kits 204-024K and
straight shank 204-013D, on tool bar front face
YP625TD12TR110
407-589A, 407-590A
5.1 cm
off row Rows 1 to 5 use 5
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
Rows 6 and 7 use 2
clamp kits 204-024K and
offset shank 204-254S,
on tool bar front face
Rows 8 to 12 use 5
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
YP625TD18TP110
407-571A, 407-572A
12.7 cm off
triplet center
Rows 1 to 6 use 2
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
Rows 7 to 12 use 2
clamp kit 204-024K and
offset shank 820-133C,
on tool bar rear face
Rows 13 to 18 use 2
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
YP925TD0965
407-573A, 407-574A
5.1 cm
off row Rows 1 to 4 use 4
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
Row 5 uses 1
shank 820-133C and
clamp kit 204-245K,
on tool bar front face
Rows 6 to 9 use 4
clamp kits 204-024K and
straight shank 204-013D,
on tool bar front face
Null4: .

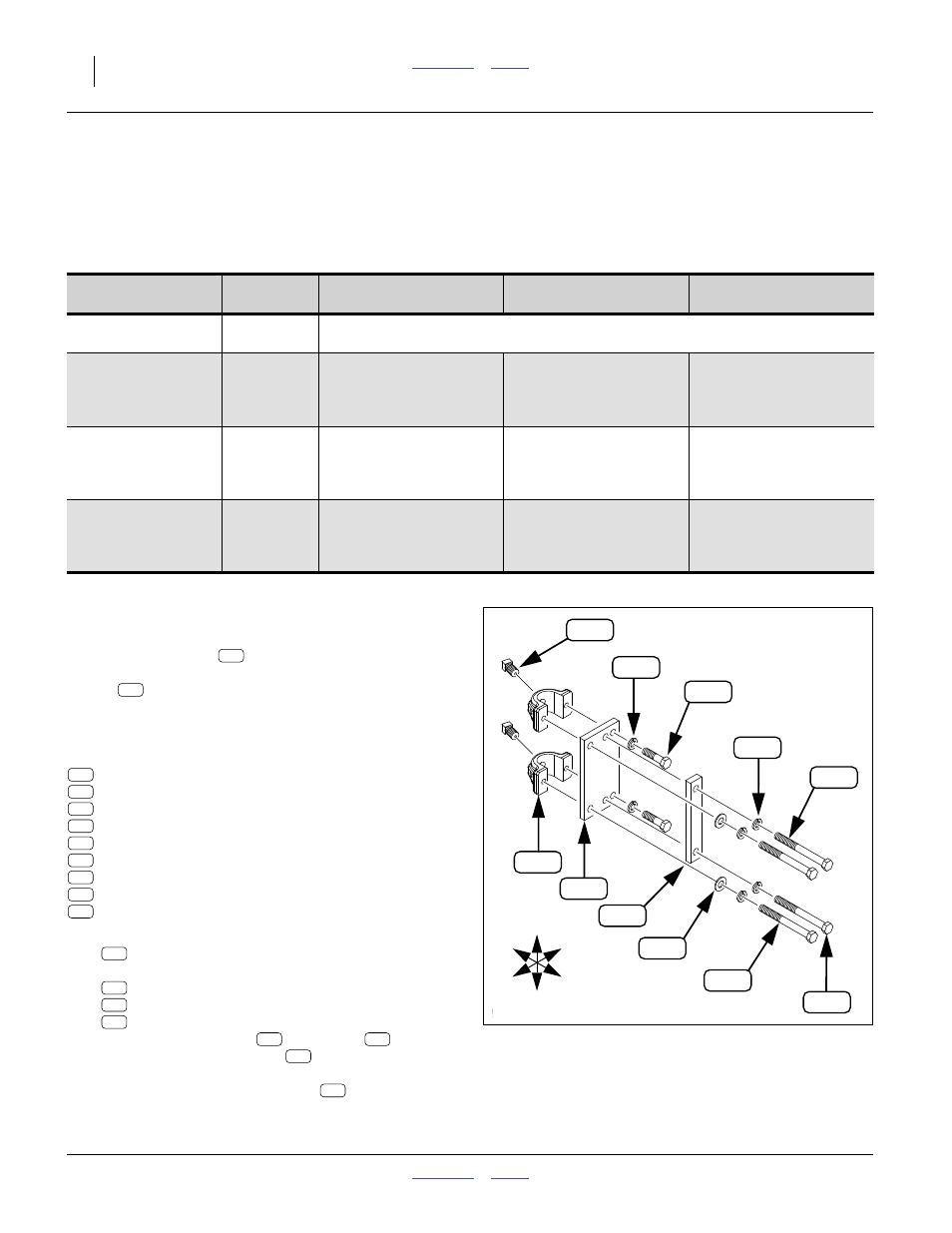

Figure 129
204-245K Coulter Mount
31825
310
252
126
136
266
137
311
310
274
276
276
U
D
L
R
B
F
137
274
126
136
137
252
266
274
276
310
311
136
126
266
310
310 266
136
126
