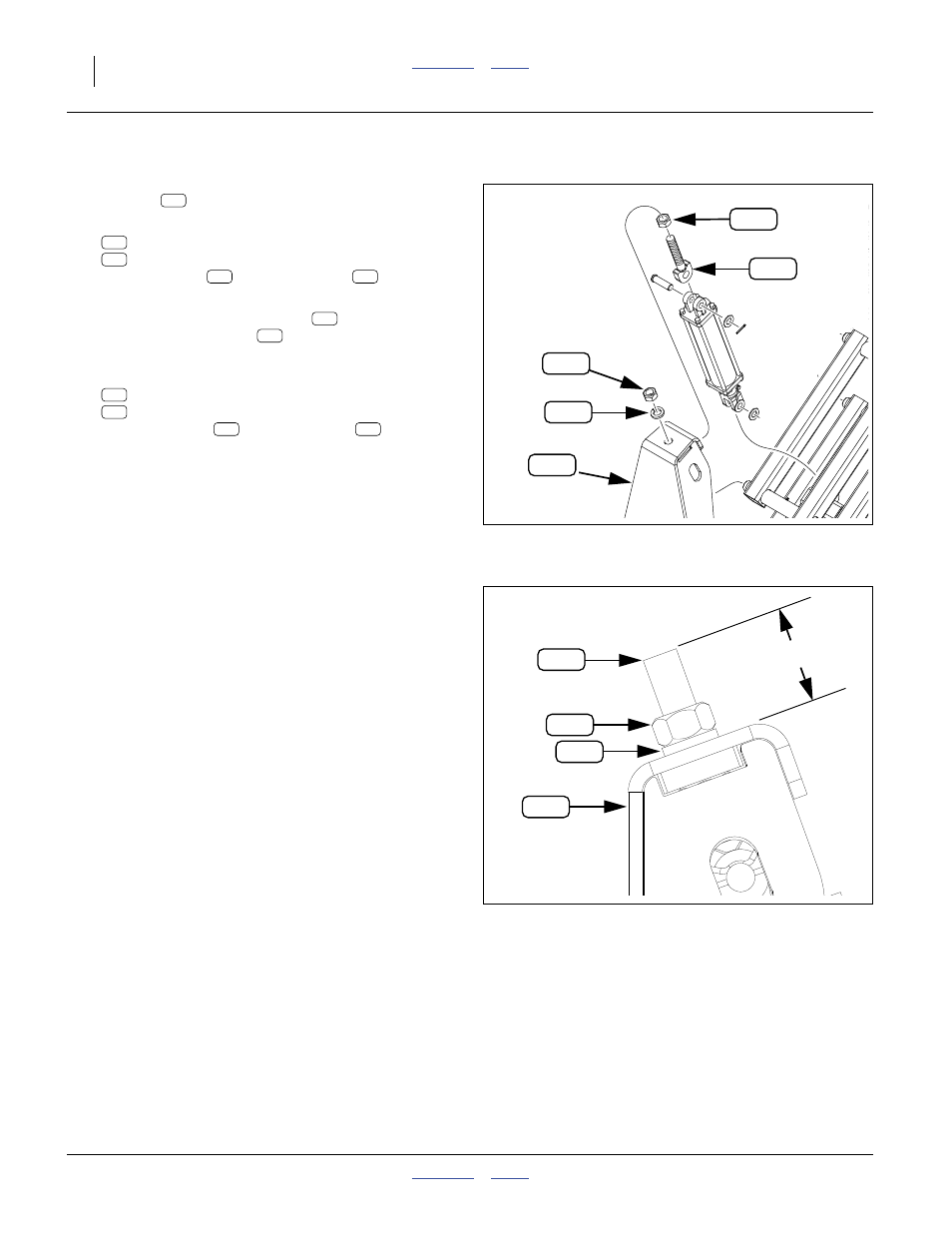

Install and Adjust Eyebolt
Refer to Figure 72 and Figure 73
If the eyebolt
is already installed, skip to step 151.
148. Select one each:
161-107H NTA35 WING EYEBOLT WELDMENT
803-034C NUT HEX 1 1/4-7 PLT
Thread the nut onto the eyebolt , leaving
10.2 cm (4.0 in) of exposed thread.
149. From below, insert the eyebolt into the top hold
of the lift-assist mount . Check that the reveal
(length of exposed eyebolt) is 7.0 cm (2.75 in).
150. Select one each:
804-030C WASHER LOCK 1 1/4 SPRING PLT
803-034C NUT HEX 1 1/4-7 PLT
Add the washer and second nut to the
eyebolt.
151. Re-check the reveal. Tighten to Grade 2 torque.
Null4:
anchor-only
Null4:
Figure 72
Lift Eyebolt
31797
155
317
293
117
293
117
117
293
293 117
117
155
317
293
317 293
Null4:
Figure 73
Initial Eyebolt Setting
32060
Null4: 7.0
cm (2.75
in)
155
317
293
117
