CAMERA PINOUTS
Camera pinouts are provided in the following paragraphs.
8-PIN MINI DIN CONNECTOR
Pin Number Control Pin Number Control
1 RTS 5 RXD
2 CTS 6 TXD
3 TXD 7 not used
4 GND 8 not used
DB-9 CONNECTOR
Pin Number Control Pin Number Control
1 CD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
Pin 1 RTS
Pin 2 CTS
Pin 3 TXD
Pin 4 GND
Pin 5 RXD
Pin 6 TXD not used
Pin 7 Not used
Pin 8 Not used
Pin 2 CTS
Pin 1 RTS
Pin 5 RXD
Pin 4 GND
Pin 3 TXD
Pin 6 GND not used
Pin 7 Not used
Pin 8 Not used
8 Pin Mini DIN 8 Pin Mini DIN

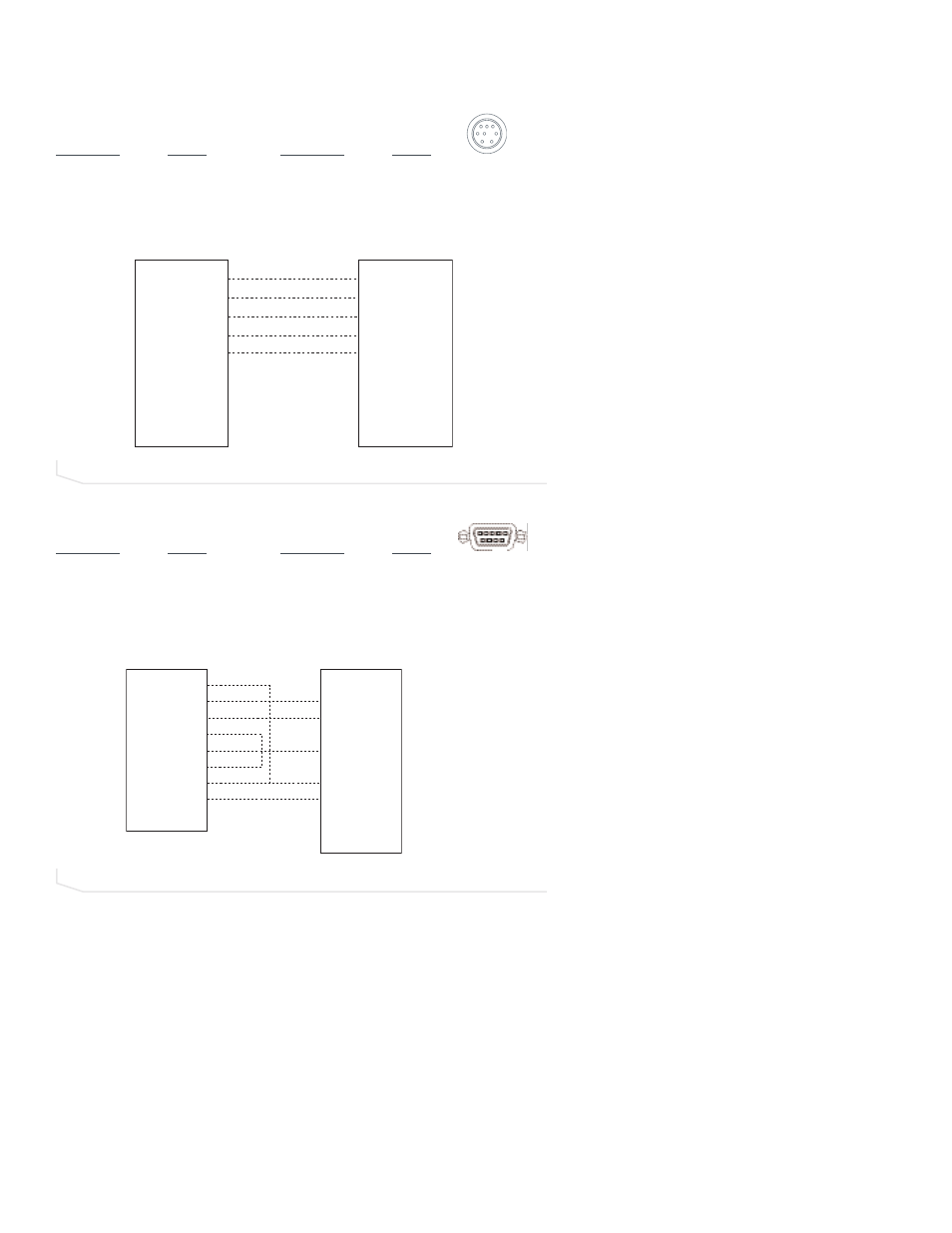

FIGURE 6.2 8-pin mini DIN connector pinouts
Pin 1 CD
Pin 2 RXD
Pin 3 TXD
Pin 4 DTR
Pin 5 GND
Pin 6 DSR
Pin 7 RTS
Pin 8 CTS
Pin 9 RI
Pin 2 CTS
Pin 3 TXD
Pin 5 RXD
Pin 4 GND
Pin 2 CTS
Pin 1 RTS
Pin 6 GND Not used
Pin 7 Not used
Pin 8 Not used
8 Pin Mini DIN DB-9
FIGURE 6.3 DB-9 connector pinouts
