RAV-Ware Software Configuration 47
To set camera presets
1. Select the Camera C Control M Mode,
either Sony or Canon.
2. Select which camera you are pro-
gramming from the Camera list.
3. Select the Camera D Delay. Camera
delay is the amount of time the
microphone must be activated before
the camera moves to the preset
position and amount of time the
microphone must be inactive before
returning to the home position.
ClearOne recommends setting the
camera delay to at least two seconds
to prevent the camera from changing
positions at every sound.
4. Using the directional arrow buttons and the Zoom IIn and Out buttons, position the
camera for the first microphone.
5. Click Save P Preset under the microphone to assign the camera position to the mic.
6. Repeat steps 1-5 for the remaining camera positions.
7. Select Voice TTracking S System E Enabled.
> Note: Once you set the presets, do not switch Camera Control Mode (the camera
type). This will delete all presets.
8. Click Close to save the settings.
To test camera presets
1. Deselect Voice TTracking S System E Enabled.
2. Select the camera you are testing.
3. Click Run P Preset for each mic to test the programming. The camera moves to the
preset position for each microphone.
4. Select Voice TTracking S System E Enabled.

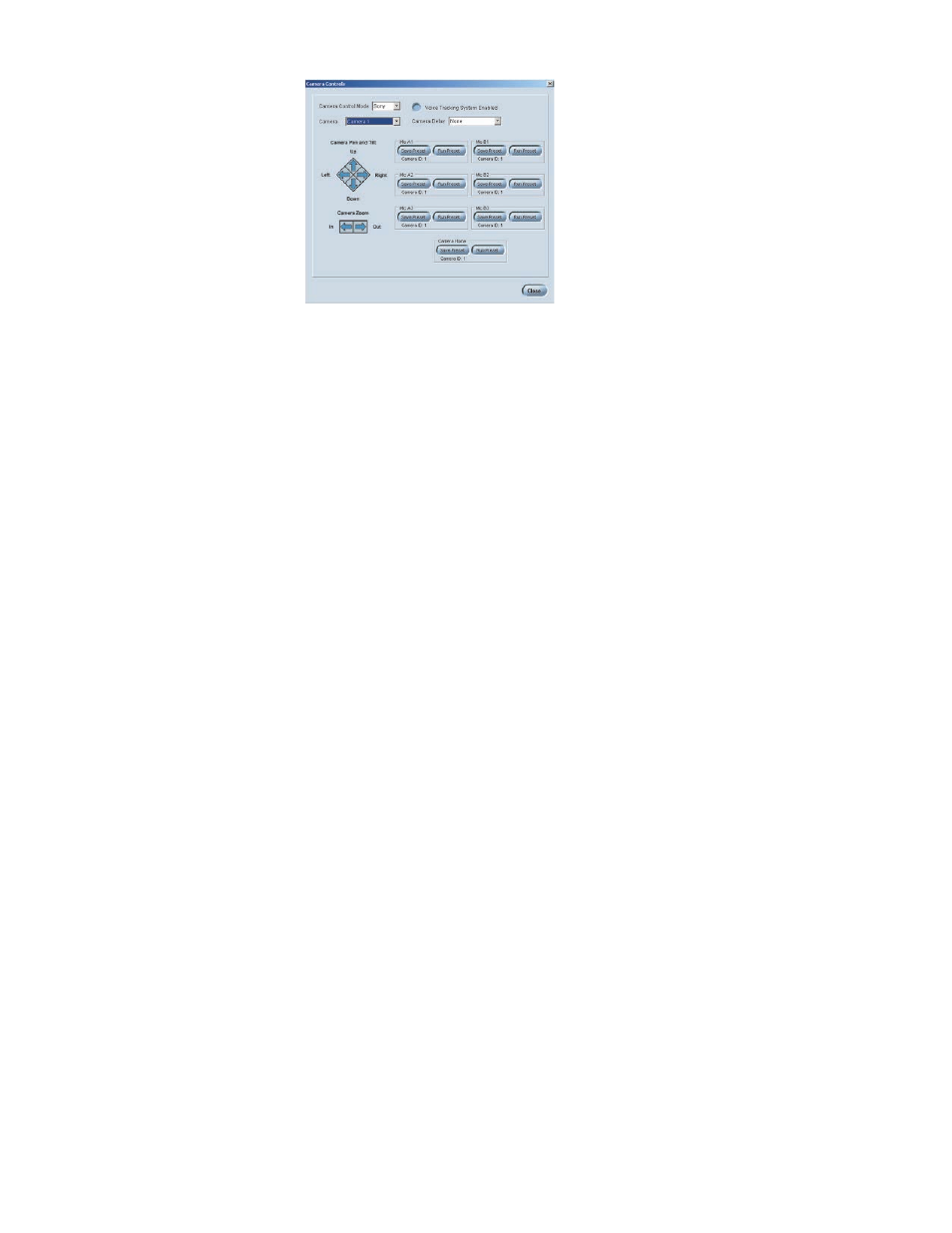

(Converge 560 shown)
