RAV-Ware Software Configuration 41
EFFECTS OF USING AN EXTERNAL AMPLIFIER
If you connect an external amplifier to the Converge unit on either the Line Out jack or the
Record Out jack, the mixer console options change.
• If you place an external amplifier on the Line Output, the options to route any audio
to the loudspeakers and to route the microphones to the Line Output are no longer
available.
• If you place an external amplifier on Record, the options to route any audio to the
loudspeakers and to route the microphones to the Record output are no longer
available.
See page 18 for information on connecting an amplifier.
MICROPHONE CONFIGURATIONS
The Converge breakout box icon has connections for three sets of microphones, A1-A3,
B1-B3, and C1-C3 (Converge 590 only). You can configure these microphones through
RAV-Ware. You can use microphones that have preconfigured settings from the Device
Toolbox or you can manually set up the microphones using the Add Device feature of the
Device Toolbox (see page 54).
PRECONFIGURED MICROPHONES
The settings for many common microphones have been pre-configured for optimal
performance with the Converge system. Preconfigured devices are listed in the Device
Toolbox and can be dragged and dropped onto any of the microphone labels.
To select a preconfigured microphone

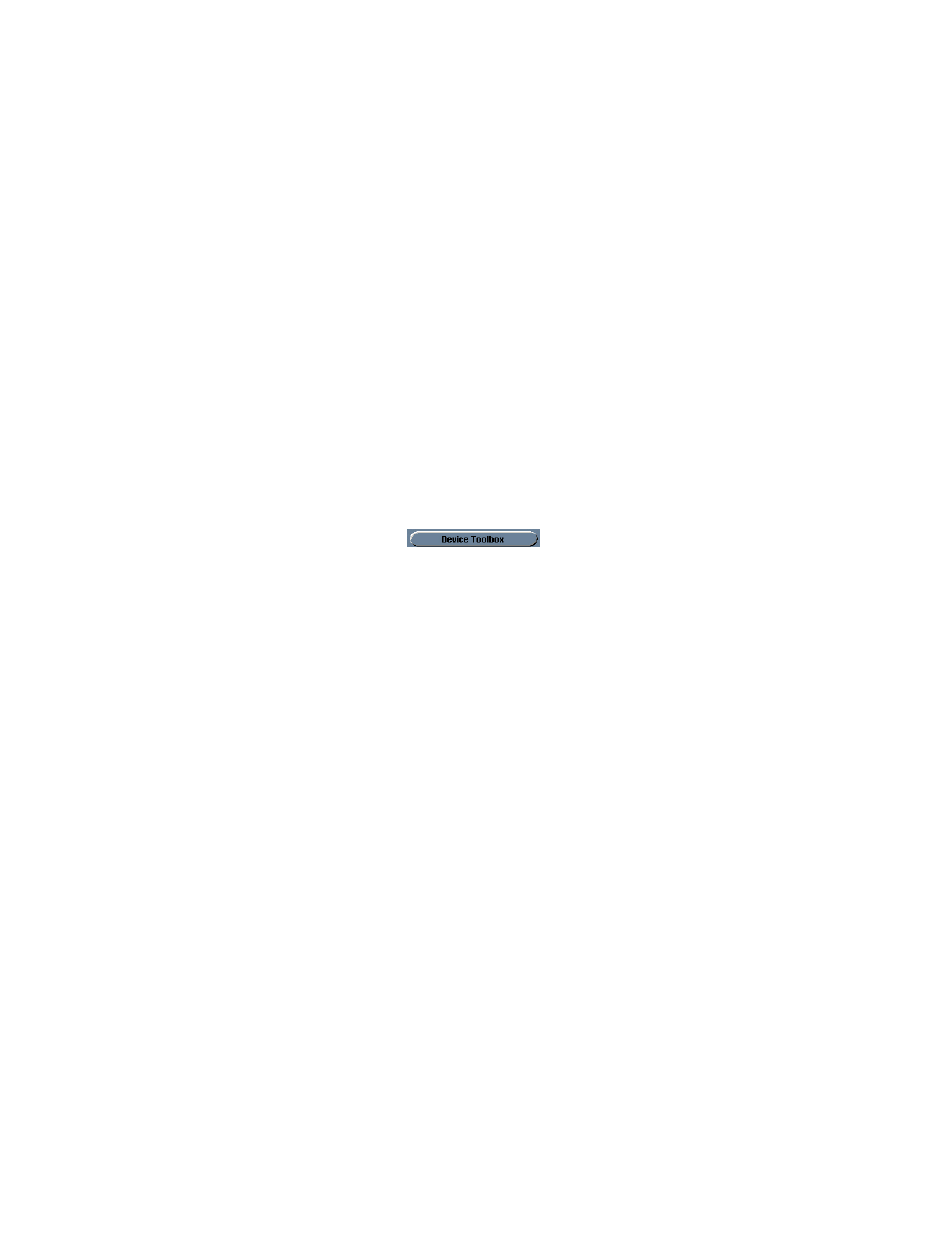

1. Click the Device TToolbox button to display preconfigured
devices.
2. Click the plus sign (+) to expand the microphone category.
3. Click the microphone name and drag it to the Configuration screen. Drop over the
Microphone label. The label will change based on the selected microphone.
