RAV-Ware Software Configuration 45

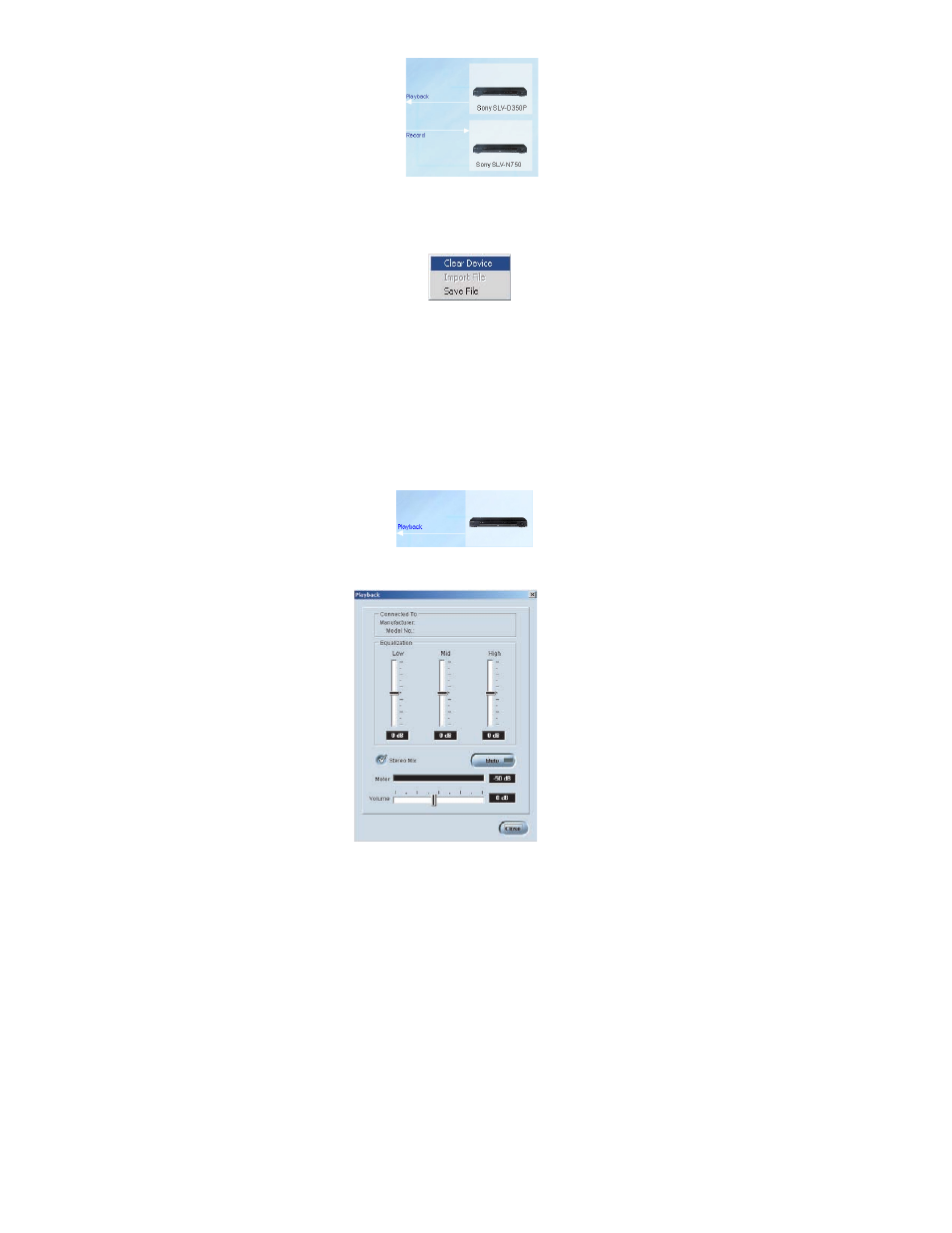

3. Click the device name and drag it to the Configuration
screen. Drop over the Record or Playback icon. The
label and icon will change based on the selected
device.
> Note: You are not limited to record and playback
devices with these connectors. The Record and
Playback jacks are line input and line output jacks and
can be connected to video codecs, CD players and
amplifiers.
To remove a device
1. Right-click on the device you want to remove.
2. Select Clear D Device.
ADJUSTING RECORD/PLAYBACK SETTINGS
If your device is not listed in the Device Toolbox you can manually customize and config-
ure the audio of your auxiliary devices. The Record settings window is used to customize
and configure audio being sent to recording devices that are connected to the record jack
on the RAV mixer. The Playback settings window is used to customize and configure the
audio from the playback device that is connected to the Playback jack on the Converge
mixer.
To open Playback Settings
1. Open the Playback configuration window by clicking
on the Playback device icon. The Playback window
appears.
To adjust Playback Equalization
1. Adjust the the Low, Mid and High frequency
tones using the Equalization sliders.
To enable Playback Stereo Mix
While the Converge provides mono-only audio, it
will accept left and right audio from a stereo
device. However, you must select Stereo Mix to
ensure proper level adjustments are made.
1. Select Stereo M Mix if your playback device
uses stereo inputs (default in on).
To enable Playback Mute
1. Click the Mute button. The Mute
indicator will turn red when Mute is enabled.
