14 Technical Services: 800.283.5936
3. Connect the second and third microphone breakout boxes using the 18” Cat. 5
cables. (Third breakout box on the Converge 590 only).
4. Connect the microphones to the breakout boxes, as desired.
5. Connect the speakers to the mixer.
> Note: For best performance, speakers must be installed properly. Refer to the
manufacturer’s instructions included with your loudspeakers.
Mixer
MIC POD IN
RECORD / PLAYBACK
L
R
IN L +
L -
R +
R -
SPEAKER
IN OUT
LINE
12VDC 2.5A
+ - !
MIC 1 MIC 2 MIC 3
IN
OUT
Breakout Box #1
MIC 1 MIC 2 MIC 3
IN
OUT
MIC 1 MIC
IN
OUT
Breakout Box #3 Breakout Box #2
60’

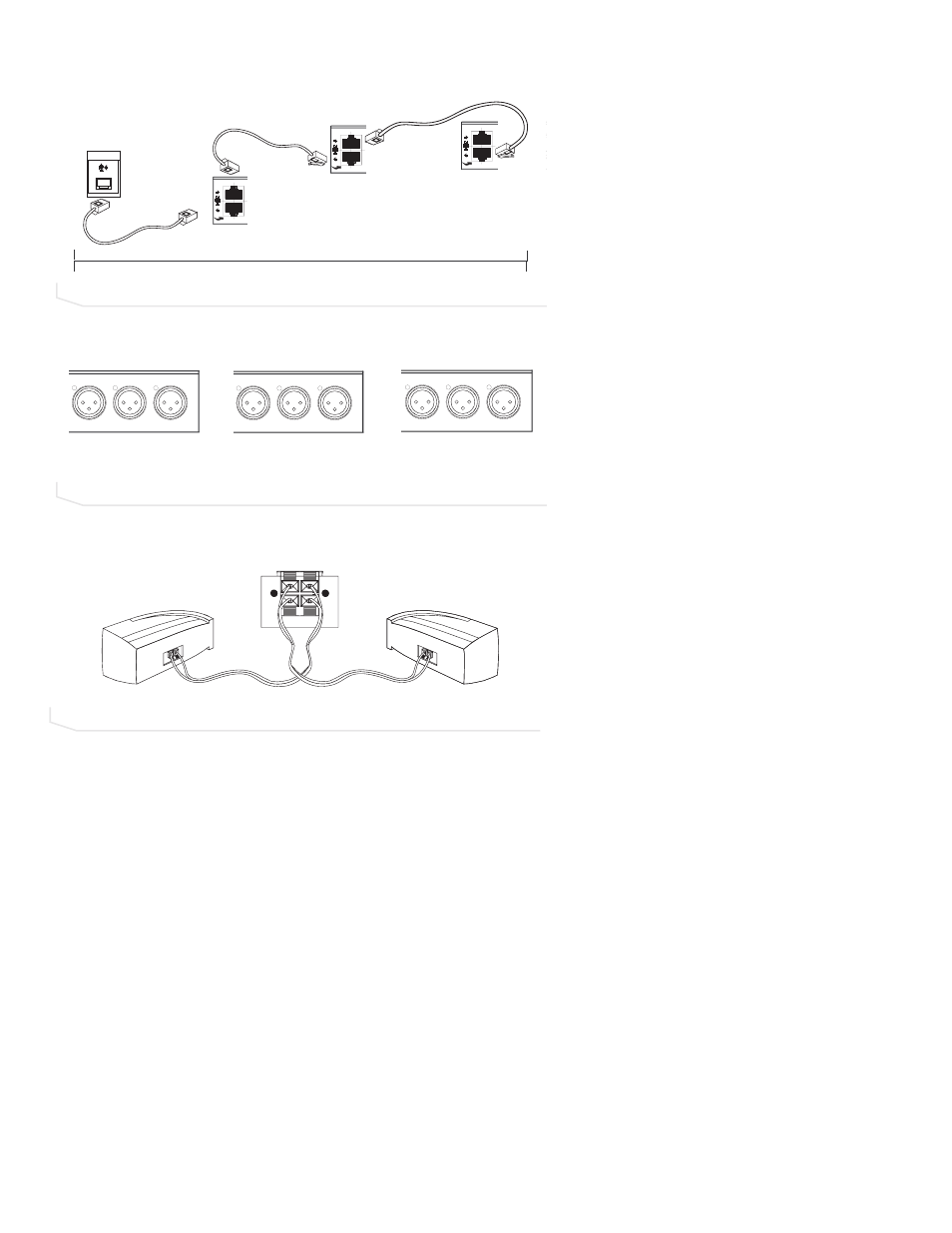

FIGURE 2.3 Connect additional microphone breakout boxes
Breakout Box #1
(Microphones A1-A3) Breakout Box #3
(Microphones C1-C3) Breakout Box #2
(Microphones B1-B3)
MIC 1 MIC 2 MIC 3
IN
OUT MIC 1 MIC 2 MIC 3
IN
OUT MIC 1 MIC 2 MIC 3
FIGURE 2.4 Connect microphones
L +
L -
R +
R -
SPEAKER
FIGURE 2.5 Connect speakers
