Connecting the Converge 17
11. If using the RF controller, insert four AAA batteries into the battery compartment in the
bottom of the unit.
AUXILIARY DEVICES
The mixer allows connection to a number of different audio and video peripherals, such as
video codecs, VCRs, cameras and computers.
CONNECTING VIDEO CODECS, AMPLIFIERS, AND SOUND CARDS
Line input/output devices such as video codecs, amplifiers and sound cards can be con-
nected to the Line In or Line Out connectors on the Converge mixer. These connectors
provide mono-audio.
To connect a video codec
1. Using an RCA cable, connect the Line IIn on the Converge mixer to the line out on a
video codec.
2. Using an RCA cable, connect the Line O Out on the Converge mixer to the line in on a
video codec.
Batteries
Back of Controller

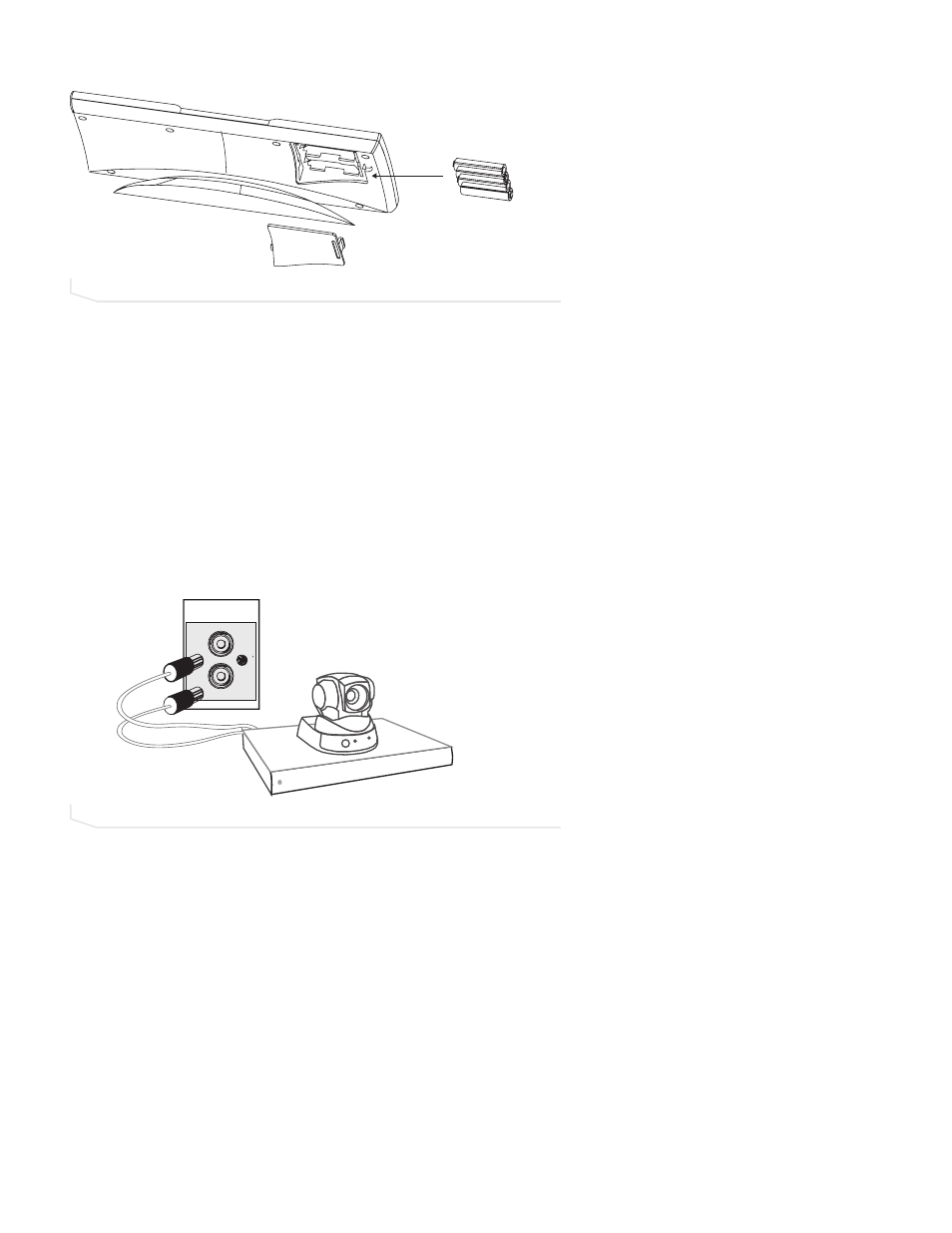

FIGURE 2.12 Insert batteries
IN
OUT
LINE
FIGURE 2.13 Connecting a Line In/Out device
