Connecting the Converge 15
6. Using the RJ-11 cable, connect an analog telephone jack to the Line jack on the
mixer.
> Note: For instructions on connecting to a digital phone line, refer to page 20.
7. Using an RJ-11 cable (not supplied), connect an analog telephone set to the Set jack
on the mixer (optional).
8. Using the 7' Cat. 5 cable, connect the mixer to the network. (Network settings can be
changed in RAV-Ware.)
CAMERA
CONTROL LAN RS-232
TELEPHONE
SET LINE

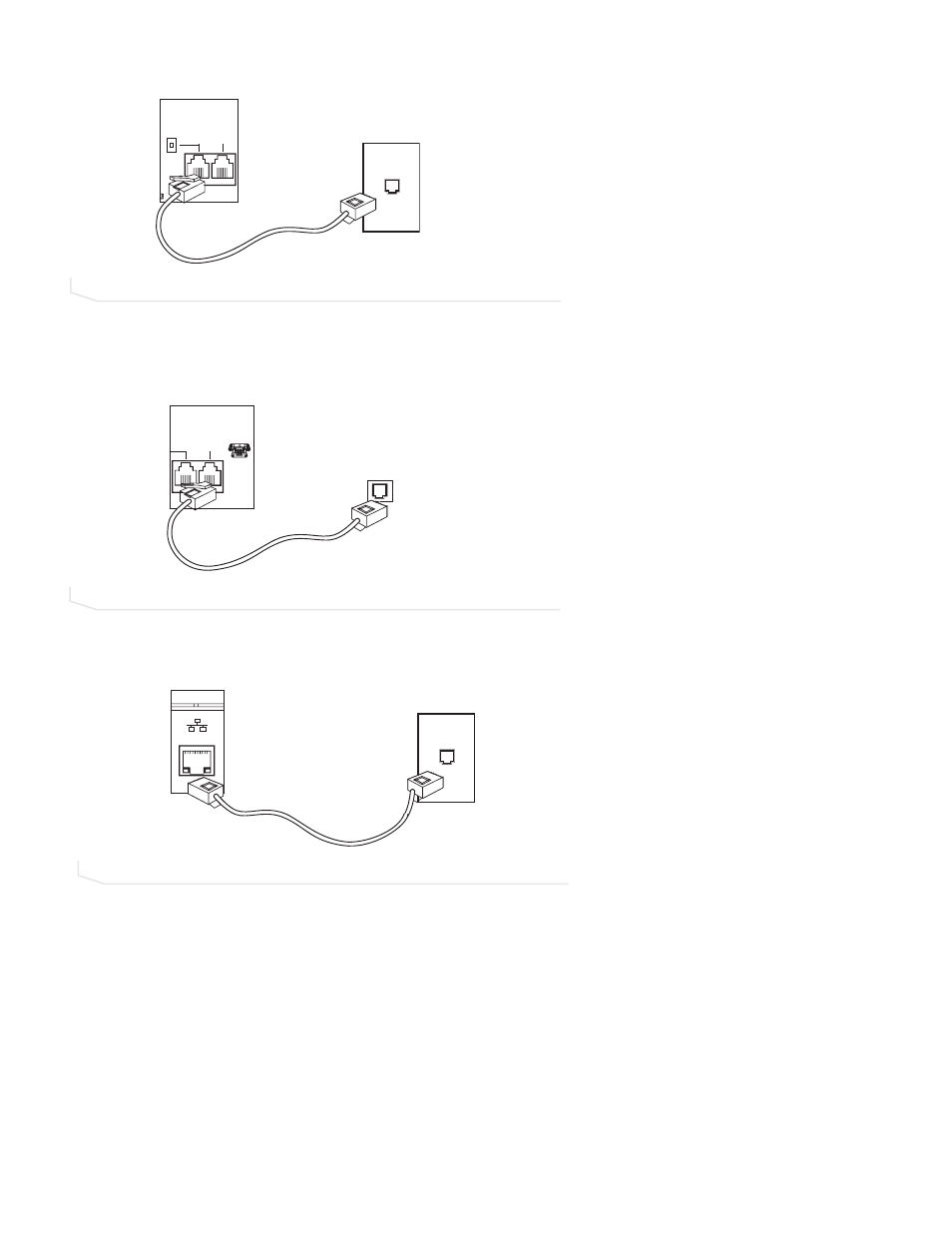

FIGURE 2.6 Connect telephone cable
CAMERA
CONTROL RS-232
TELEPHONE
SET Connection on
analog handset
FIGURE 2.7 Connection to analog handset
MIC POD IN
RECORD / PLAYBACK
L
R
L
R
IN
OUT
IN OUT
CAMERA
CONTROL LAN RS-232
SET
FIGURE 2.8 Connection to network
