RAV-Ware Software Configuration 35
To enable Speech Lift
Speech lift enables the microphone channel to be reinforced to the loudspeaker output
channel.
1. Click the Speech LLift button. The indicator will turn green when speech lift is enabled.
To adjust Speech level
Speech level sets the attenuation level for the amplifier output of the selected
microphone.
1. Using the slider, adjust the speech lift level to the desired setting between -18dB and
0dB.
To set Filter
The Filter button allows you to set up to three PEQ filters for the microphone channel.
1. Click the Filter button. A pop-up window (see figure 3.8) appears for the selected
microphone channel. The filter is displayed in Filter Graph view.

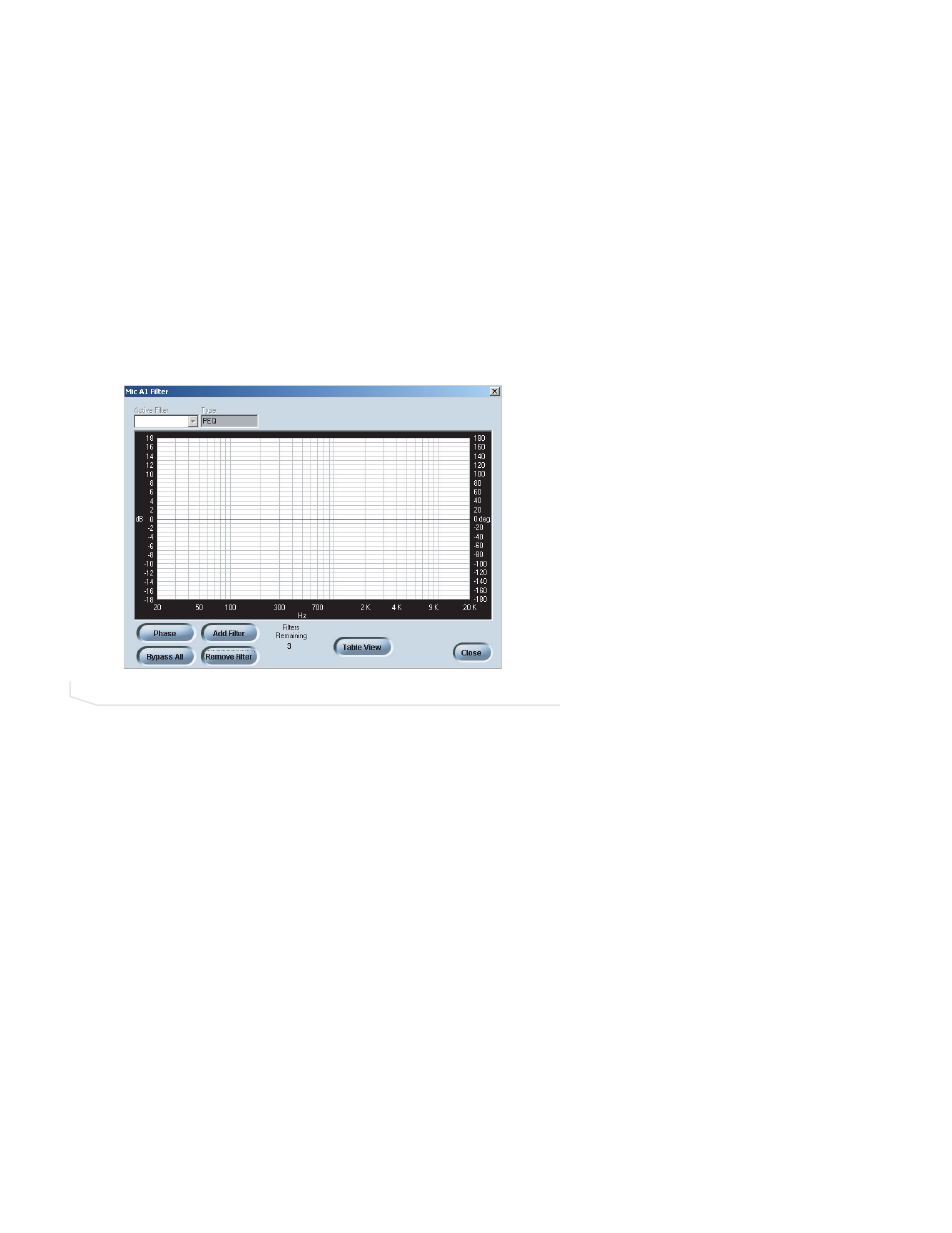

FIGURE 3.8 Microphone filter (filter graph view)
